Crane operation
11.3 Crane operation with main boom
Operating manual GMK 6400 3 112 993 en 11 - 79
12.07.2013
Manual
telescoping
To telescope manually, you must initiate all locking and unlocking proc-
esses. The locking and unlocking processes are carried out automatically.
The following sections describe the operating procedures:
– Checking the initial position,
– Unlocking the telescoping cylinder;
à p. 11 - 81,
– Moving the telescoping cylinder (without telescopic section);
à p. 11 - 84,
– Locking telescoping cylinder;
à p. 11 - 85,
– Unlocking telescopic section;
à p. 11 - 86,,
– Telescoping the telescopic section;
à p. 11 - 88,
– Locking the telescopic section;
à p. 11 - 89,
H
The operating order depends on the current initial position. For an overview
of a telescoping process (example);
à p. 11 - 69.
H
The lengths given in the following illustrations are purely sample values,
and may differ from the current display.
Checking the
initial position
Before telescoping, you must check the following statuses:
– The current telescoping
– The position of the telescoping cylinder
– The position of the locking pins

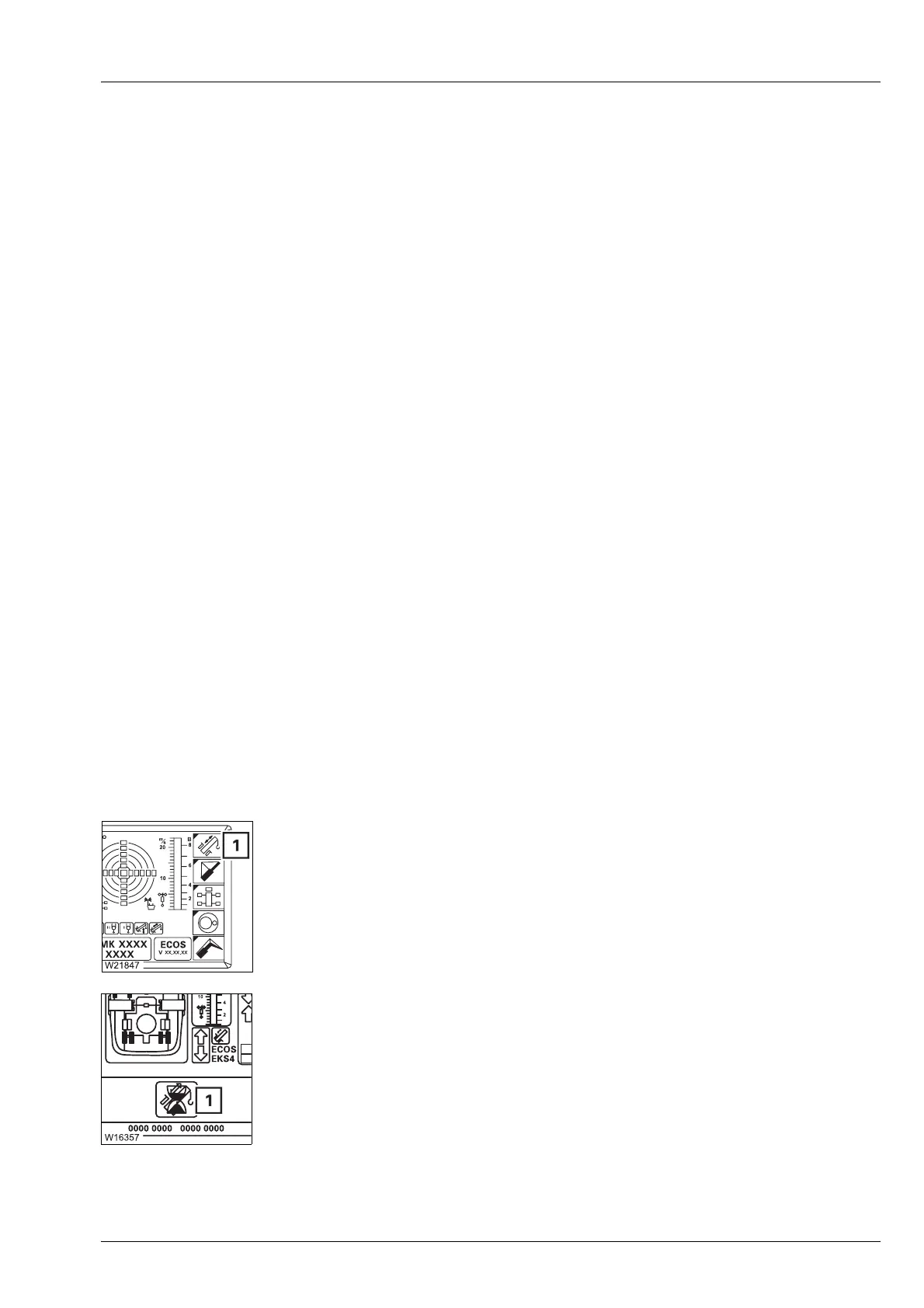

• If necessary, open the main menu ö and press (1) button once.
The
Telescoping submenu opens.
If an "error" (1) is indicated, all operating elements will be disabled;
à Telescoping mechanism error messages, p. 14 - 17.
