Crane operation
11.3 Crane operation with main boom
Operating manual GMK 6400 3 112 993 en 11 - 91
12.07.2013
Telescoping with
teleautomation
When telescoping with teleautomation, you enter the desired fixed lengths
and then move the control lever in the required direction. Switching
between the telescopic sections is carried out automatically by ECOS.
H
If the desired telescoping status is not a fixed length, you can first telescope
to the next closest fixed length with the teleautomation and then telescope
further to the desired length manually.
• Switch the telescoping mechanism on and open the Telescoping submenu;
à p. 11 - 76.

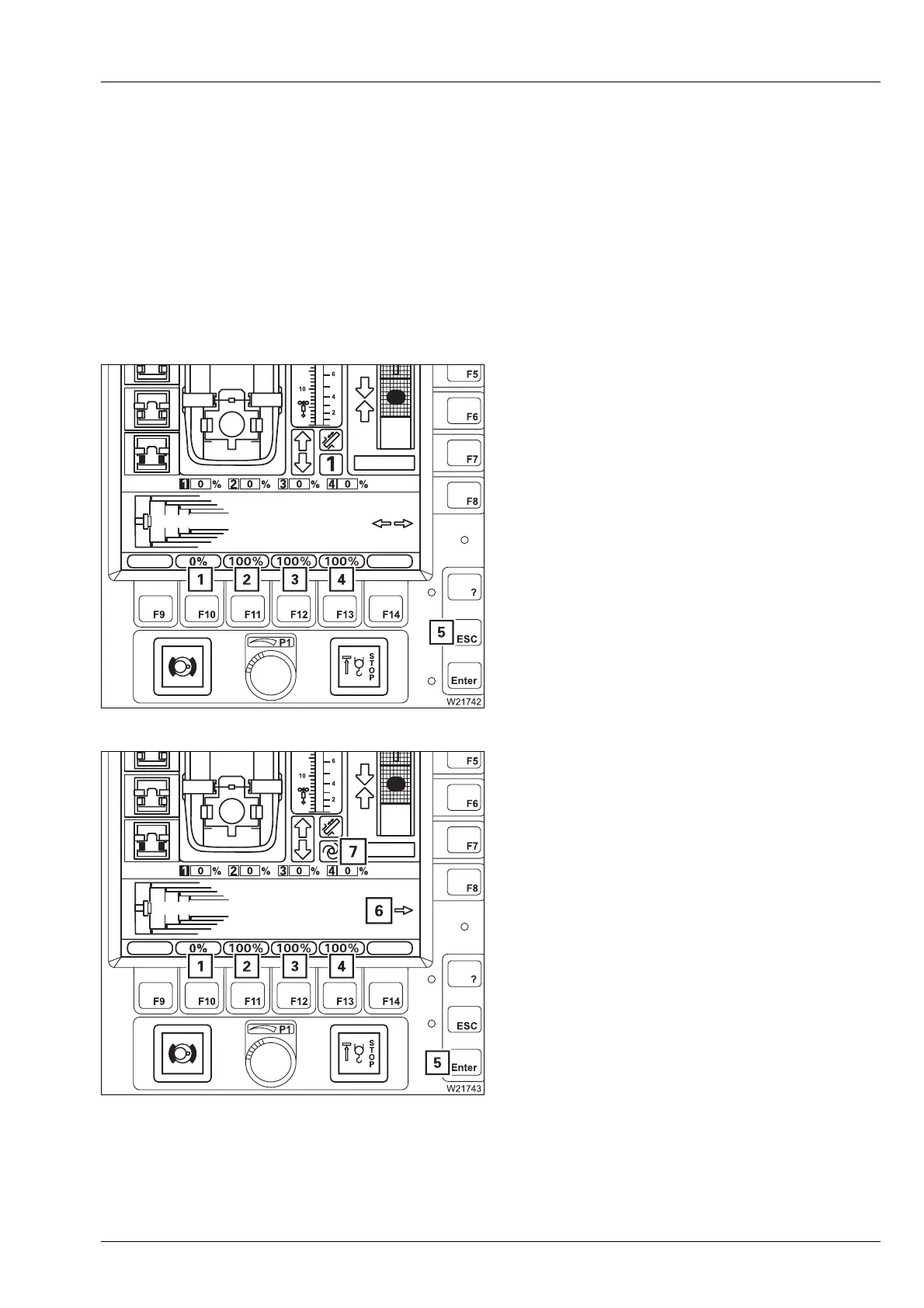

Display
(1) to (4) – desired telescope status = objective
of teleautomation:
– Red values: Teleautomation off
– No values: Teleautomation disabled
Telescope status input
• Press one of the buttons (1) to (4)
Values are yellow – input on.
To cancel input – press button (5) once.
• Enter the telescope status using buttons (1)
to (4), e.g. 0%, 100%, 100%, 100%.
Confirming the entry
• Press the (5) button once:
–Values (1) to (4) are red – telescoping not
permissible – teleautomation off,
–Values (1) are (4) are green – display of sym-
bol (7) – teleautomation on.
Telescoping
• Move the control lever for the displayed tel-
escope direction (6), e.g. for extending.
s
