Crane operation
11.3 Crane operation with main boom
11 - 92 3 112 993 en Operating manual GMK 6400
12.07.2013

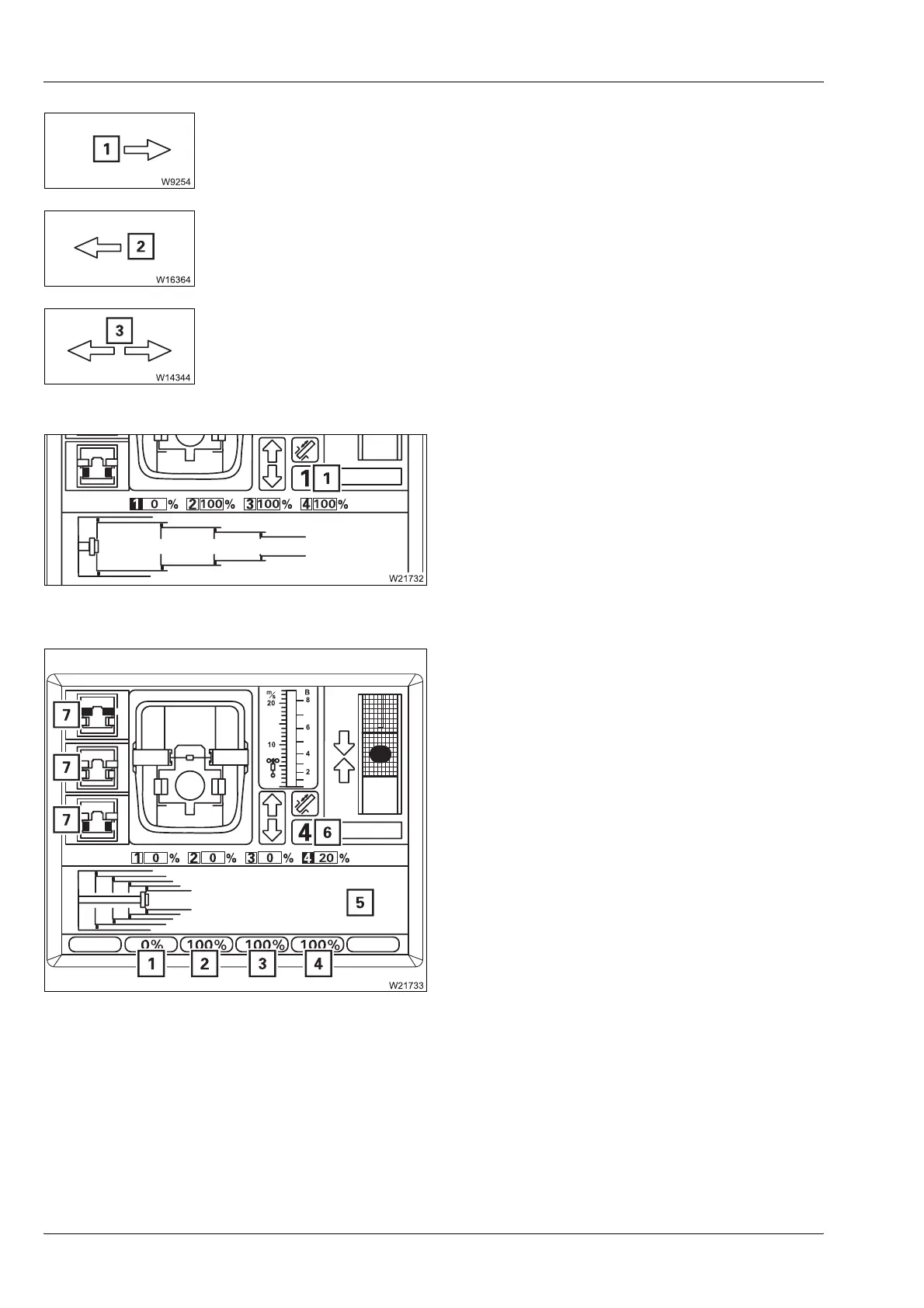

– The displayed symbol, e.g. symbol (1) will flash if the control lever is
moved incorrectly.
– If the control lever movement is correct, ECOS telescopes automatically
till a change in direction is required. Then the symbol for the new move-
ment will be displayed, e.g. (2) for
Retracting.
– In the case of empty trips of the telescoping cylinder (without telescopic
section), symbol (3) is displayed.
Ending teleautomation
The teleautomation will stop when the entered
telescope status is reached.
• Move the control lever to its initial position.
Display (1) – teleautomation off.
Cancelling teleautomation
• Press button (7) once.
Telescoping stop – teleautomation off:
–Values (1) to (4) are red,
– Display (5) goes out,
– Display (6) – teleautomation off.
