Crane operation
11.5 Working range limiter
Operating manual GMK 6400 3 112 993 en 11 - 121
12.07.2013

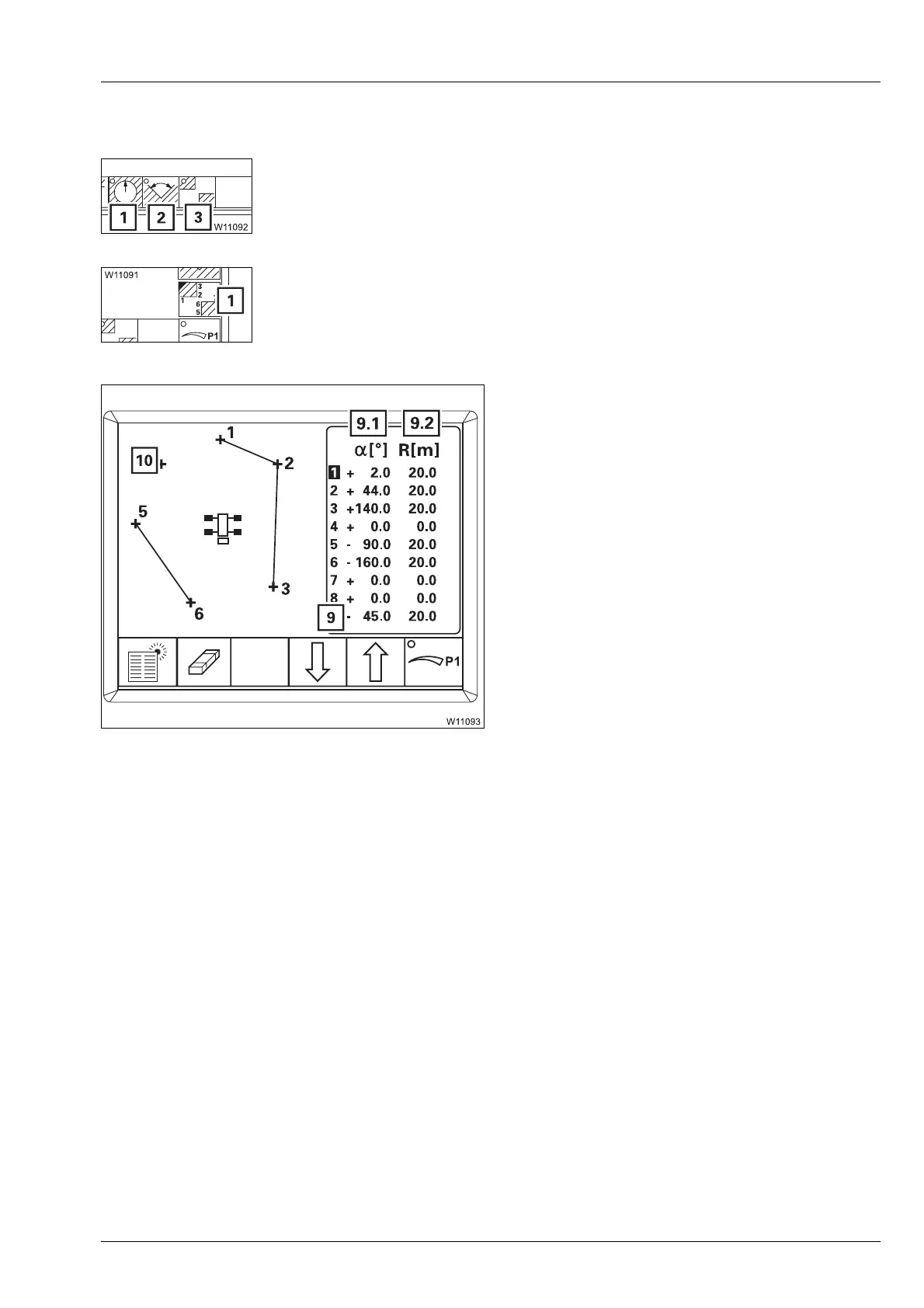

Entering objects Objects are entered in a submenu.
Before entering values, the monitoring functions (1) to (3) must be switched
off – dot is black;
à p. 11 - 126.
• Press the (1) button once.
The
Enter objects submenu will open
Representation of points and objects
Each point shown is numbered and defined by
the point data
slewing angle (9.1) and working
radius
(9.2) – red.
An object is made up of points that are con-
nected by lines, e.g. the points 1 to 3 and the
points 5 and 6.
The cross (10) and the point data (9) show the
current position of the main boom – blue.
H
Only those points are displayed that are located within the entered, maxi-
mum working radius. You may need to enlarge the maximum working
radius in order to display the point;
à p. 11 - 124.
s
