Crane operation
11.5 Working range limiter
11 - 122 3 112 993 en Operating manual GMK 6400
12.07.2013

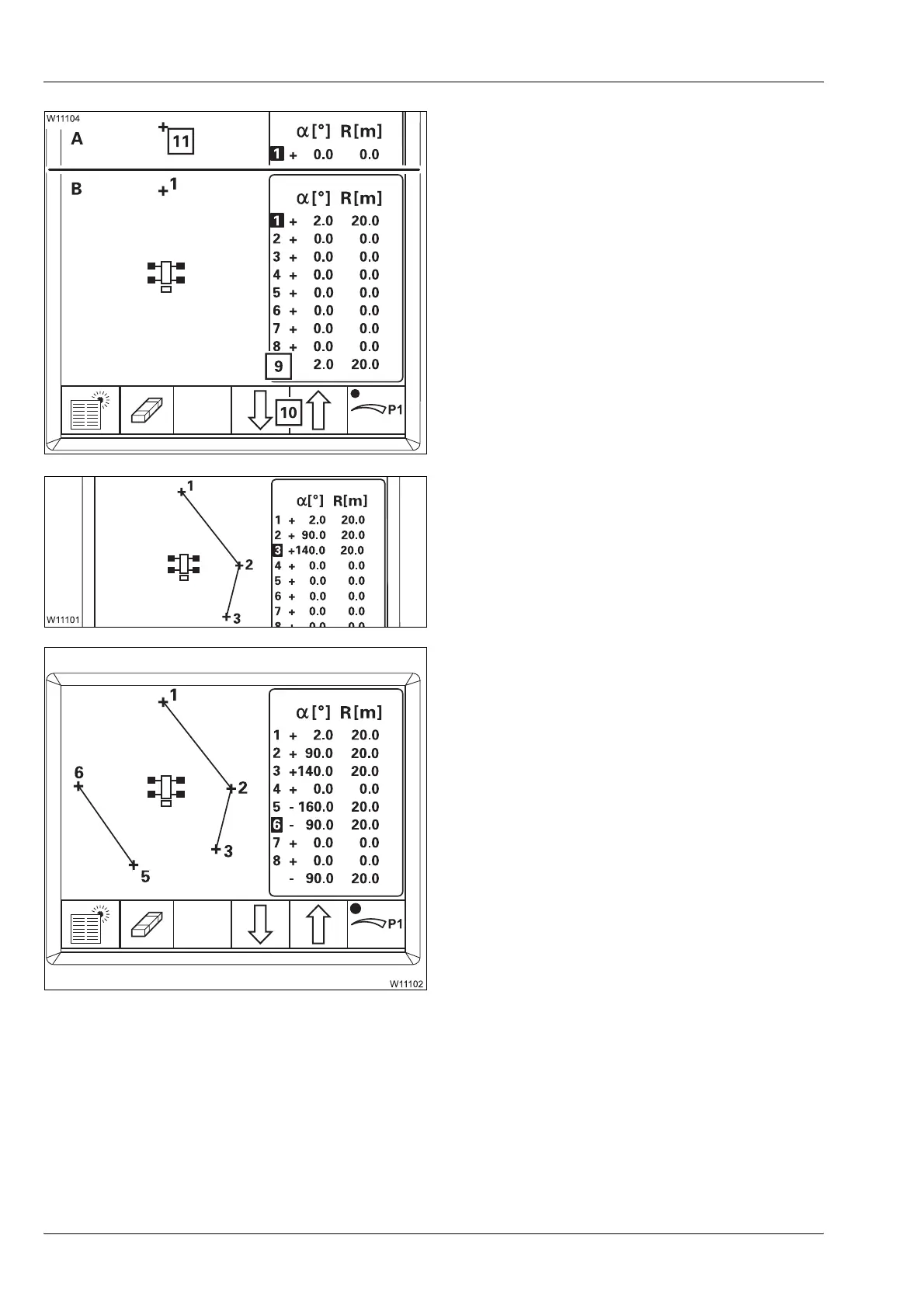

Entering objects
• (A) – With the buttons (10), select the first
point, e.g. point (1) – blue
• Move the main boom head (11) to just
before the first point of the object
• (B) – Press button Ö once
– The point (1) will be displayed
– The current point data (9) will be accepted
for point (1), e.g. 2° and 20 m
The first point has now been entered.
• Enter the next point (2) in the same manner,
e.g. +90° and 20 m
The point is connected with point (1) – an
object has been entered.
To enlarge the object, you can enter subse-
quent points 3 to 8, e.g. point (3).
You can also add objects:
• Delete the subsequent point, e.g. point (4) –
point data 0.0;
à p. 11 - 123
• Enter the next point, e.g. point (5) at –160°
and 20 m
This point (5) will be the first point for the new
object. The following point will be added to
this object, e.g. point (6).
