Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 35
12.07.2013

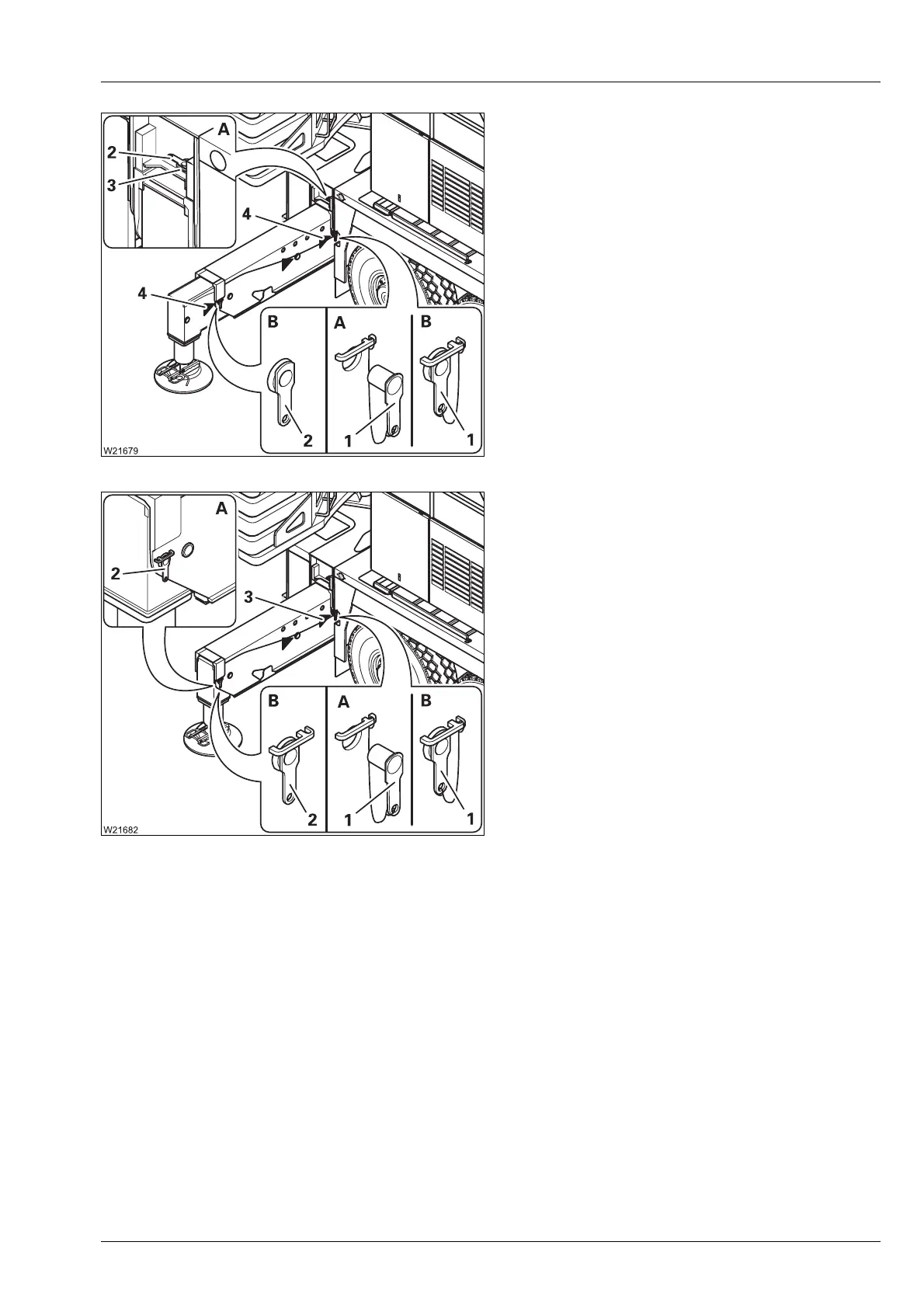

Outrigger span 8.70 x 7.40 m (28.5 x 24.3 ft)
(A) – Requirements
– Pin (1) is removed
– Pin (2) inserted in holder (3)
(B) – Setting and securing
• Extend the outrigger beam up to the mark-
ing (4).
• Secure the outrigger beam with the pin (1)
and (2).
• Set the outrigger span on the other outrig-
ger beam in the same way.
Outrigger span 8.70 x 6.30 m (28.5 x 20.4 ft)
(A) – Requirements
– Pin (1) is removed
– Pin (2) is inserted
(B) – Setting and securing
• Extend the outrigger beam up to the mark-
ing (3).
• Secure the outrigger beam with the pin (1).
• Pin (2) remains inserted.
• Set the outrigger span on the other outrig-
ger beam in the same way.
