Rigging work
12.6 Outriggers
12 - 38 3 112 993 en Operating manual GMK 6400
12.07.2013
From the control
units
If the hand-held control is connected, the Outrigger operating units are inac-
tive.
Starting the engine
• Remove the hand-held control if necessary, and start the engine from the
driver's cab;
à p. 4 - 16.
You can also start the engine from the control units;
à p. 12 - 27.
Switching on the lighting
Only the lamp (1) lights up after opening the
door.
• Press any button.
The lights are switched on.
Moving the supports
H
You can only operate the outrigger beams to the left and right of the oper-
ating unit on the operator's side.
• Observe the safety instructions for operating the outrigger beams;
à p. 12 - 37.

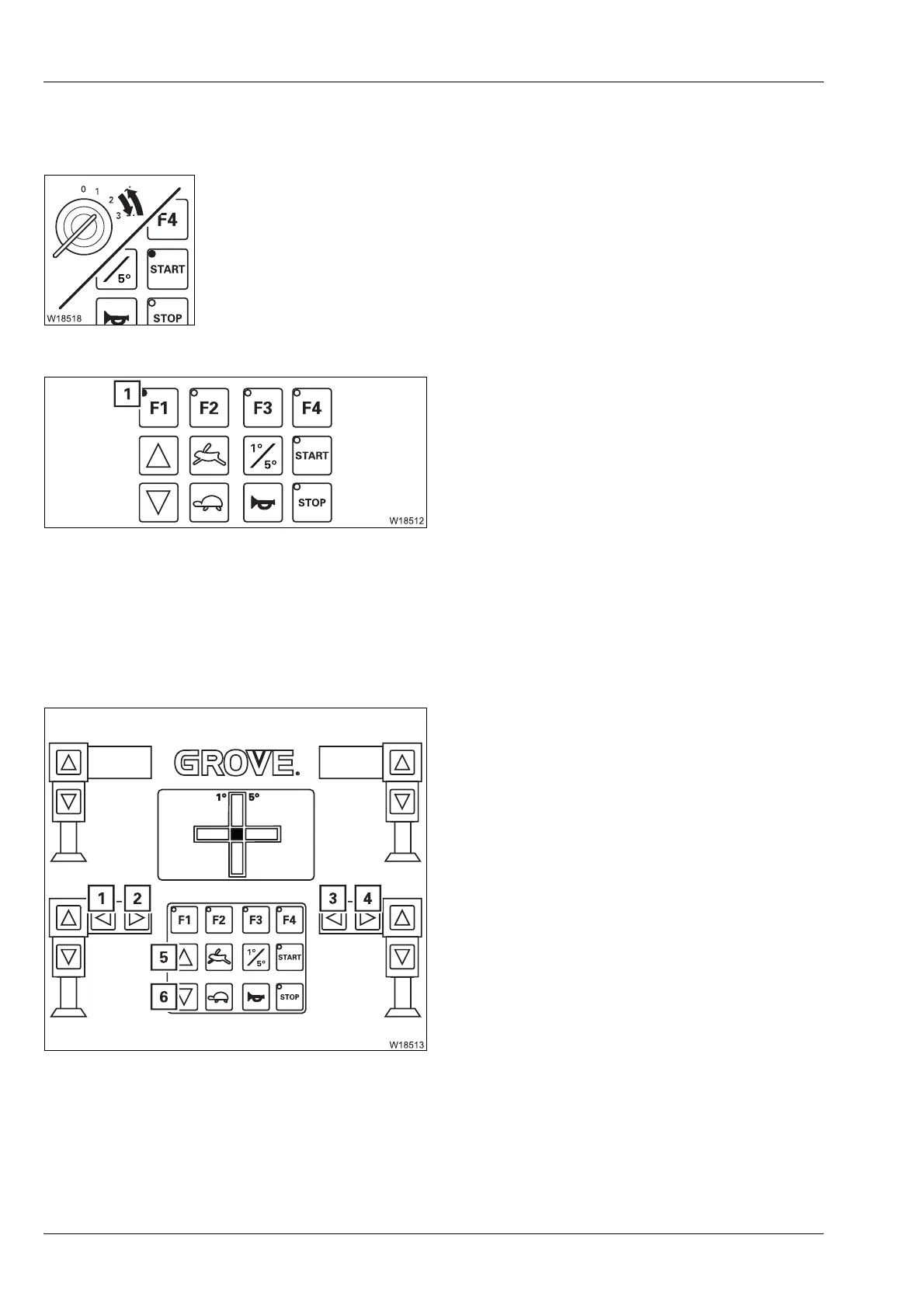

• Press the button:
• Additionally press the button for the desired
outrigger beam:
The outrigger beams move until you let go of the respective button or until
the respective end position has been reached.
5 For high-speed mode
6 For normal speed
1 Extend left
2 Retract left
3 Retract right
4 Extend right
1 + 4 Extend both
2 + 3 Retract both
