Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 39
12.07.2013
With the hand-
held control
The hand-held control needs to be connected to the carrier.

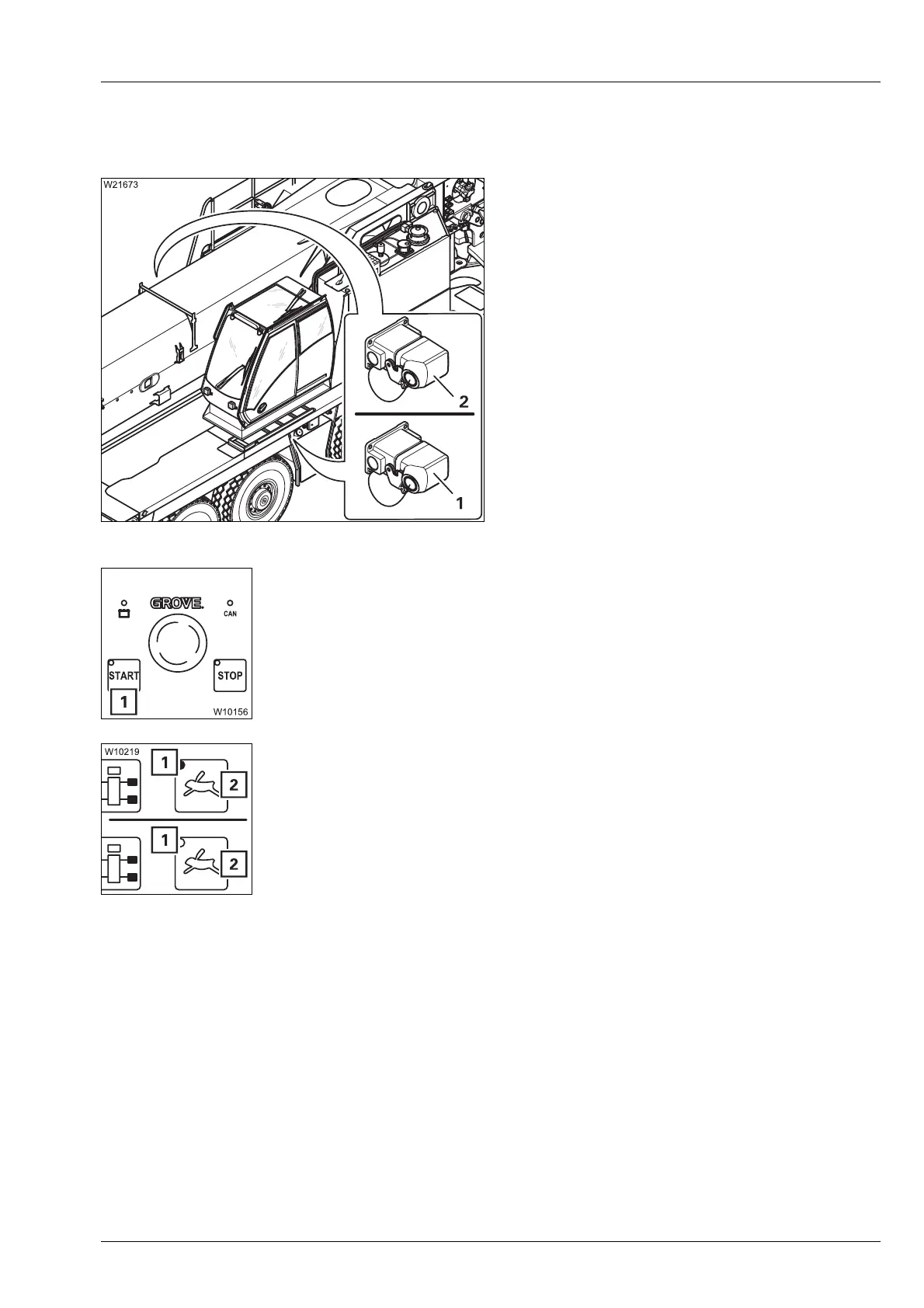

• Connect the hand-held control to the
required socket (1) or (2):
Information on connecting;
à Connecting the
hand-held control
, p. 12 - 22.
Starting the engine
• Press the button (1) – the engine starts; à p. 10 - 15.
Pre-selecting high-speed mode/normal speed
• Press the (2) button.
– Lamp (1) lights up – high-speed mode pre-selected
– Lamp (1) goes out – normal speed pre-selected
s
1 For the right-hand outrigger beam
2 For the left-hand outrigger beam
