Rigging work
12.6 Outriggers
12 - 46 3 112 993 en Operating manual GMK 6400
12.07.2013
From the control
units
If the hand-held control is connected, the Outrigger operating units are inac-
tive.
Starting the engine
• Disconnect the hand-held control, if necessary, and start the engine
either:
– From the driver's cab;
à p. 4 - 16
or
– From the control units; p. 12 - 27
Moving the supporting cylinders

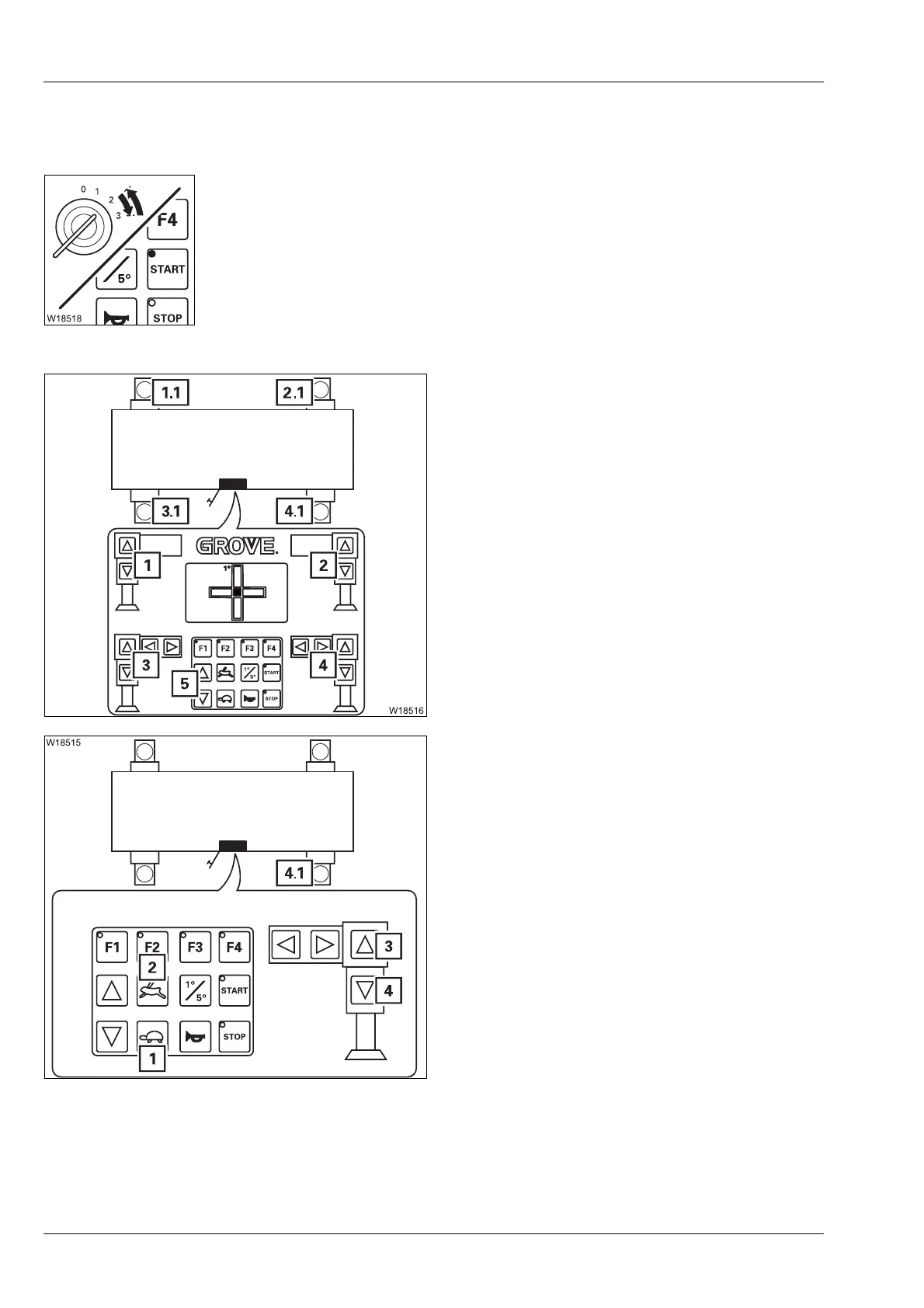

Assignment of buttons:
• Observe the safety instructions for operat-
ing the supporting cylinders;
à p. 12 - 45.
The operation is the same for all supporting
cylinders.
• Press the button
• Also press the button for the desired sup-
porting cylinder, e.g. for 4.1
You can also operate several supporting cylin-
ders at the same time.
The outrigger cylinders move until you let go of the respective button or
until the respective end position has been reached.
1 Supporting cylinder 1.1
2 Supporting cylinder 2.1
3 Supporting cylinder 3.1
4 Supporting cylinder 4.1
5 All supporting cylinders (1.1) to (4.1)
1 For normal speed
2 For high-speed mode
3 For retracting
4 For extending
