Rigging work
12.6 Outriggers
12 - 54 3 112 993 en Operating manual GMK 6400
12.07.2013

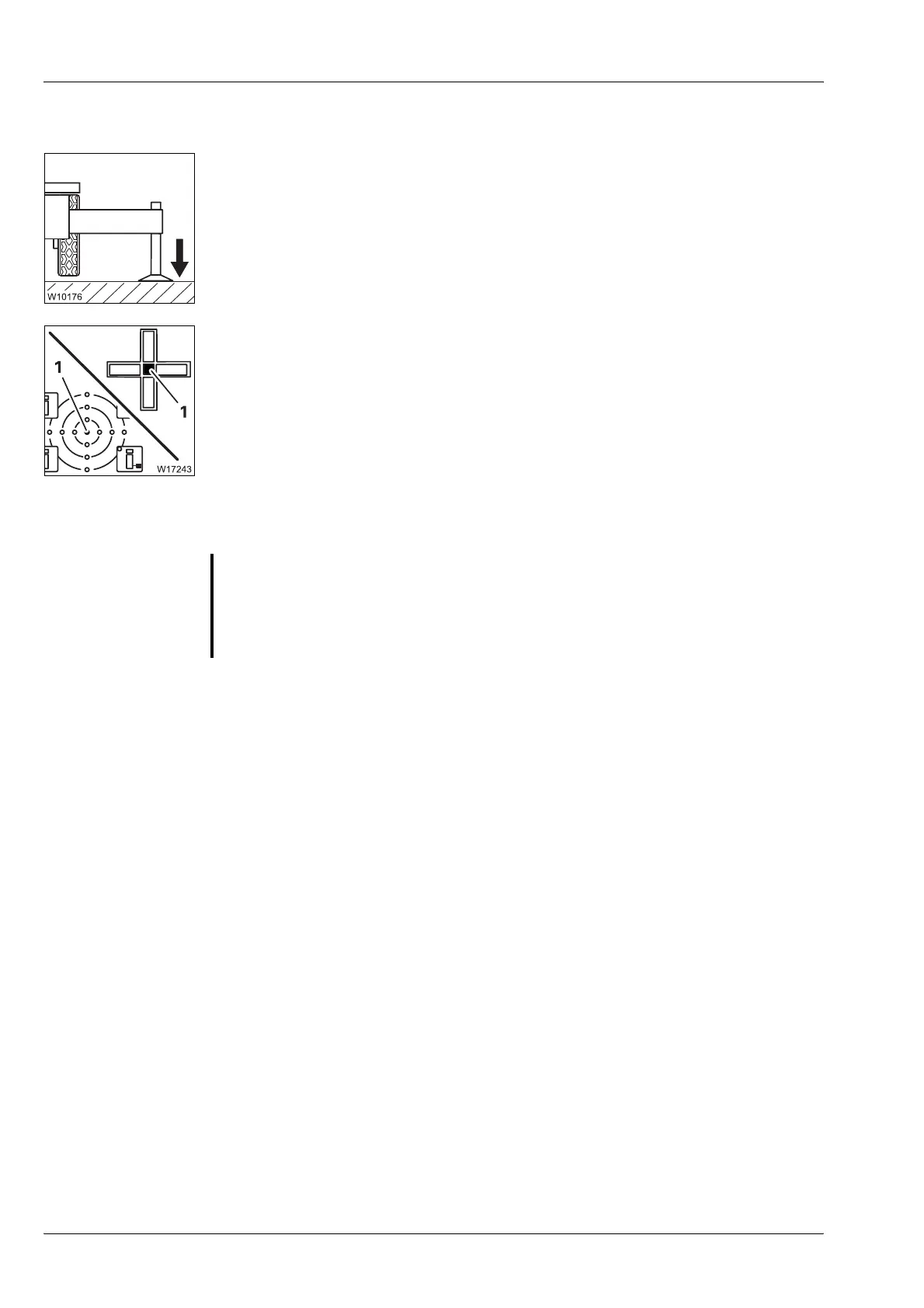

Automatic procedure
1. All supporting cylinders are extended one after the other until the out-
rigger pads touch the ground.
2. All supporting cylinders extend simultaneously so that none of the
wheels touch the ground anymore.
3. The truck crane is automatically levelled.
This procedure is performed:
– Until horizontal alignment is reached, the lamp (1) in the centre is the
only one lighting up in measuring range 1° or
– Until you let go of a button or
– Until horizontal alignment is no longer possible,
e.g. when a supporting cylinder is extended as far as possible.
G
Danger of overturning if the truck crane is not level
When ECOS ends the automatic alignment procedure, the truck crane is not
necessarily level.
Always check the horizontal alignment on the inclination indicator after
automatic levelling.
