Rigging work
12.7 Rigging/unrigging the counterweight
12 - 72 3 112 993 en Operating manual GMK 6400
12.07.2013

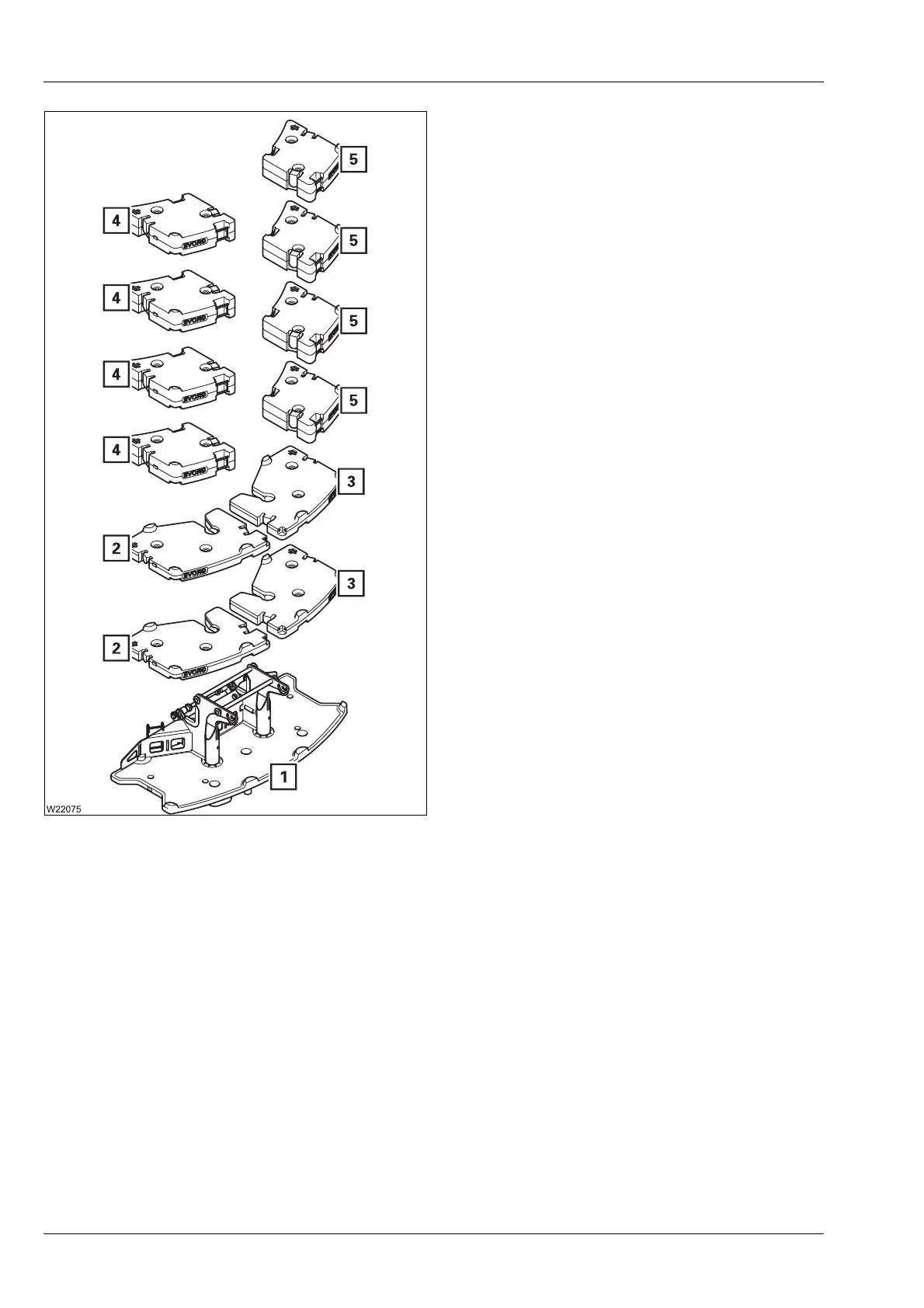

All counterweight sections with additional
equipment are illustrated in the diagram with
the maximum counterweight mass of 135 t
(297 624 lbs).
– The base plate (1) must always be at the bot-
tom
– The counterweight sections (2) can be
exchanged among each other
– The counterweight sections (3) can be
exchanged among each other
– The counterweight blocks (4) can be
exchanged among each other
– The counterweight blocks (5) can be
exchanged among each other
