12.8 Rigging the auxiliary hoist
Operating manual GMK 6400 3 112 993 en 12 - 93
12.07.2013
Transport

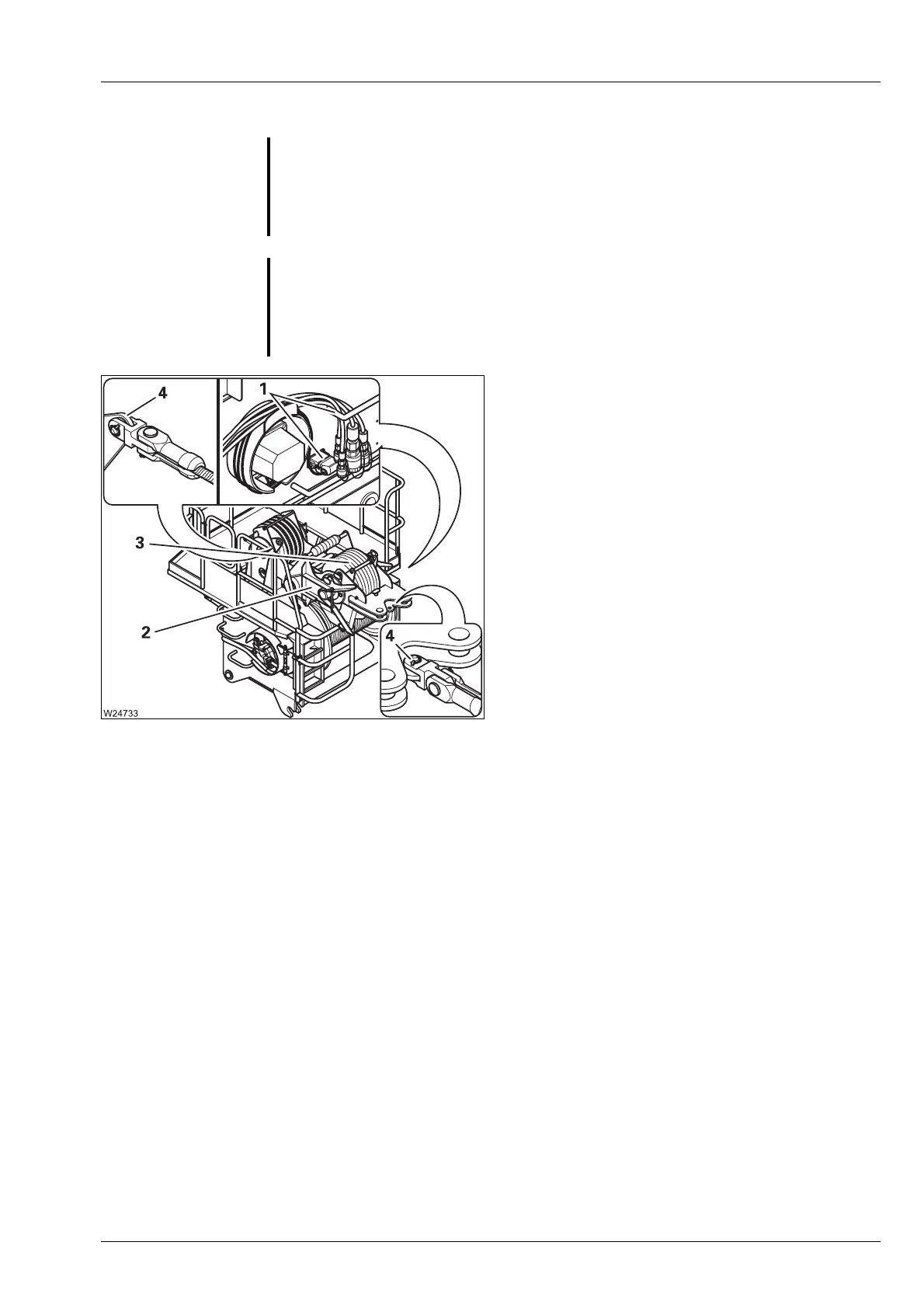

• Put the auxiliary hoist into the following
transport position:
– The hydraulic hoses and connections are
inserted into the assigned shaft (1);
à p. 12 - 100,
– The electric cable is also plugged into the
assigned shaft (1);
à p. 12 - 101,
– The catcher (2) has been set down;
à p. 12 - 99,
– If necessary, the upper hook block (3) is
secured in the catcher;
à p. 12 - 106,
– The auxiliary hoist rope is fastened to the
holder (4).
Be aware of the dimensions and weight of the auxiliary hoist when trans-
porting;
à p. 1 - 11.
G
Risk of damage to the auxiliary hoist
Attach the auxiliary hoist to the separate vehicle so that it cannot slip off.
Insert the hydraulic hoses and the electric cable into the specially designed
shaft.
G
Risk of accident from damaged auxiliary hoist rope
Ensure that the hoist rope is not damaged when loading the auxiliary hoist.
This prevents loads from falling during crane work with an auxiliary hoist.
