Rigging work

12.9 Rigging work on the main boom

Operating manual GMK 6400 3 112 993 en 12 - 117

12.07.2013

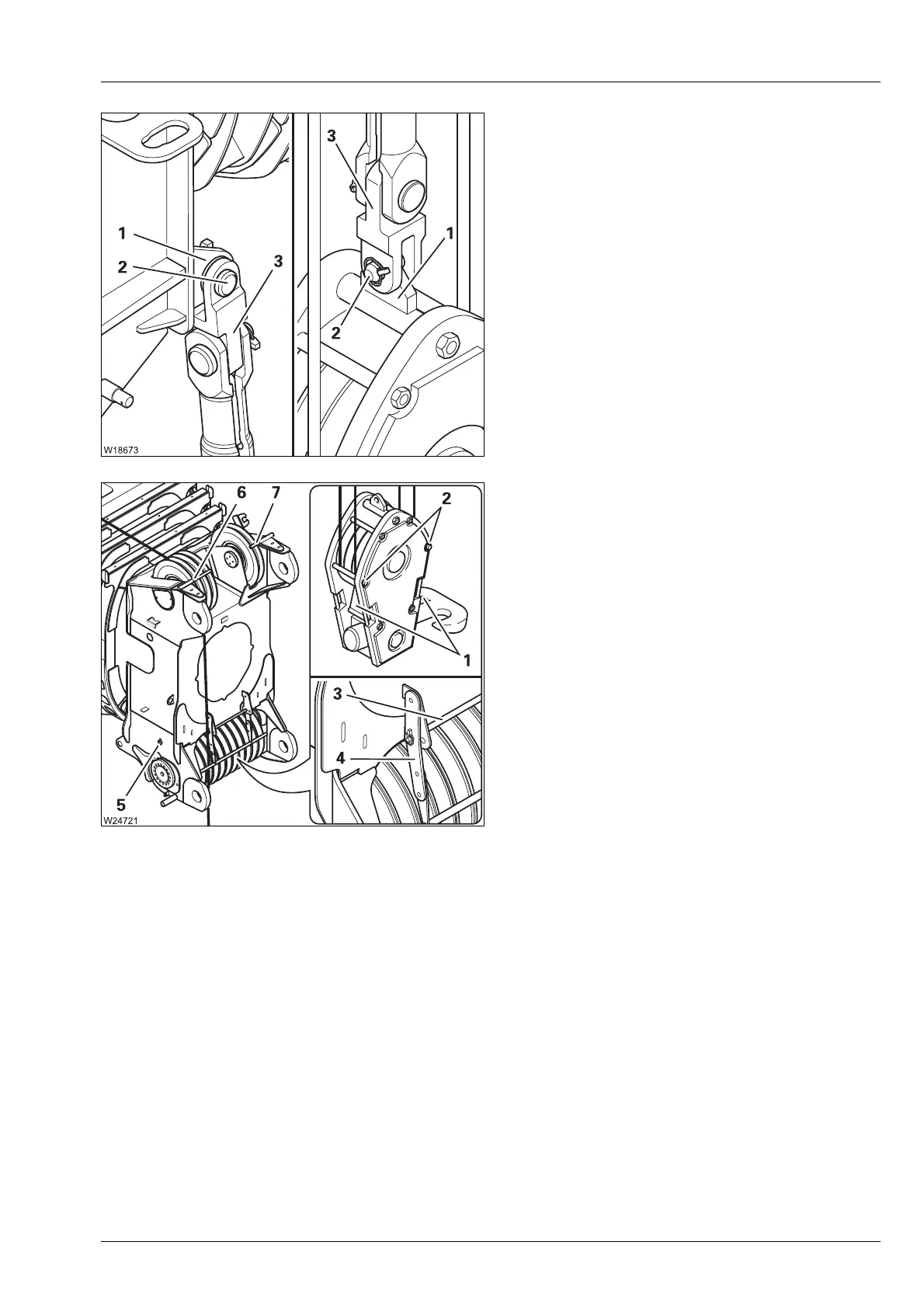

Rope end fitting

• Insert the rope end fitting (5) at the fixed

point (1) and secure the pin (2).

Securing the hoist rope

• Pull the rod (3) and fold the bracket (4)

downwards.

• Insert the rods (3), (5) and (6), (7).

• Secure all rods using the retaining pins.

Closing the hook block

• Fold up the sheet metals (1) on both sides.

• Insert the rods (2) and secure them with the

linchpins.
