Rigging work
12.9 Rigging work on the main boom
12 - 118 3 112 993 en Operating manual GMK 6400
12.07.2013

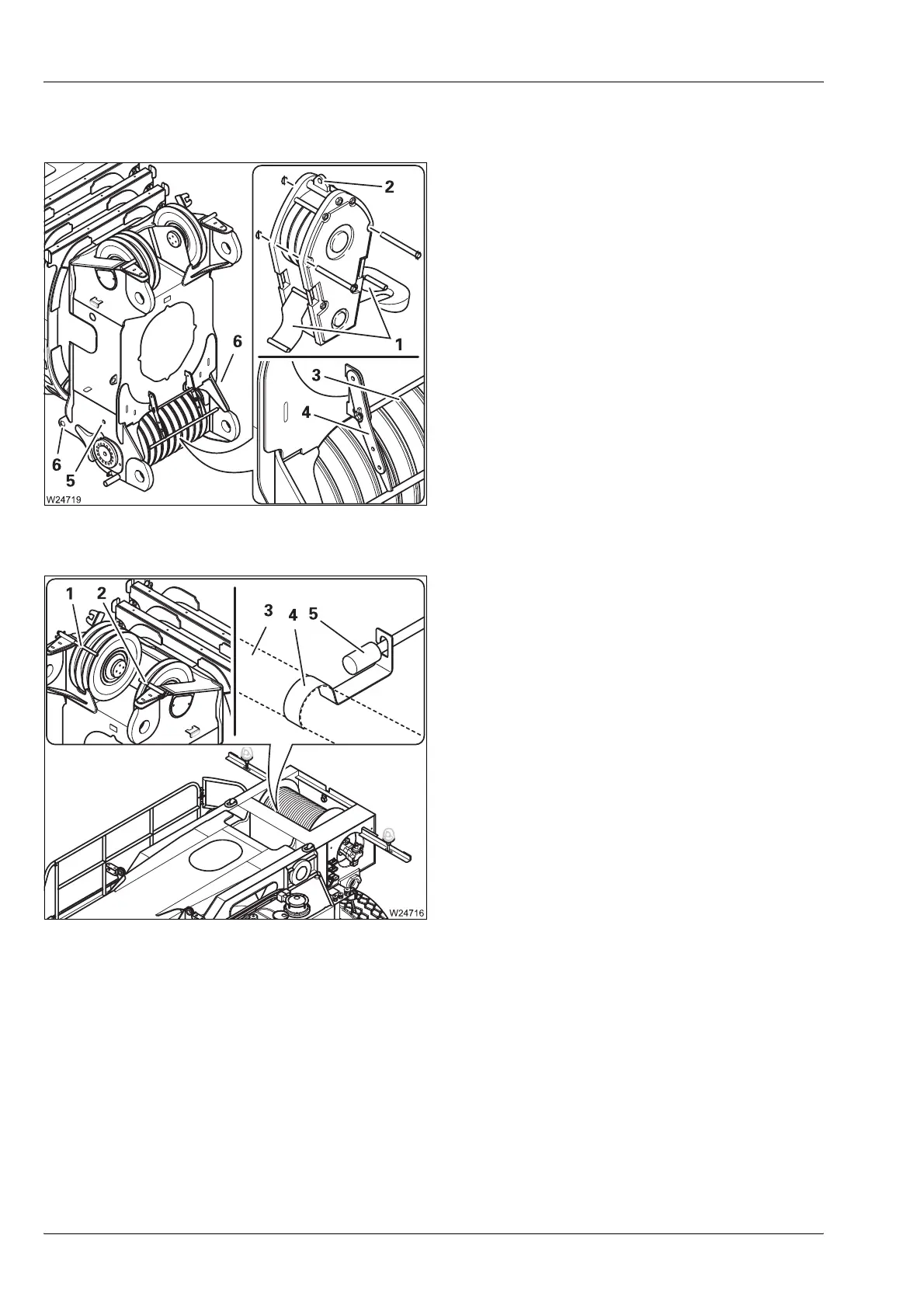

Unreeving the
hoist rope
• Pull out the rod (5).
• Remove the retaining pins and pull out the
rod (3). Fold the bracket (4) upwards. Insert
the rod (3).
• Fold down the sheet metals (1);
à p. 12 - 115.
• Remove the rope end fitting from the fixed
point (2) or (6).
• Unreeve the hoist rope.
Depending on the driving mode, you can:
– Fasten the hoist rope to the bumper;
à p. 12 - 113
– Pull out the rods (1) and (2) and roll the hoist
rope onto the drum.
• Secure the main hoist rope (5) using the
clamp (4) on the sheave (3).
• Secure the rods (1) and (2) using the
retaining pins.
