VIEW LOOKING FORWARD
1
10
6
2
3
4
3
5
REF. 10
REF. 9
REF. 6
REF. 10
11
12
RIGHT SIDE SHOWN.
LEFT SIDE IS TYPICAL.
RIGHT SIDE SHOWN.
LEFT SIDE IS TYPICAL.
20 - 25 in-lb
2.25 - 2.82 Nm
20 - 25 in-lb
2.25 - 2.82 Nm
1. COTTER PIN
2. NUT
3. WASHER
4. SECONDARY EXHAUST BUSHING
5. BOLT
6. BEARING ASSEMBLY SUPPORT
7. SECONDARY EJECTOR TOP HALF INSULATION
8. SECONDARY EJECTOR BOTTOM HALF INSULATION
9. SECONDARY EJECTOR WELDMENT ASSEMBLY
10. SECONDARY EXHAUST SUPPORT BRACE ASSEMBLY
11. SCREW
12. WASHER

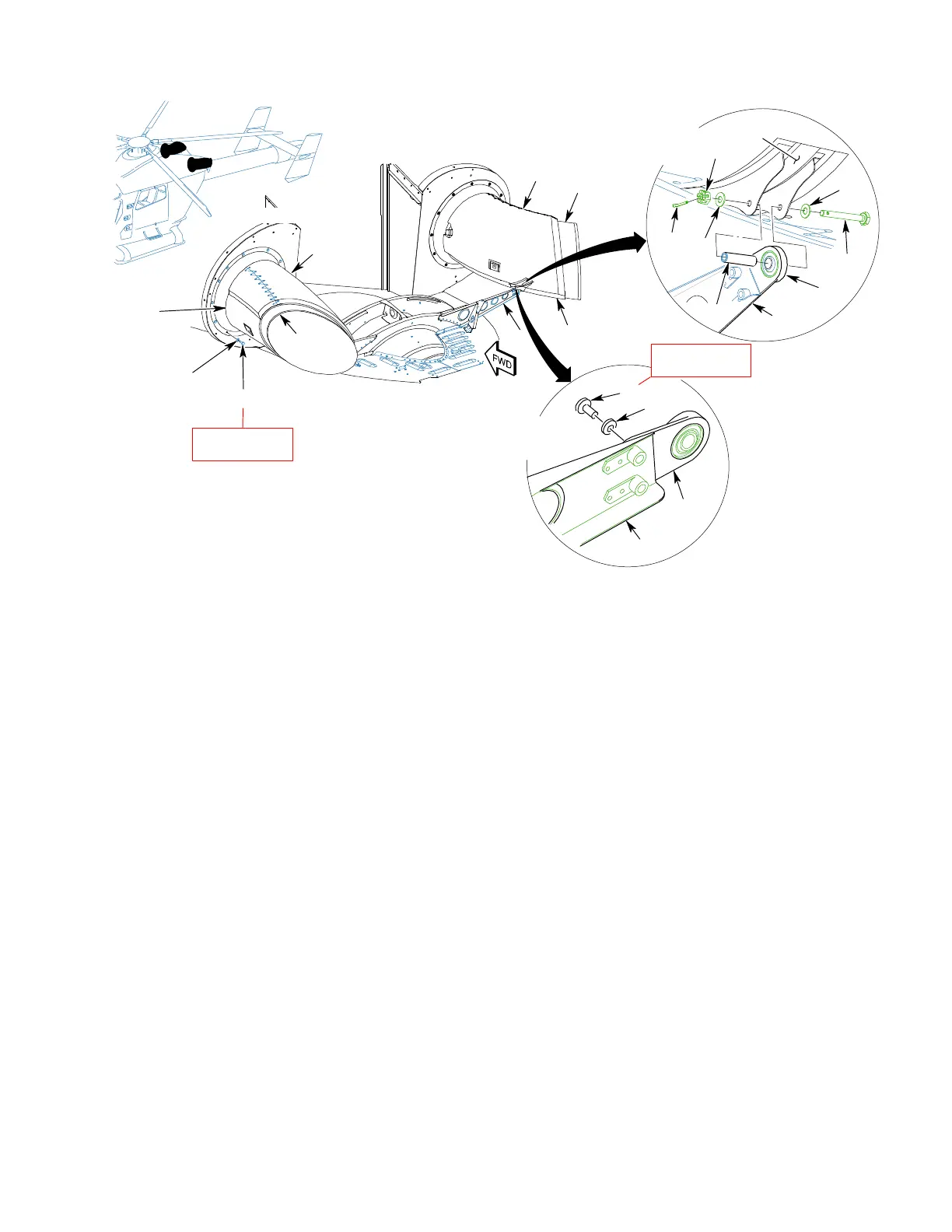

Figure 402. Secondary Ejector
