B. Installation
(1). Install smoke detector (2) on studs (3)
with washers (4) and nuts (5).
(2). Torque nuts (5) sufficiently to prevent
the axial movement of smoke detector
(2).
(3). Connect Electrical Connector P852.
9G26-021
.250 − .280 THRU
BAGGAGE COMPARTMENT
DOOR OPENING
1
2
3
4
5
P852
1. WIRING HARNESS (REF. IPL, 26−10−30, FIG. 1)
2. SMOKE DETECTOR
3. STUD
4. WASHER
5. NUT

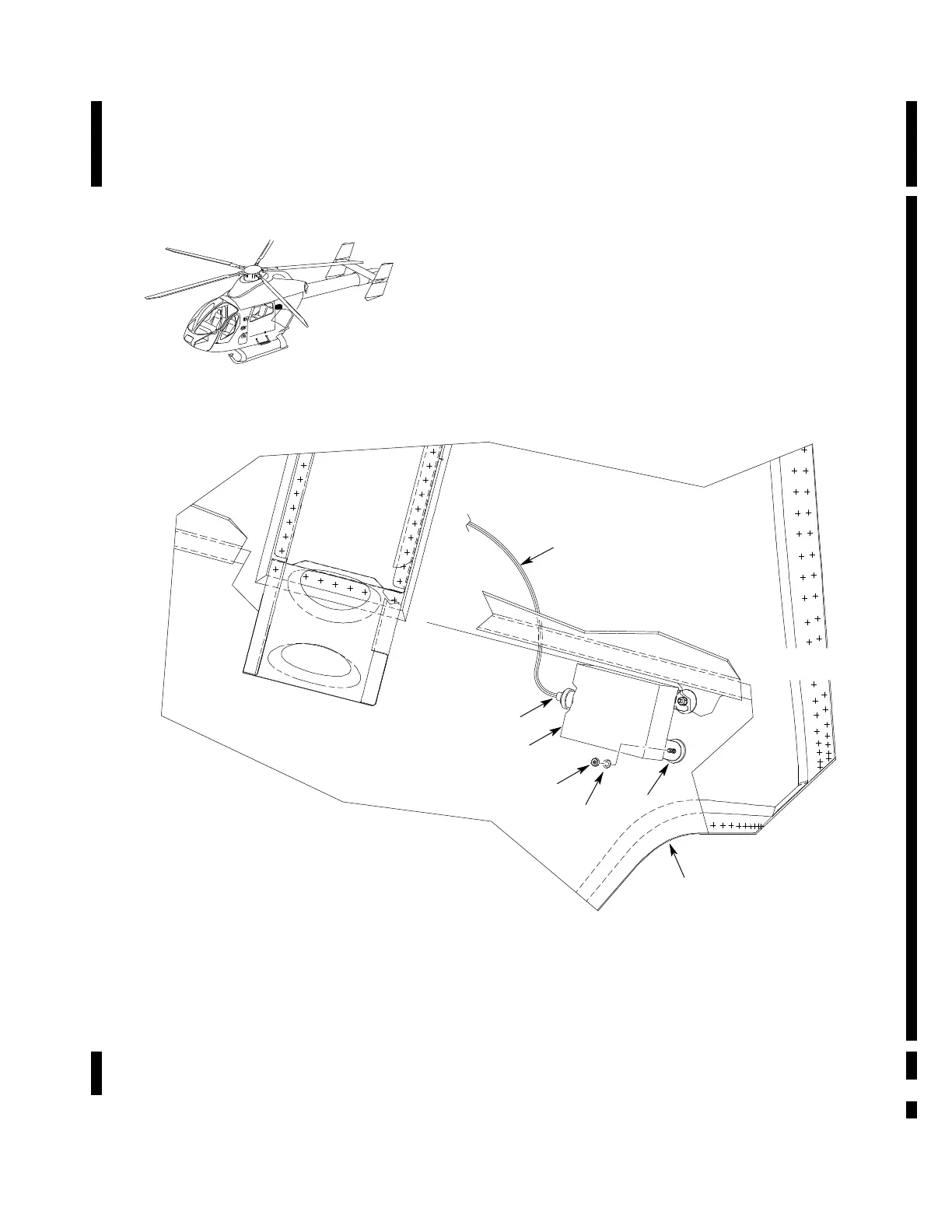

Figure 203. Smoke Detector Removal And Installation
