MD Helicopters MD Explorer - Description and Operation; Description

CSP−900RMM−2MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 1
Revision 34
12-00-00
SERVICING
DESCRIPTION AND OPERATION
1. Description
(Ref. Figure 1)
Instructions and information for complete
servicing of the rotorcraft are provided in this
section. Servicing includes replenishment of
fuel, changing or replenishment of oil, and
other such maintenance functions.
The locations of servicing points are shown in
Figure 1.
The servicing materials and capacities are
shown in Table 1.
Refer to directive and related manufacturer
publications (ref. Section 01-00-00) for
servicing requirements for the engine fuel and
oil filters, and rotorcraft battery.
9G12-002E
1
2
3
9
10
5
4
8
13
6
11
7
12
6
5
14
15
1. ECS − AIR−CONDITIONER REFRIGERANT
EARLY CONFIG SHOWN
2. ECS − AIR−CONDITIONER SYSTEM OIL
3. ECS − COMPRESSOR REDUCTION GEARBOX OIL
4. FUEL SYSTEM − FUEL
5. HYDRAULIC SYSTEM −GSE PANEL
6. HYDRAULIC SYSTEM − MANIFOLD/RESERVOIR
HYDRAULIC FLUID
7. HYDRAULIC SYSTEM − OPTIONAL HAND PUMP
RESERVOIR HYDRAULIC FLUID
8. LANDING GEAR − DAMPER FLUID
9. TRANSMISSION & DRIVE SYSTEM − MAIN
TRANSMISSION LUBRICATING OIL
10. ROTOR BRAKE MASTER CYLINDER − HYDRAULIC
FLUID
11. POWERPLANT − ENGINE LUBRICATING OIL
12. POWERPLANT − ENGINE WASH SOLUTION
13. POWERPLANT − FUEL CATCH CAN (PW206A/E ONLY)
14. ROTOR BRAKE CALIPER − SPRAY LUBE
15. WINDSCREEN WASHER (OPTIONAL) − RESERVOIR
FLUID

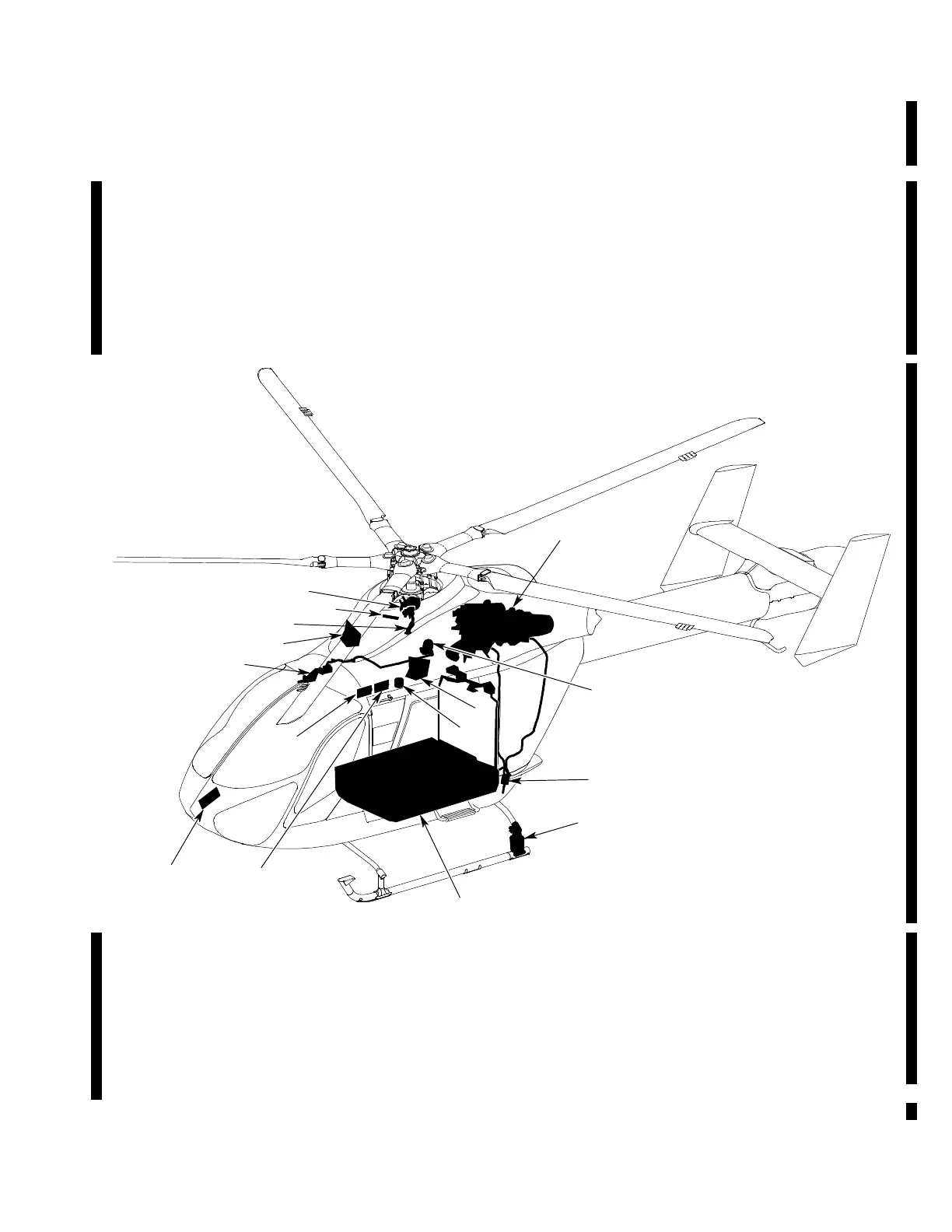

Figure 1. Servicing Points
