CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 608
Revision 35
32-00-00
2
FULL
9G32−010A
3
GREEN
RED
EMPTY
1
1. FLUID LEVEL INDICATOR
2. FIRST NOTCH
3. SECOND NOTCH

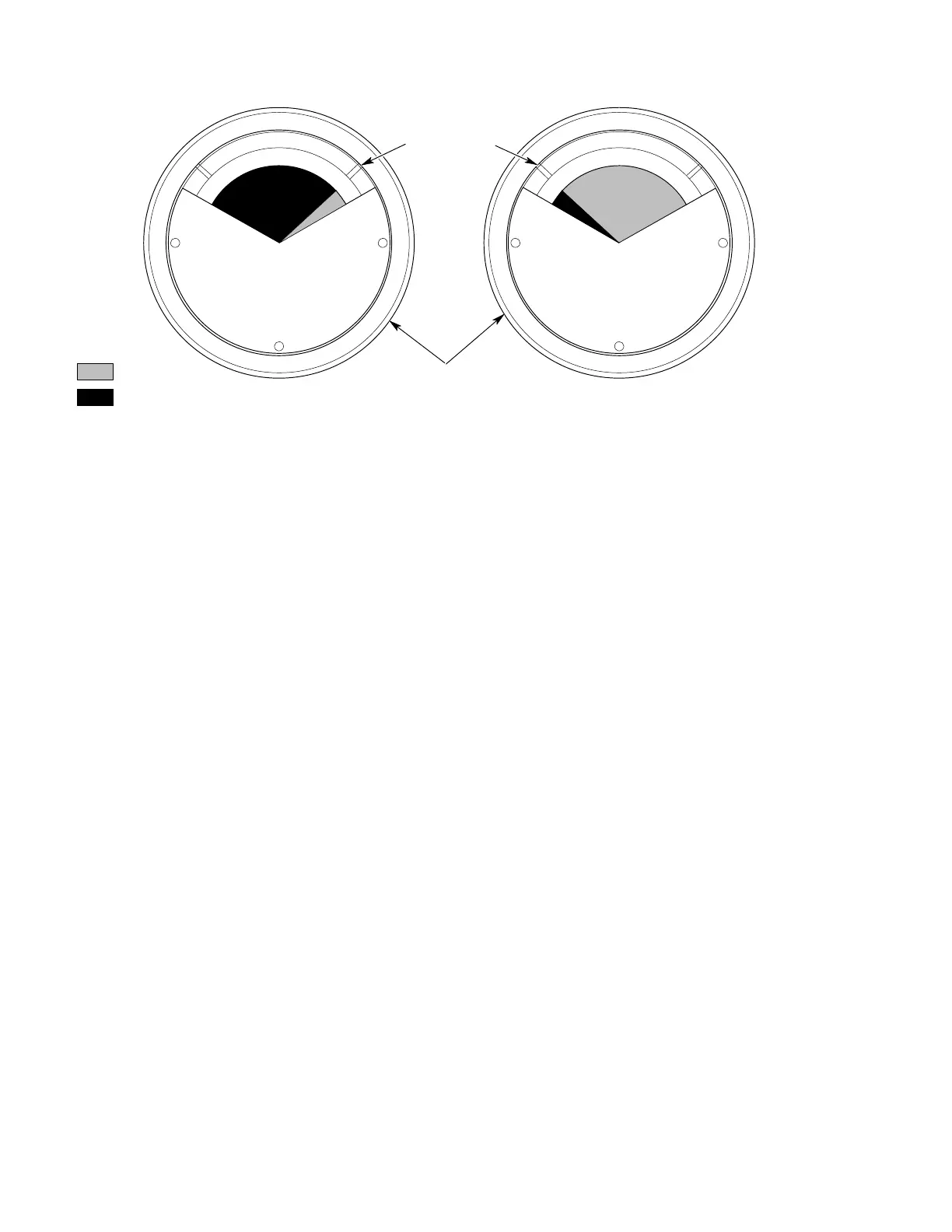

Figure 607. Damper Fluid Level Indicator
D. Fluid Level Check of the Landing Gear
Damper Assemblies
(Ref. Figure 607)
(1). Make sure the fluid level indicator (1) is
between the first notch (2) and second
notch (3) of the window.
(a). The reservoir is near full when the
window shows green.
NOTE: When the reservoir is full, the window
shows green with a very thin wedge of red at
the first notch (2). This is because the reser
voir is not completely full to let the fluid ex
pand.
(b). The reservoir is near empty when the
window shows red.
(2). If the red has reached or is below the
second notch (3), fill the reservoir (ref.
Section 12-00-00, Landing Gear).
NOTE: This lets the fluid contract.
