Make sure seals are serviceable.
If new seals are required, seals
and bearings must come from the same ven
dor.
(8). Carefully install seals.
(9). Reinstall bearing in either the fan pitch
assembly or fan support (ref. Section
64-30-30).
D. Rotor Brake Master Cylinder Servicing
(Ref. Figure 211)
Consumable Materials
(Ref. CSP−SPM)
Item Nomenclature
C112 Hydraulic Fluid
9G12−011
1
2
1. FILLER CAP (REF. IPL 63−22−00, FIG. 1)
2. SIGHT GLASS

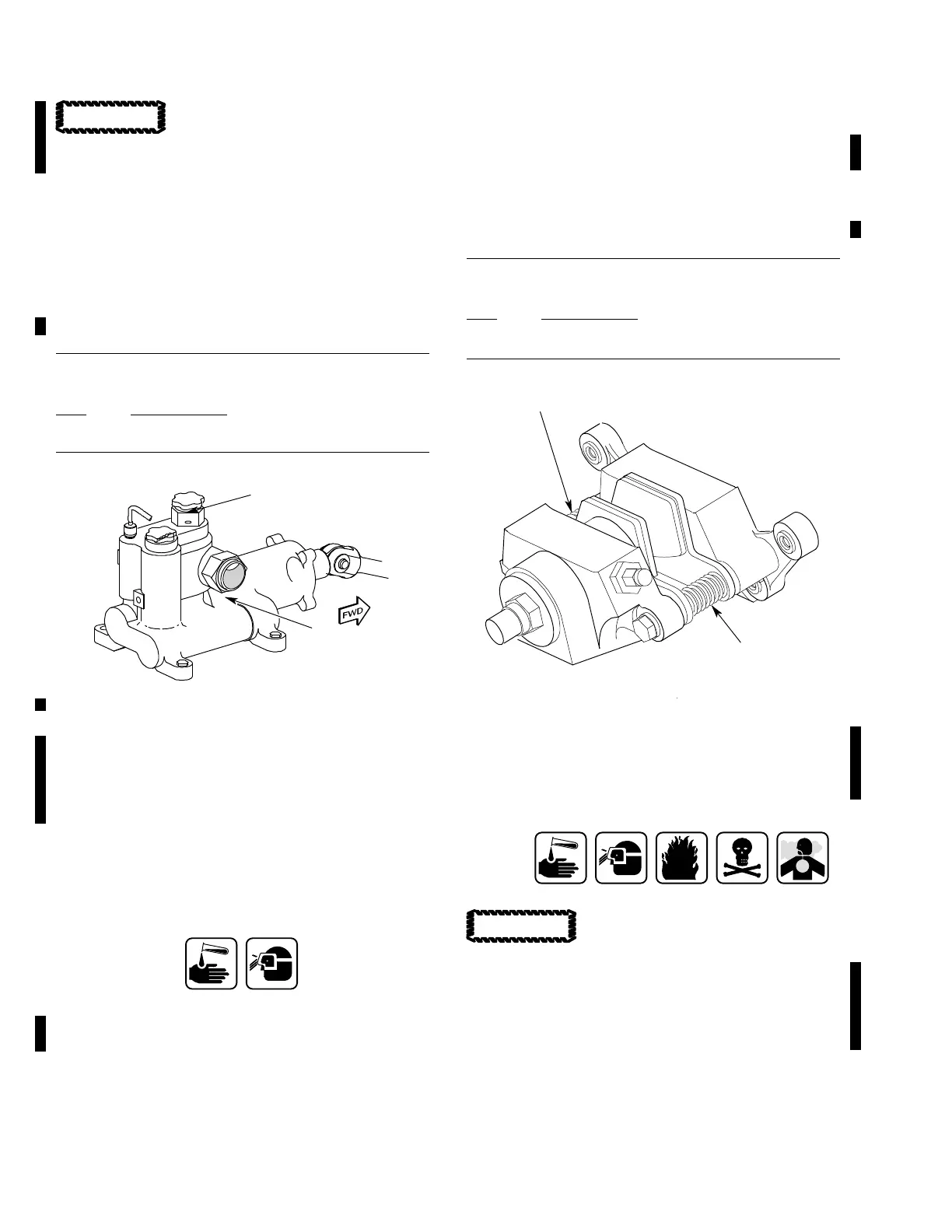

Figure 211. Rotor Brake Master Cylinder
Servicing
(1). Open Access Panel R155 (ref. Section
06-00-00).
NOTE: The rotor brake reservoir is located on
the top forward deck.
(2). Remove filler cap (1).
Hydraulic Fluid (C112)
(3). Fill reservoir to top of sight glass (2)
with hydraulic fluid (C112).
(4). Install filler cap (1).
(5). Close Access Panel R155 (ref. Section
06-00-00).
E. Rotor Brake Caliper Servicing
(Ref. Figure 212)
Consumable Materials
(Ref. CSP−SPM)
Item Nomenclature
C120 Lubricant, Spray
9G12−012
LUBRICATE
LUBRICATE
Figure 212. Rotor Brake Caliper Servicing
(1). Open Access Panel L210 or R210 (ref.
Section 06-00-00).
Lubricant, Spray (C120)
Do not allow lubricant to con
tact brake disk or brake pad.
(2). Lubricate areas shown in Figure 212
with spray lubricant (C120).
(3). Close Access Panel L210 or R210 (ref.
Section 06-00-00).
CAUTION
CAUTION
