CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 208
Revision 35
06-00-00
L155
L210
L220
L260
L270
L262
L166
L107
L109








L210
NACA INLET
INSTALLATION

L170
L211

L240
9G06-002B

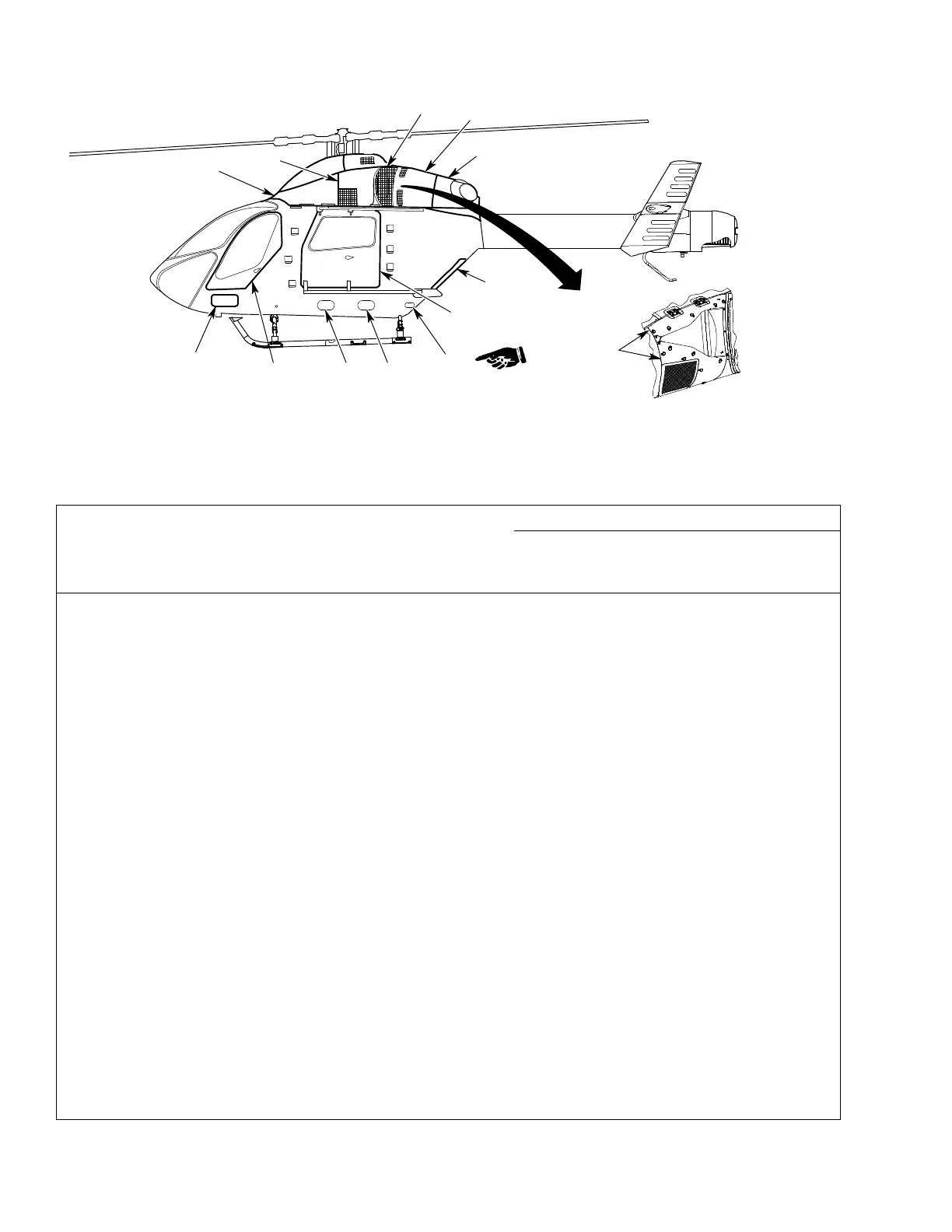

Figure 206. Left Side Access Panels
Legend (Ref. Figure 206)
Item
No.
Name Permits Access To
Removal and Installation
Quantity Type
Method
Ref.
Figure 204
L107 Crew Door, Copilot Instrument Panel,
Pedestal Console
1
1
1
Lever Action Handle
Hinge Pin / Pin
Strut End
H
J, K
T
L109 Avionics Access Panel
Assembly, LH
Electrical, Avionics, Flight
Controls
1
14
Keyloc
Camloc
A
B
L155 Forward Access Door
Assembly, LH
Main Transmission Access,
Flight Control Actuators,
Hydraulic Hand Pump, System
1 Hydraulic Manifold/Reservoir
3
2
Latch
Hinge
C
D
N
L166 Passenger Door, LH Passenger and Cargo
Compartment
1 Lever Action Handle H
L170 Access Panel Fuselage Tub outboard of keel
beam
12 Camloc U
L211 Access Panel Fuselage Tub outboard of keel
beam
12 Camloc U
L210 Transmission Access
Door Assembly, LH
SN010−SN013 W/Out
NACA INLET
Main Transmission Access,
Engine Reduction Gearbox
Housing
2
3
Hinge
Latch
D
C
N
L210 Transmission Access
Door Assembly, LH
SN014−051 W/Out
NACA INLET
Main Transmission Access,
Engine Reduction Gearbox
Housing
2
5
Hinge
Camloc
D
E
N
