Sealant, Fuel Resistant (C216)
(2). If installing support foam with sealant
(C216), apply sealant to foam in area of
attachment.
(3). Install foam support as required using
hand pressure to ensure good attach
ment to adjacent structure.
(4). Use foam tape (C721) to hold in place
until sealant cures.
(5). Remove tape.
(6). Install fuel tank.
1
2
3
4
5
6
7
8
9
10
9G28-072
1. FOAM SUPPORT, AFT, LH, OUTBOARD
2. FOAM SUPPORT, AFT, LH, INBOARD
3. FOAM SUPPORT, AFT, RH
4. FOAM SUPPORT, FORWARD, RH
5. FOAM SUPPORT, FORWARD
6. FOAM SUPPORT, LOWER, RH
7. FOAM SUPPORT, LOWER, CENTER
8. FOAM SUPPORT, LOWER, SUMP
9. FOAM SUPPORT, LOWER, LH
10. FOAM SUPPORT, FORWARD, LH

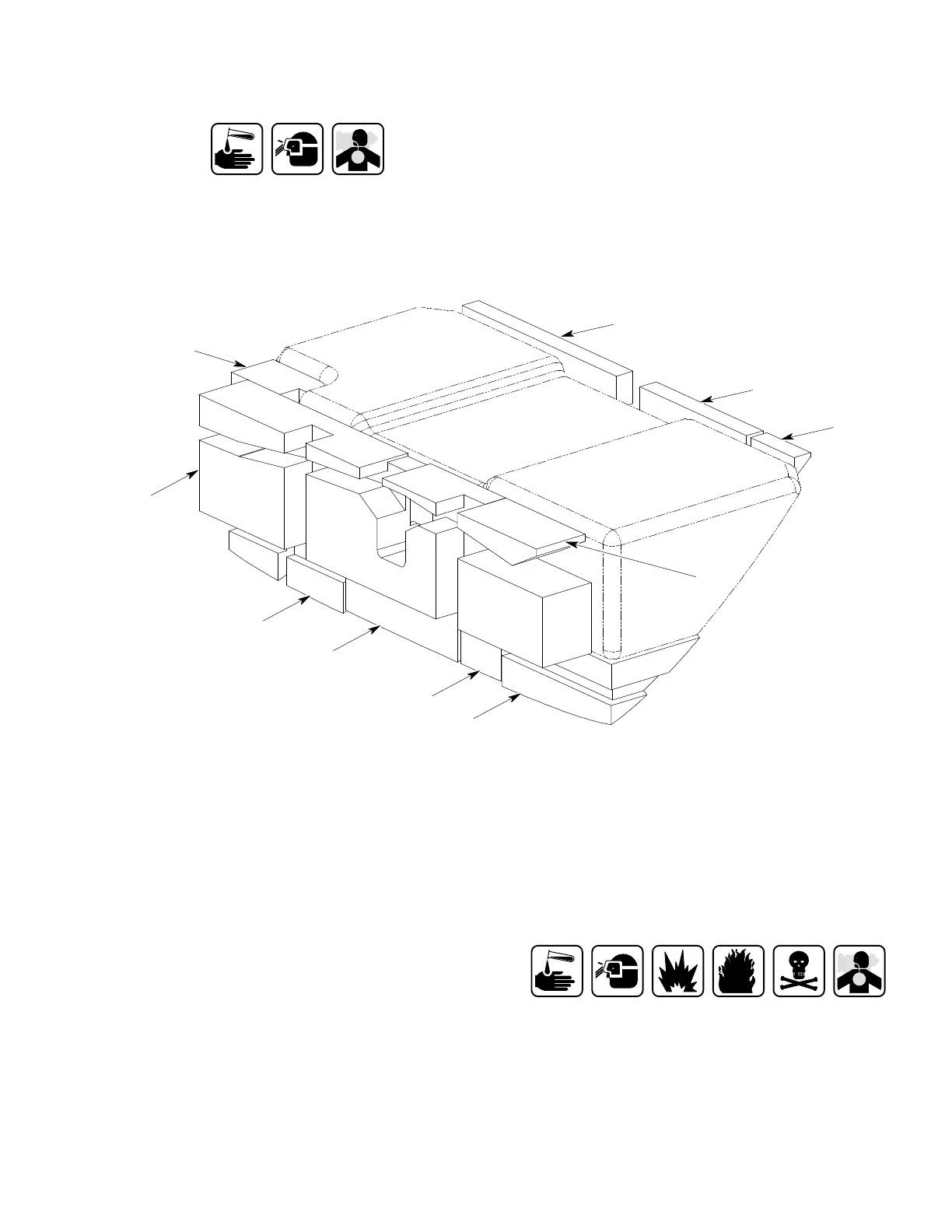

Figure 404. Supplemental Fuel Tank Foam Support Installation
10. Supplemental Fuel Transfer System
A. Supplemental Fuel Transfer System
Removal
(Ref. Figure 405)
(1). Defuel supplemental and main fuel
tanks (Ref. Section 12-00-00).
(2). Remove center baggage floor panel
(Ref. Section 53-20-00).
(3). Remove center and aft cabin floor
panels (Ref. Section 53-20-00).
Aviation Turbine Fuel
(4). Remove fuel transfer hose (3).
(5). Remove fuel transfer elbow (4).
(6). Remove main fuel tank aft LH access
cover (Ref. Section 28-00-00).
