(17). Install fuel transfer elbow into vent/rol
lover mounting plate. Torque elbow
(Ref. CSP-SPM).
(18). Using milli-ohm meter (T1002), test
hose and elbow for a class S electrical
bond (Ref. CSP-SPM). Environmental
seal is not required.
(19). Install fuel transfer hose onto elbow.
Torque hose (Ref. CSP-SPM).
(20). Attach transfer hose to supplemental
fuel tank fitting. Torque hose (Ref.
CSP-SPM).
(21). Install center and aft cabin floor panels
(Ref. Section 53-20-00).
(22). Install center baggage floor panel (Ref.
Section 53-20-00).
(23). Perform main and supplemental fuel
tank leak check/pressure test.
9G28-066
FS
230.500
WL
104.400
2
1
3
4
5
17 (4PL)
18 (4PL)
19 (4PL)
20
6
7 (2PL)
9
16
14 (4PL)
15 (4PL)
13
8
10
11
12
7 (REF)
6 (REF)
4 (REF)
1. MAIN FUEL TANK
2. SUPPLEMENTAL FUEL TANK
3. HOSE, SUPPLEMENTAL TANK TO MAIN TANK
4. ELBOW, FUEL TRANSFER
5. VALVE, VENT/ROLLOVER, MAIN TANK
6. CHECK VALVE
7. PACKING, PREFORMED
8. JAM NUT
9. ELBOW, FLARED TUBE, BULKHEAD
10. HOSE, ELBOW TO LEVEL CONTROL VALVE
11. REDUCER
12. PACKING, PREFORMED
13. VALVE, LEVEL CONTROL, FUEL
14. BOLT
15. WASHER, FLAT.
16. BRACKET ASSEMBLY, LEVEL CONTROL VALVE
SUPPORT
17. BOLT
18. WASHER FLAT
19. PACKING WITH RETAINER
20. MAIN FUEL TANK COVER

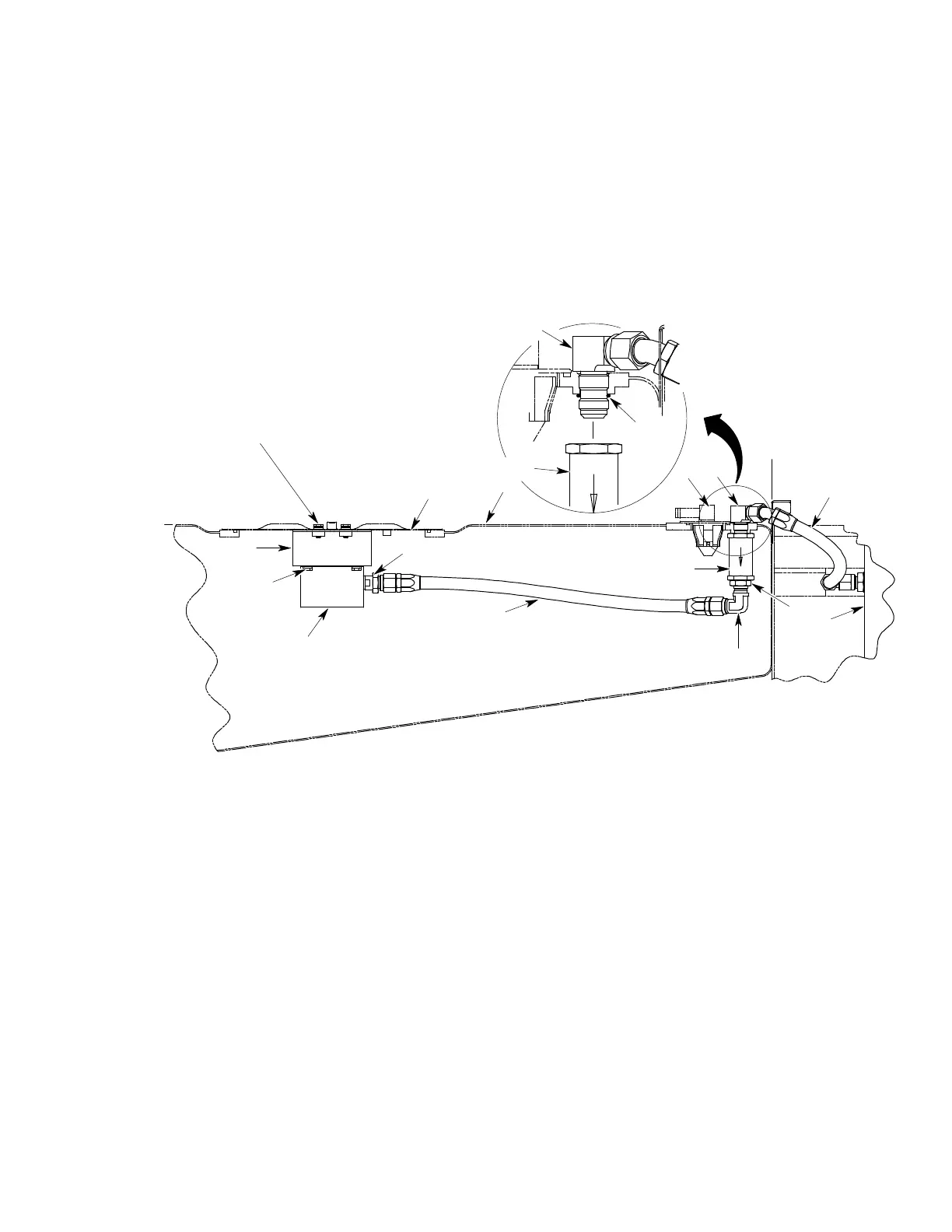

Figure 405. Supplemental Fuel Transfer System Installation
