CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 404
Original
79-00-00
9G79-004
1
2
VIEW LOOKING AFT
REF. 1
3 (3 PL)
4 (3 PL)
REF. 2
5
6
7
8
9
10
10
11
12
REF. 6
REF. 7
VIEW LOOKING INBOARD.
SOME DETAIL REMOVED
FOR CLARITY.
15
16
20
18
17
19
11
21
8
10
10
9
20
REF. 19
8
10
21
22
10
9
13
14
1. ENGINE OIL IN HOSE
2. ENGINE OIL OUT HOSE
3. NUT
4. WASHER
5. O−RING
6. ENGINE OIL PRESSURE SENSOR
7. OIL PRESSURE SENSOR TUBE
8. SCREW
9. NUT
10. WASHER
11. BRACKET
12. CLAMP
13. ENGINE OIL TEMPERATURE SENSOR
14. O−RING
15. OIL OVERFLOW DRAIN TUBE ASSEMBLY
16. STARTER / GENERATOR PAD DRAIN TUBE
ASSEMBLY
17. FUEL PUMP PAD DRAIN TUBE ASSEMBLY
18. OIL DRAIN TUBE ASSEMBLY
19. ENGINE SEAL DRAIN HOSE
20. TEE FITTING
21. CLAMP
22. BRACKET

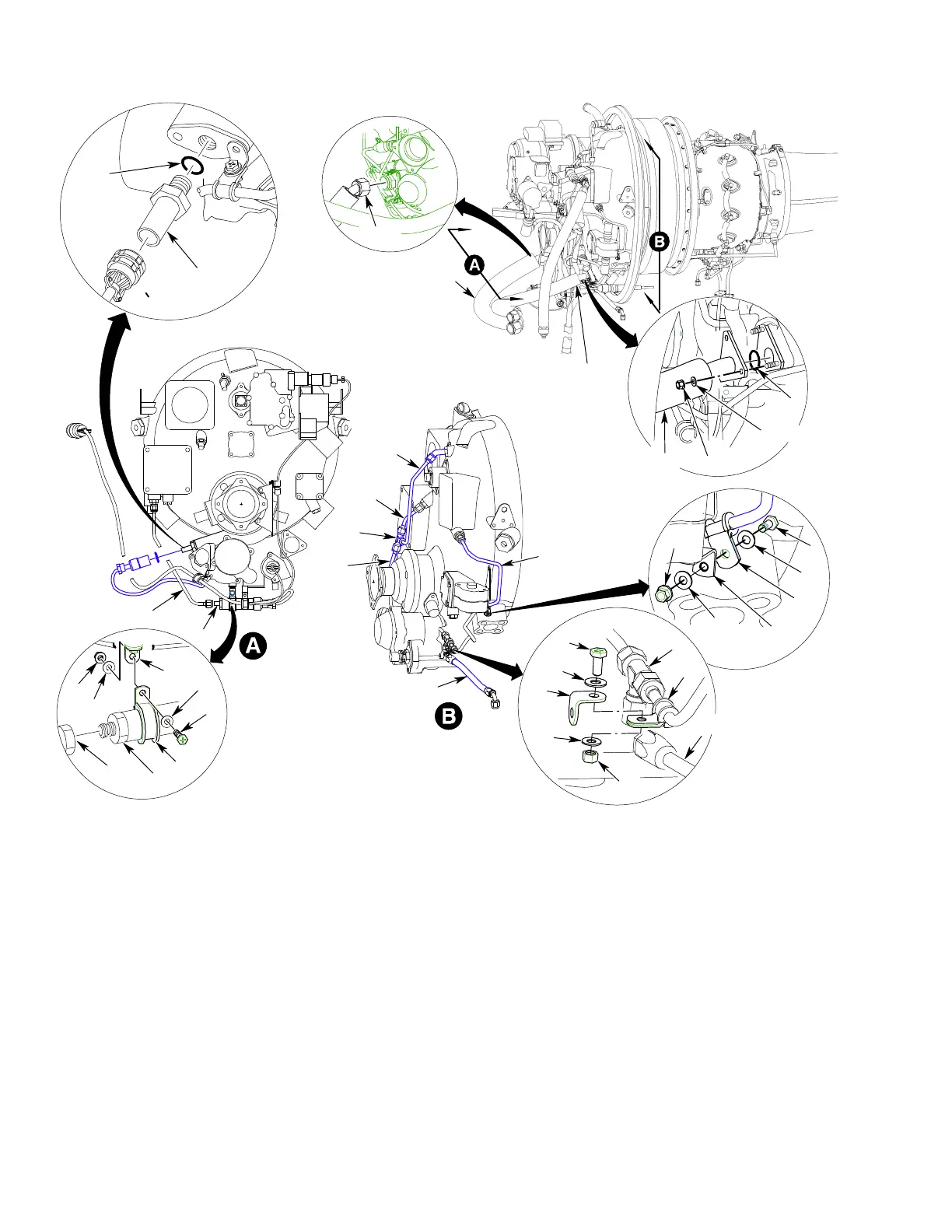

Figure 401. Engine Oil System
