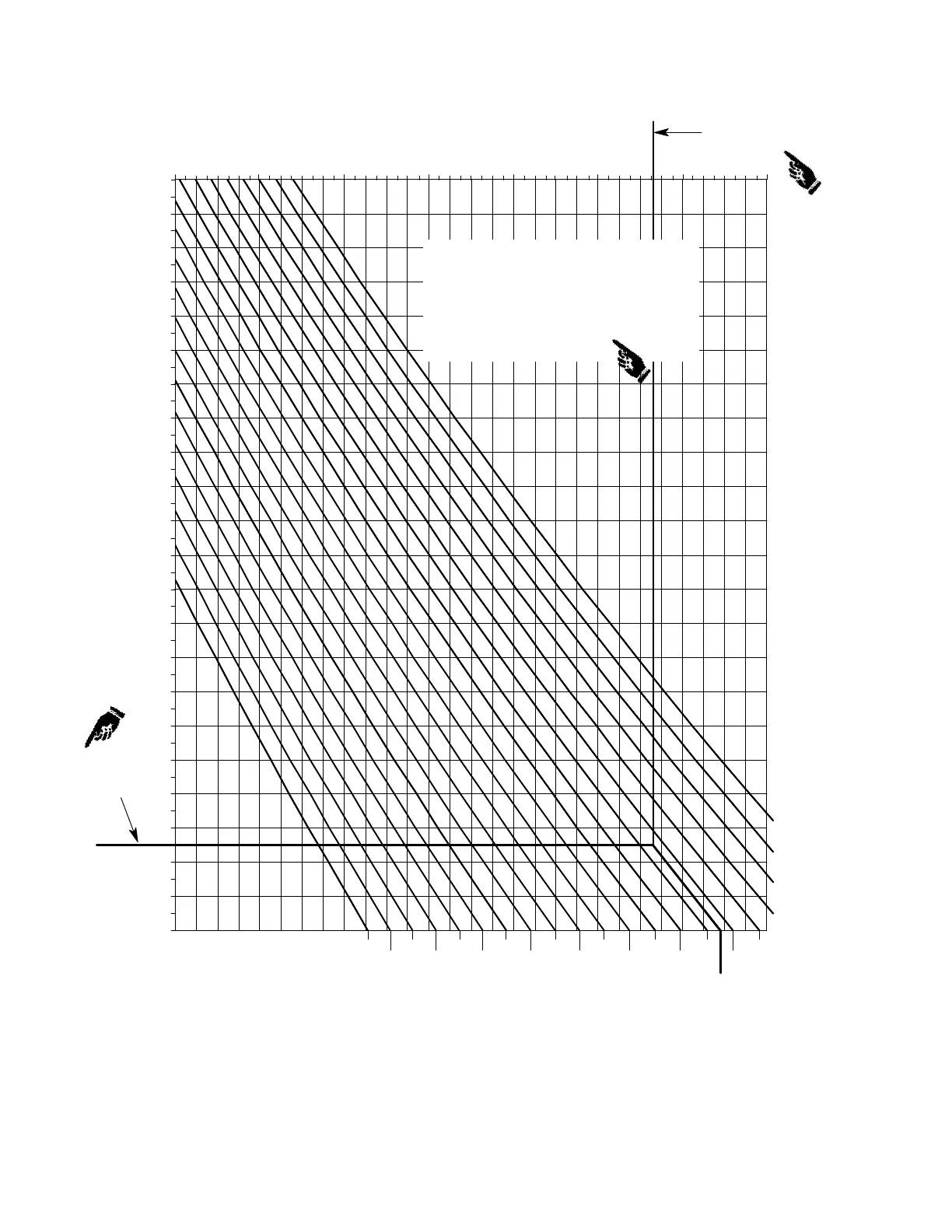

MD900 AUTOROTATION RPM CHART
COLLECTIVE SET TO 10%
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
EXAMPLE ROTORCRAFT
WEIGHT: 5860 LBS
EXAMPLE:
ROTORCRAFT WEIGHT: 5860 LBS.
DENSITY ALTITUDE: 500 FT.
*MAIN ROTOR RPM FOR THIS WEIGHT AND DENSITY
ALTITUDE SHOULD BE SET BETWEEN 102% AND 103% N
R
WITH COLLECTIVE CONTROL LEVER SHOWN AT 10% CLP
ON THE IIDS ALPHA NUMERIC DISPLAY.
EXAMPLE DENSITY
ALTITUDE:
500 FEET
DENSITY ALTITUDE - FT
PERCENT N
R
9G18-002-2A
*
Figure 206 Autorotation RPM Chart (Sheet 2 of 2)
