MD Helicopters MD Explorer - Page 428

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 404
Original
21-40-00
11
12
13
14
2
4
5
1
2
3
21
20
7
9
8
10
8
9
8
9
11
18
19
9G21−017B
18 in-lb
2.0 Nm
95-110 in-lb
10.7-12.4 Nm
95-110 in-lb
10.7-12.4 Nm
16
15
15
17
6
16
15
15
6
900 CONFIG
900 CONFIG
AN FLARED FITTINGS
902 CONFIG
22 (2 PL)
460-500 in-lb
57.96-56.48 Nm
5
1. COTTER PIN
2. WASHER
3. HEAT/DEFOG CONTROL CABLE (CLEVIS END)
4. CLEVIS PIN
5. HEAT/DEFOG VALVE
6. RETAINER
7. HEAT/DEFOG EJECTOR
8. JAM NUT
9. WASHER
10. MOUNTING BRACKET
11. HEAT/DEFOG TUBE ASSEMBLY
12. SCREW
13. WASHER
14. NUTS
15. SEAL
16. FLEXIBLE (THREADLESS) COUPLING
17. SPACER FITTING 0.875 INCH
18. FOAM (C801)(900 CONFIG)RUBBER (C610)(902
CONFIG)
19. ADHESIVE TAPE (C709)(900 CONFIG)GLASS FABRIC
TAPE (C710)(902 CONFIG)
20. HOSE CLAMP BAND TYPE
21. SLEEVE (FIBERGLASS, RUBBER, SILICONE)
22. NUT, TUBE COUPLING

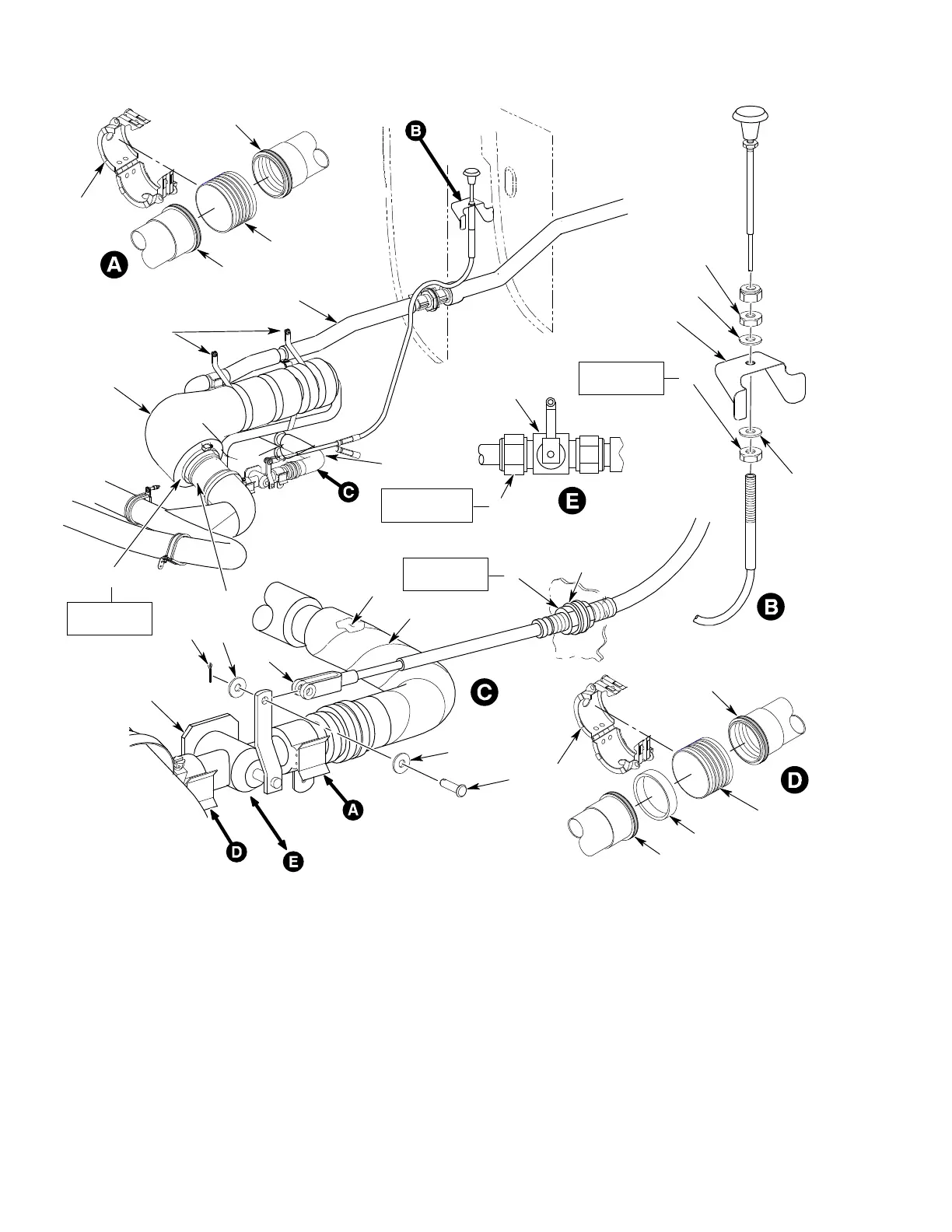

Figure 401. Heat/Defog Valve, Ejector, and Control Cable
