CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 404
Revision 34
21-50-00
14
10
9
11
12
12
1
14
15
2
3
4
5
6
DECK (REF)
155.50 BULKHEAD (REF)
10
6
5
9G21−030B
16
1 (REF)
7
8
2 (REF)
9
1. 3−WAY VALVE DUCT
2. 3−WAY VALVE CABLE
3. SPLIT GROMMET
4. CABLE HANDLE BRACKET
5. WASHER
6. SCREW
7. WASHER
8. COTTER PIN
9. WASHER
10. JAM NUT
11. CABLE BRACKET
12. V−BAND CLAMP
13. EVAPORATOR FAN
14. BAND CLAMP
15. BULKHEAD−TO−VALVE DUCT
16. SEPARATOR−TO VALVE DUCT

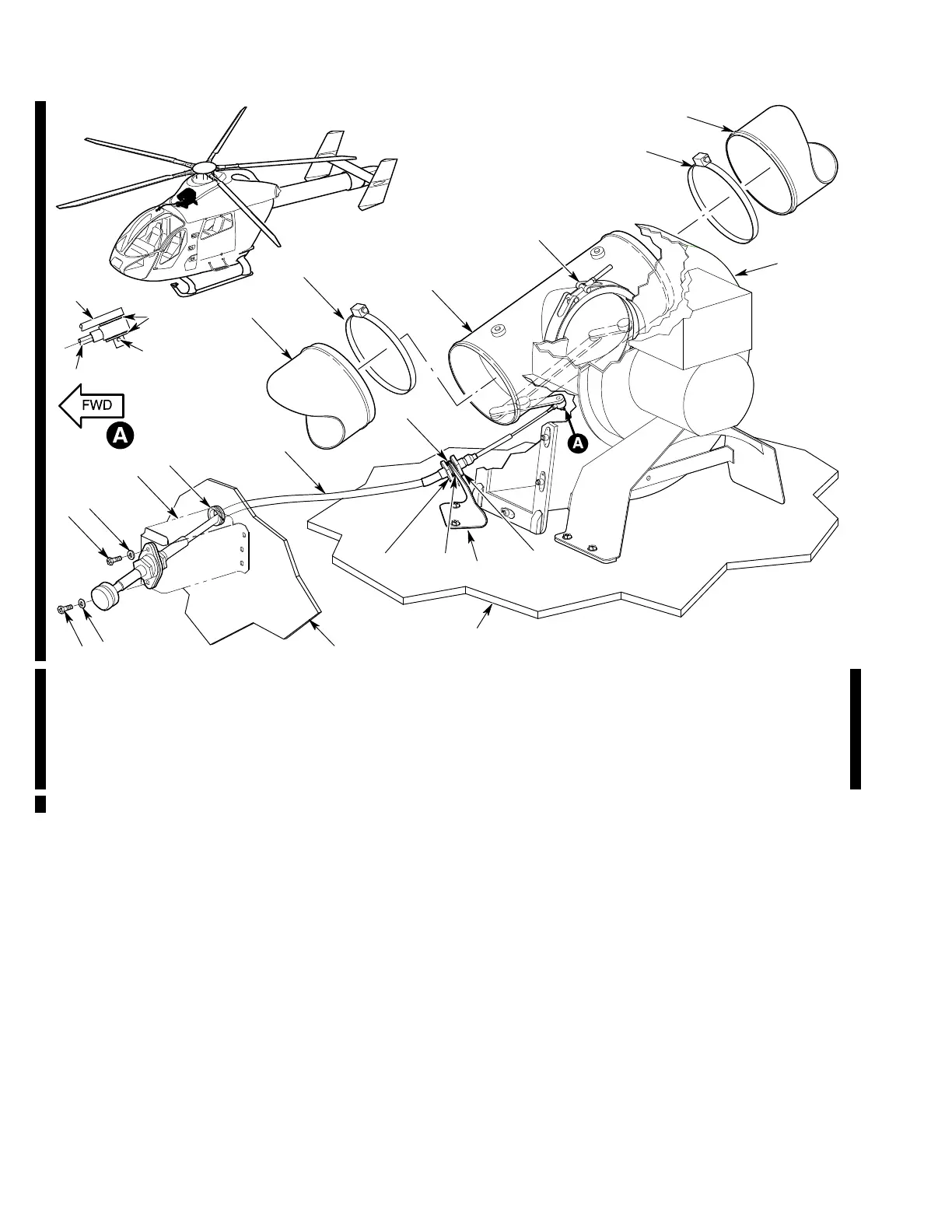

Figure 402. Removal and Installation of Three−Way Valve Cable and Duct
