CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 406
Revision 34
21-50-00
VIEW ROTATED
8
9
1
5
3
10
6
3
3
4
7
2
5
3
9G21−021C
3
5
1. EVAPORATOR FAN (REF. IPL, 21−50−00, FIG. 1 AND
FIG. 2)
2. WASHER
3. WASHER
4. SCREW
5. SCREW
6. SCREW
7. FLEXIBLE DUCT
8. ELECTRICAL CONNECTOR P516
9. V−BAND CLAMP
10. 3−WAY VALVE DUCT

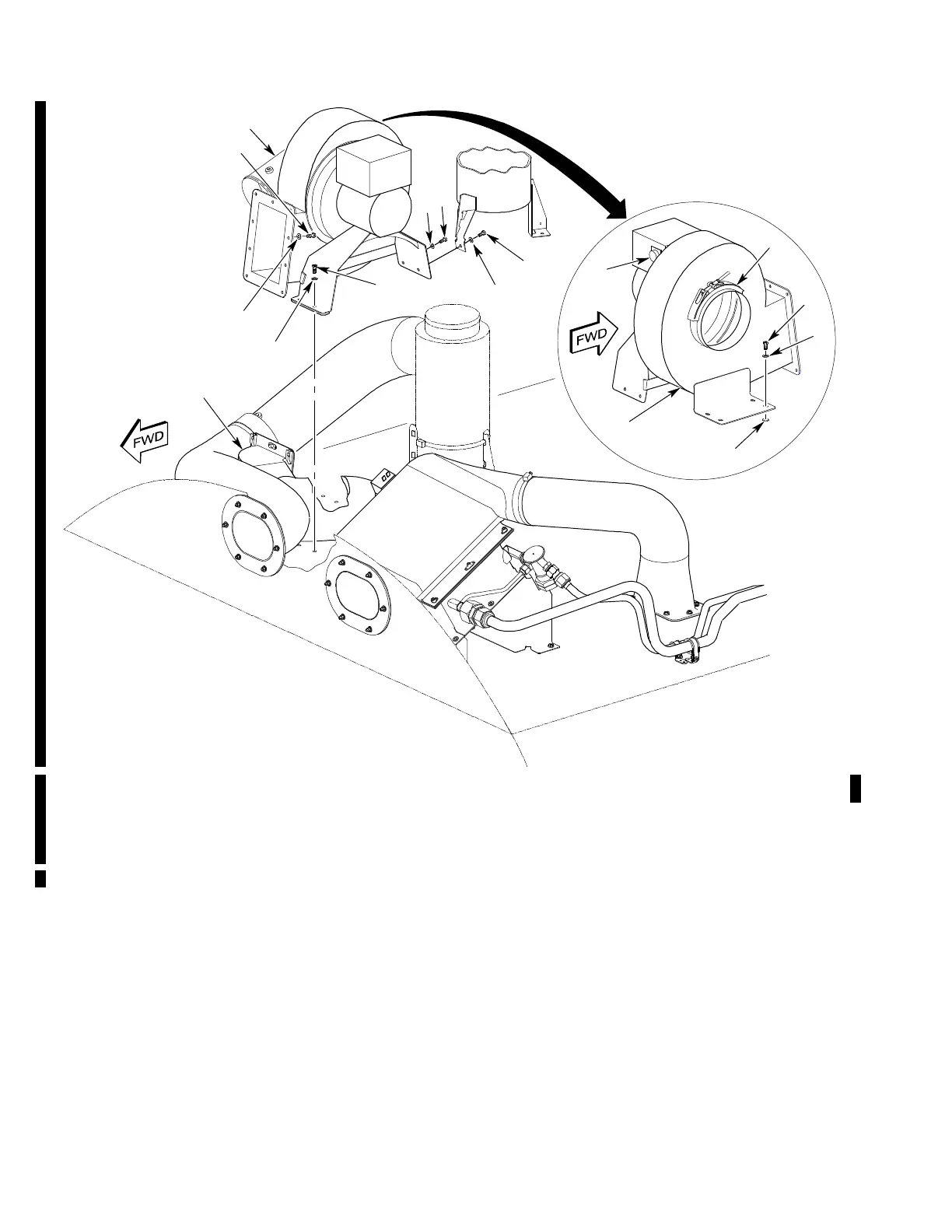

Figure 403. Removal and Installation of the Evaporator Fan
