MD Helicopters MD Explorer - Page 569

CSP−900RMM−2MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 5/(6 blank)
Original
25-20-00
9G25−004B
CLOSEOUT
PANELS
ROOF PANELS
VENT GASPER
AREA LIGHT
CLOSEOUT
PANELS
VENT GASPER
CLOSEOUT
PANEL
THRESHOLD
THRESHOLD
CARPET
FLOOR
STRUCTURE
HOOK
TAPE
HOOK
TAPE
HOOK
TAPE
AFT BULKHEAD
PANEL
HEAT VENT
FWD BULKHEAD
PANEL
SIDE PANEL
HOOK TAPE
DOOR STRUCTURE
TRAPPING STRIP
DOOR TRIM
SIDE PANEL
HOOK
TAPE
PULL HANDLE

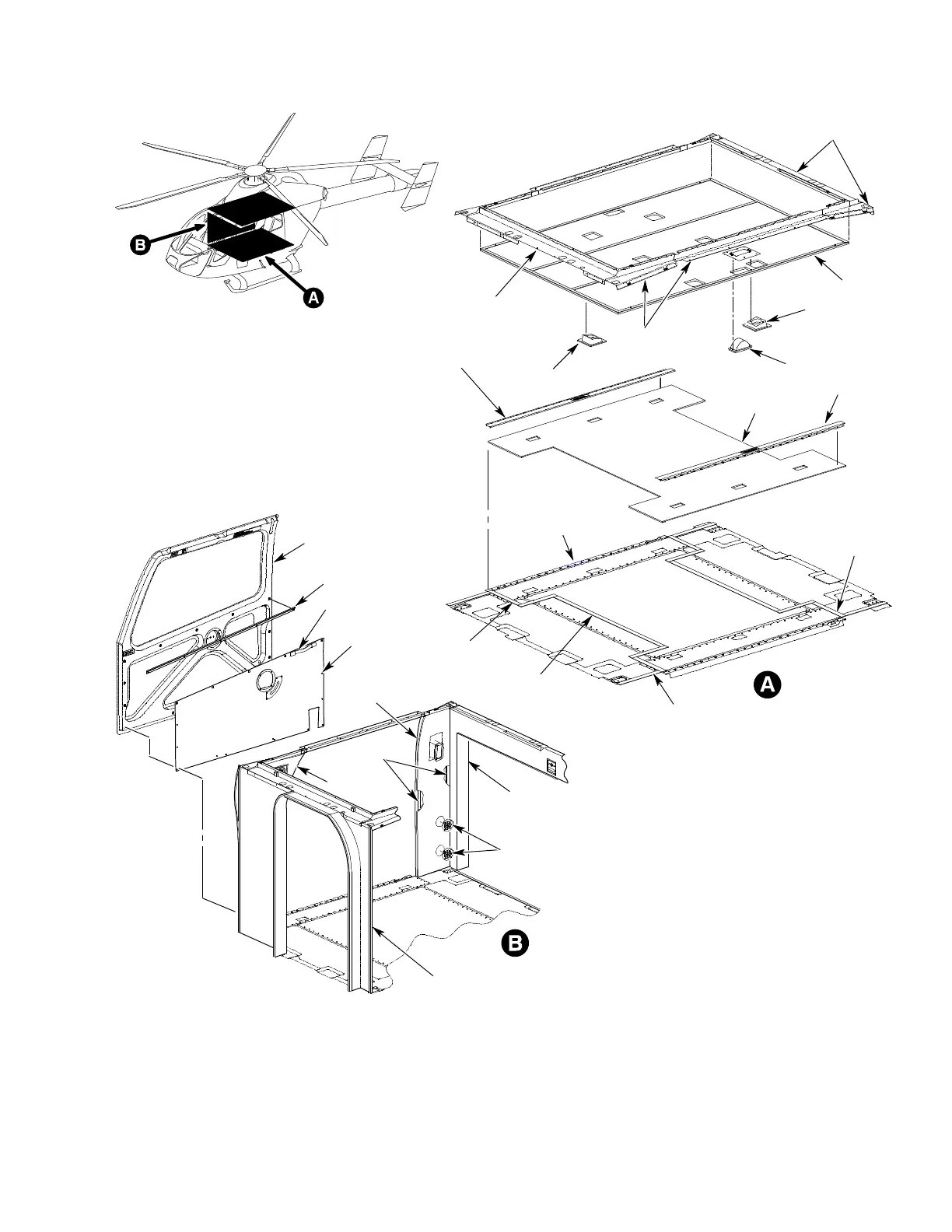

Figure 3. Cabin Interior/Trim − Utility
