CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 406
Original
25-55-00
9G25-021A
8
7
9
8 PL
RBL
0.51
FS
155
3
2 (20 PL)
(EXISTING W125 WIRE
HARNESS, INSTALLED)
1
11
12
(GROUND)
J600
P600
10
6
13
VIEW LOOKING UP AT
BOTTOM OF AIRCRAFT
5
4

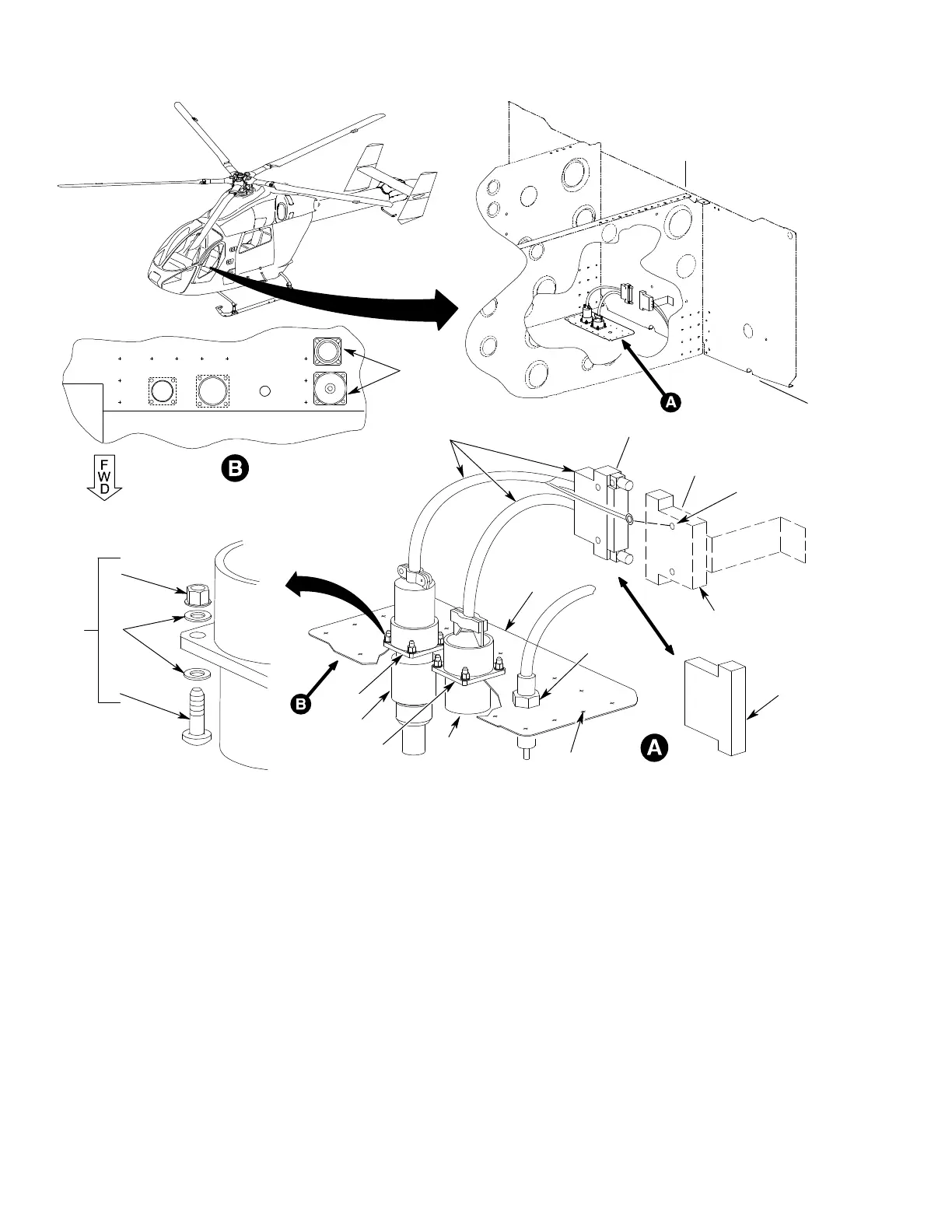

1. DOUBLER
2. RIVET
3. WIRE HARNESS W314
4. ELECTRICAL RELEASE CONNECTOR
5. LOAD INDICATOR CONNECTOR
6. MECHANICAL RELEASE CONNECTOR
7. SCREW
8. WASHER
9. NUT
10. SHORTING PLUG
11. SHORTING PLUG
12. DUST CAP
13. DUMMY RECEPTACLE
Figure 403. Wire Harness − W314, Cargo Hook
