CSP−900RMM−2MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 205
Revision 4
26-10-20
9G26−016A
11
12
7
8
9
13
8
10
6
6
1
4
2
5
6
6
3
J373
LEFT
J374
RIGHT
J473
LEFT
J474
RIGHT
J379
LEFT
J376
RIGHT
J479
LEFT
J476
RIGHT
65 -75 in-lb
7.3 - 8.5 Nm
70 -90 in-lb
7.9 - 10.2 Nm
65 -75 in-lb
7.3 - 8.5 Nm
1. ELECTRICAL CONNECTOR (RIGHT ENGINE J474)
2. ELECTRICAL CONNECTOR (RIGHT ENGINE J476)
3. RIGHT ENGINE DETECTION CABLE
4. ELECTRICAL CONNECTOR (LEFT ENGINE J473)
5. ELECTRICAL CONNECTOR (LEFT ENGINE J479)
6. MOUNTING NUT
7. SCREW
8. WASHER
9. NUT
10. LEFT ENGINE DETECTION CABLE
11. QUICK RELEASE CLAMP
12. FIRE DETECTOR RUBBER GROMMET
13. Z−BRACKET

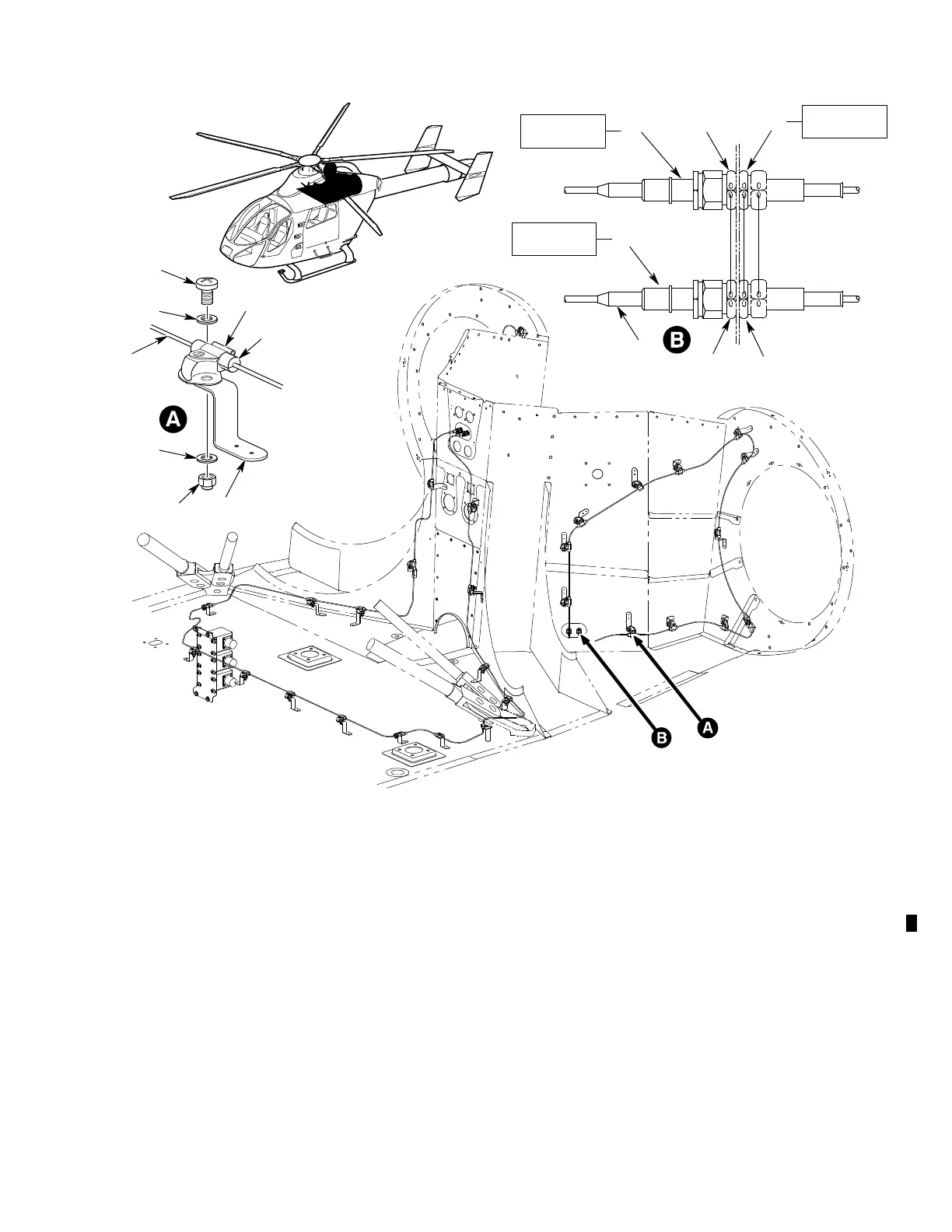

Figure 202. Engine Fire/Overheat Detection Cable (Typical)
