DISTRIBUTION TUBE
RIGHT SIDE
DISTRIBUTION TUBE
LEFT SIDE
REF
ENGINE DECK
REF
ENGINE DECK
DISCHARGE
TUBE
OUTLET
PORT
DISCHARGE
TUBE
OUTLET
PORT
CROSS FLOW
TUBES
FIRE BOTTLE
ASSEMBLY
(BLUE PORT)
ALTERNATE
CARTRIDGE
(RED PORT)
PRIMARY
CARTRIDGE
9G26−007
PRESSURE GAUGE
FILLER PORT

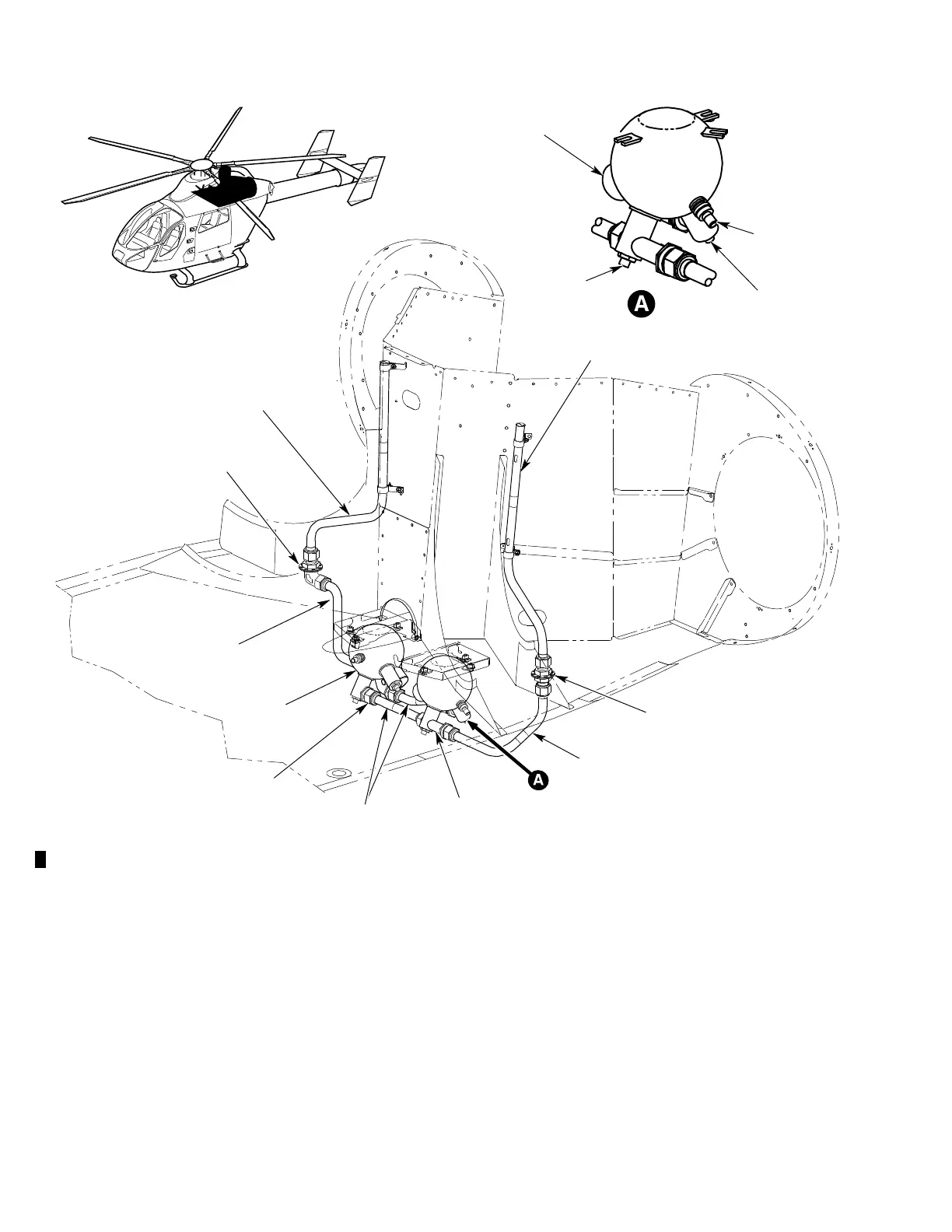

Figure 1. Fire Extinguisher System
