REF FUEL CELL STANDOFF
REF RIGHT KEEL BEAM
PART OF FUEL CELL
REF
FUSELAGE
30
30
4
G28-022-3
1. FUEL CELL
2. FUEL CELL ACCESS COVER
3. FUEL FILLER NECK GRAVITY FILL PORT
4. FUEL FILL PORT CHECK VALVE
5. FUEL SUMP DRAIN VALVE CONTROL ASSEMBLY
6. CENTRIFUGAL FUEL BOOSTER PUMP
7. FUEL SUPPLY CHECK VALVE
8. FORWARD FUEL GAUGING PROBE
9. AFT FUEL GAUGING PROBE
10. FUEL CELL FRANGIBLE VALVE
11. SINGLE VENT ROLLOVER VALVE
12. FUEL PRESS. SWITCH−INTERCONNECT TEE FITTING
13. CROSS−FEED SHUT−OFF VALVE
14. LH FUEL SHUT−OFF VALVE
15. RH FUEL SHUT−OFF VALVE
16. ENGINE DECK FRANGIBLE VALVE
17. DUAL VENT ROLLOVER VALVE
18. FUEL VENT SYSTEM
19. SCREW
20. WASHER
21. CLAMP
22. FUEL SUPPLY HOSE
23. BOLT
24. WASHER
25. O−RING
26. BOLT
27. WASHER
28. BOLT
29. WASHER
30. FUEL SUMP DRAIN VALVES

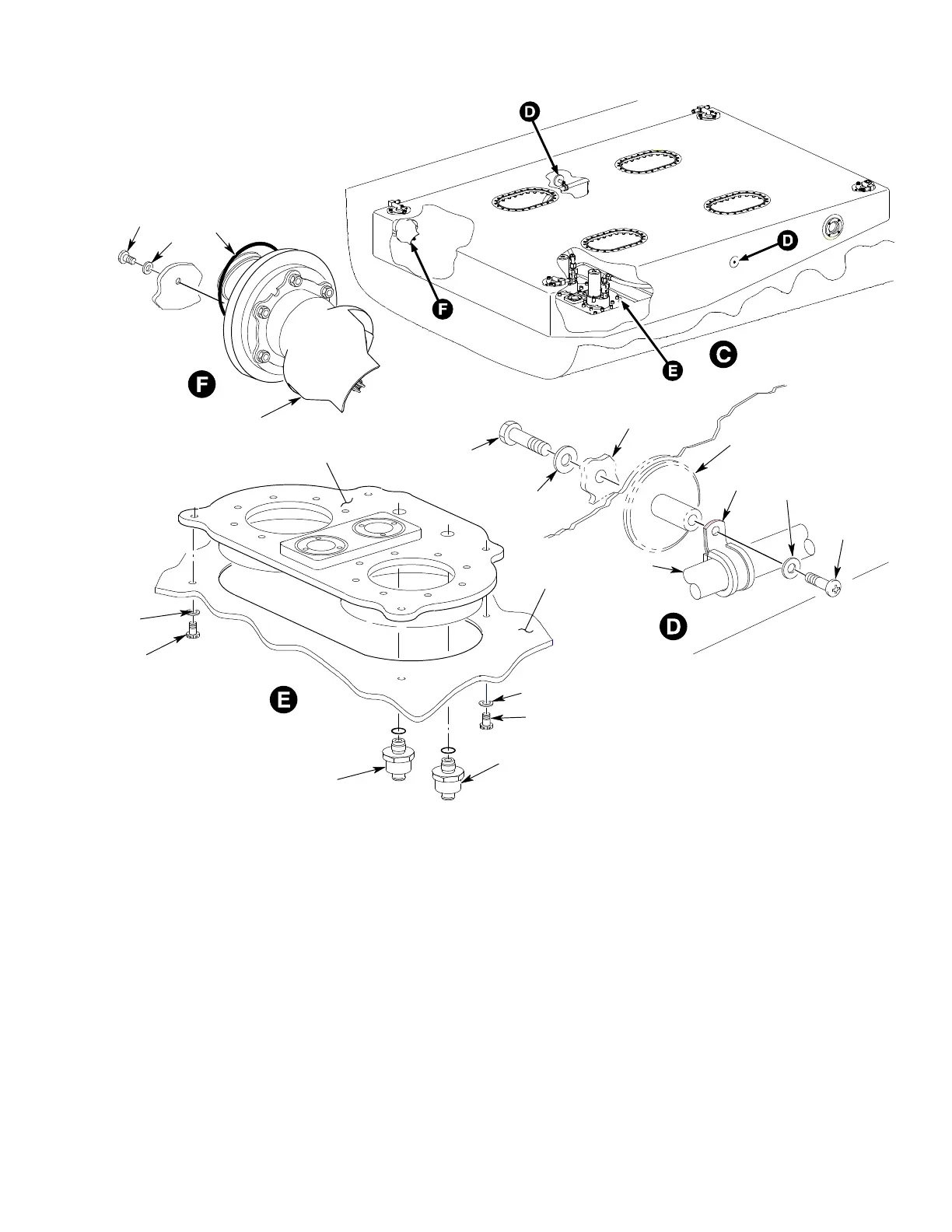

Figure 401. Fuel System (Sheet 3 of 3)
