MD Helicopters MD Explorer - Page 758

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 412
Revision 32
28-00-00
SERIAL NUMBER
33 AND SUBSEQUENT
2
3
4
5
6
9
1
15
8
13
14
12
8
7
10
16
17
BOTTOM VIEW
9G28-012C
18
19
8
21
8 (3 PL)
20 (3 PL)
8 (4 PL)
15 (4 PL)
22
11
10
10
902 CONFIG
900 CONFIG WITH
206E OR 207E ENGINES
23
24
25
26
27
28
1. FUEL HOSE
2. FUEL BOOSTER PUMP
3. FUEL SUPPLY CHECK VALVE (900 CONFIG PW206A)
4. PACKING (900 CONFIG)
5. REDUCER BUSHING (900 CONFIG)
6. PACKING (900 CONFIG)
7. BOLT
8. WASHER
9. PACKING
10. WIRE HARNESS (A111 LEFT, A112 RIGHT)
11. PACKING
12. BLEEDER/DRAIN PLUG
13. PACKING
14. BLEEDER/DRAIN PLUG
15. BOLT
16. SCREW
17. HEX HEAD SCREW
18. SUPPORT RING
19. LAMINATED SHIM
20. BOLT
21. BOLT
22. UNION (900 CONFIG WITH PW206E/PW207E)
23. CHECK VALVE
24. TEE
25. REDUCER
26. NUT
27. ADAPTER
28. TUBE

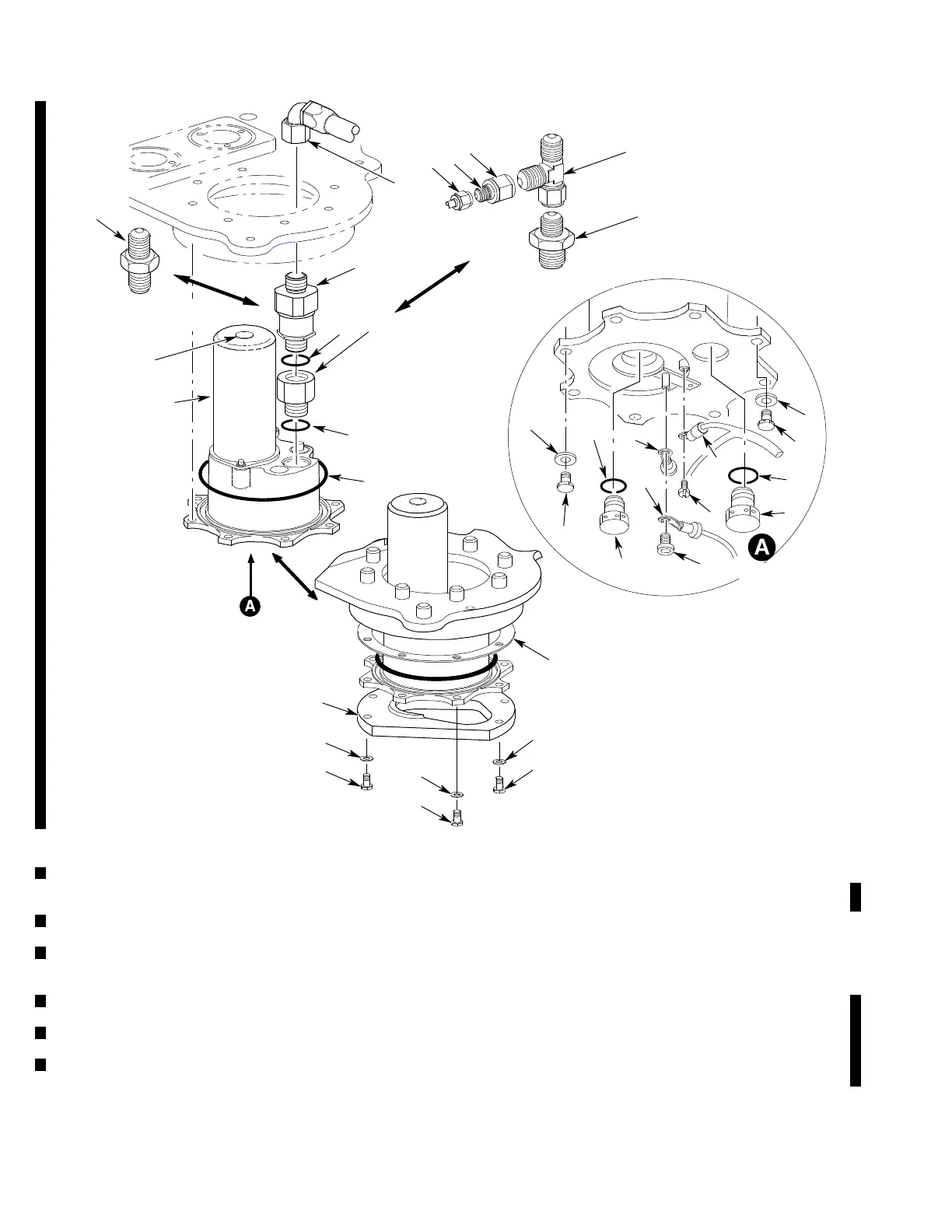

Figure 403. Centrifugal Fuel Booster Pump
