CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 418
Original
28-00-00
9G28-050
24 (2 PL)
2
4 (2 PL)
11 (2 PL)
12 (X2 2 PL)
13 (X2 2 PL)
5 (2 PL)
6 (2 PL)
7 (2 PL)
8 (2 PL)
9 (2 PL)
10 (2 PL)
3 (2 PL)
1
25 (2 PL)
26 (2 PL)
27 (X2 2 PL)
28 (2 PL)
23 (2 PL)
18 (2 PL)
19 (2 PL)
20 (2 PL)
21 (2 PL)
22 (2 PL)
14 (4 PL)
15 (4 PL)
16 (4 PL)
17 (4 PL)
1. FORWARD (LEFT SIDE) FUEL GAUGING PROBE
2. AFT (RIGHT SIDE) FUEL GAUGING PROBE
3. FUEL BOOSTER PUMP
4. HOSE ASSEMBLY, BOOSTER TO FUEL CELL OUTLET
5. TEE
6. PACKING
7. REDUCER
8. PACKING
9. REDUCER
10. TUBE NUT
11. BRACKET ASSEMBLY
12. BOLT
13. WASHER
14. CLAMP
15. BOLT
16. SPACER
17. WASHER
18. CHECK VALVE
19. PACKING
20. BUSHING
21. PACKING
22. JET PUMP
23. TUBE ASSEMBLY, BOOSTER TO JET PUMP
24. TUBE ASSEMBLY, JET PUMP TO OUTLET
25. CLAMP
26. BOLT
27. WASHER
28. NUT

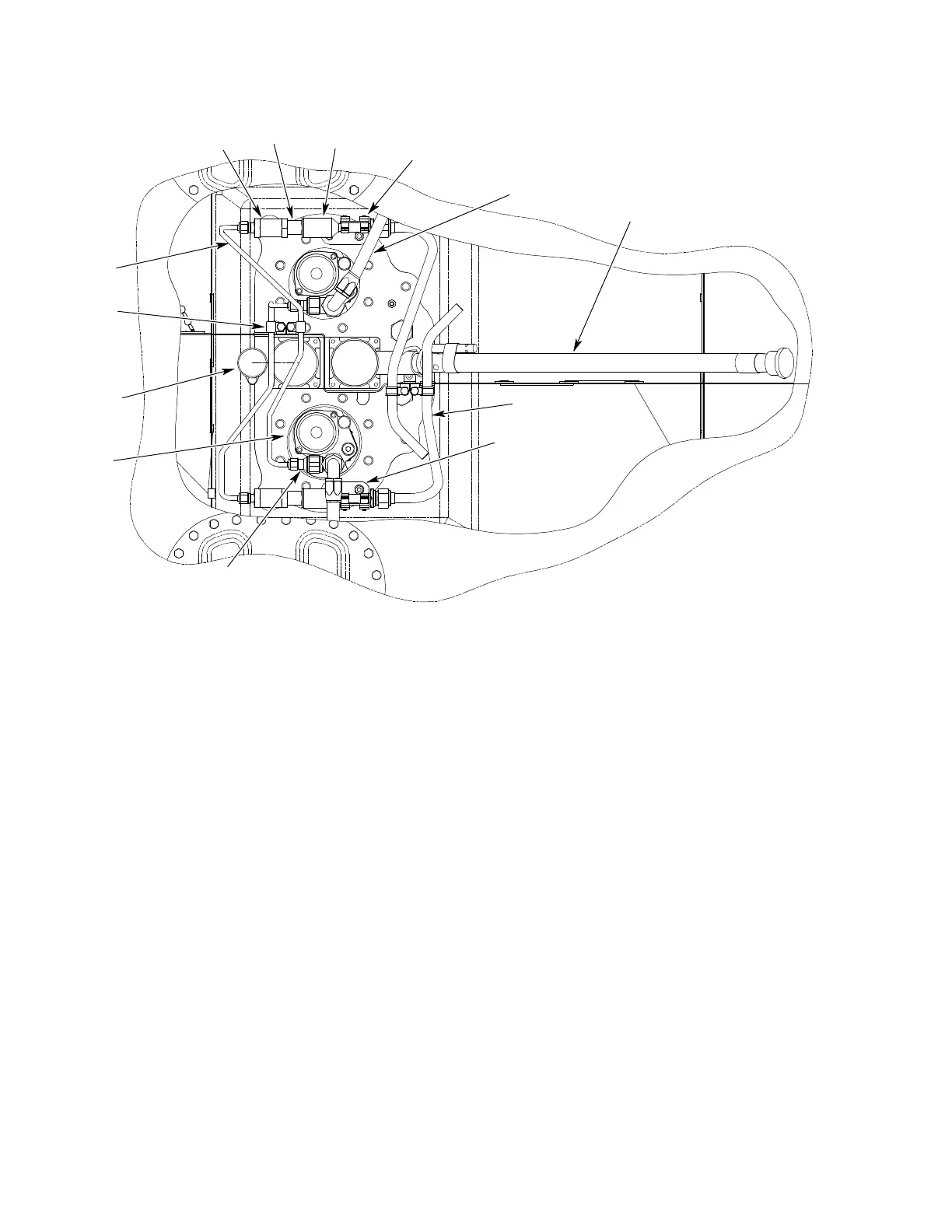

Figure 406. Fuel Pump, Gauging, and Transfer Systems (902 CONFIG)
