CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 216
Revision 36
29-00-00
1
4
3
10 (3 PL)
11
9 (3 PL)
(2 PL, TYPICAL)
6
7
8
5
2
16
15
17
18
17
12
14
13
19 (4 PL)
9g29−016A
1. HYDRAULIC MANIFOLD/RESERVOIR (REF. IPL,
29−00−00, FIG. 2)
2. BLEED VALVE
3. PACKING
4. PACKING
5. BYPASS (DELTA P) INDICATOR
6. PACKING
7. PACKING
8. PACKING
9. WASHER
10. SCREW
11. COVER
12. SOLENOID
13. FLANGE
14. GASKET
15. SPRING
16. PLUNGER
17. RETAINER
18. PACKING
19. SCREW

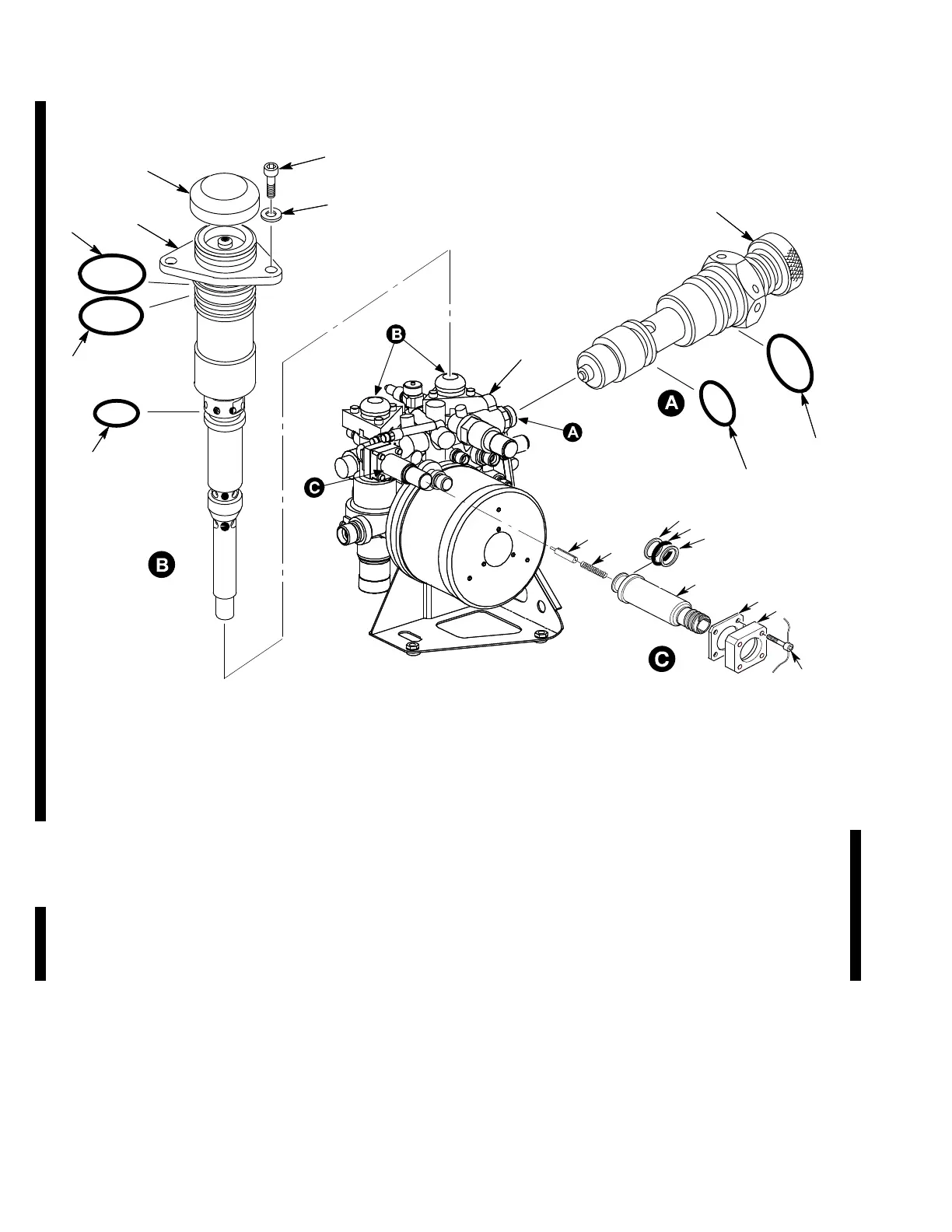

Figure 205. Removal and Installation of the Bleed Valve
