MD Helicopters MD Explorer - Page 972

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 804
Revision 35
32-00-00
BL
0.00
DIM AI
DIM AO
AREA A
DIM AI
DIM AO
AREA A
DIM AC DIM SS
DIM AC
DIM SS
9g32_03
3
REPAIRABLE AREA (TYPICAL)
OUTBOARD
INBOARD
DIM SS
DIM RO
DIM RA
MATING SURFACE OF
SADDLE ASSEMBLY
DIMENSION AC = 21.05 INCH (534.7 MM)
DIMENSION AI = 1.00 INCH (25.4 MM)
DIMENSION AO = 6.00 INCH (152.4 MM)
DIMENSION RA = 4.50 INCH (114.3 MM)
DIMENSION RO = 3.50 INCH (88.9 MM)
DIMENSION SS = 1.00 INCH (25.4 MM)

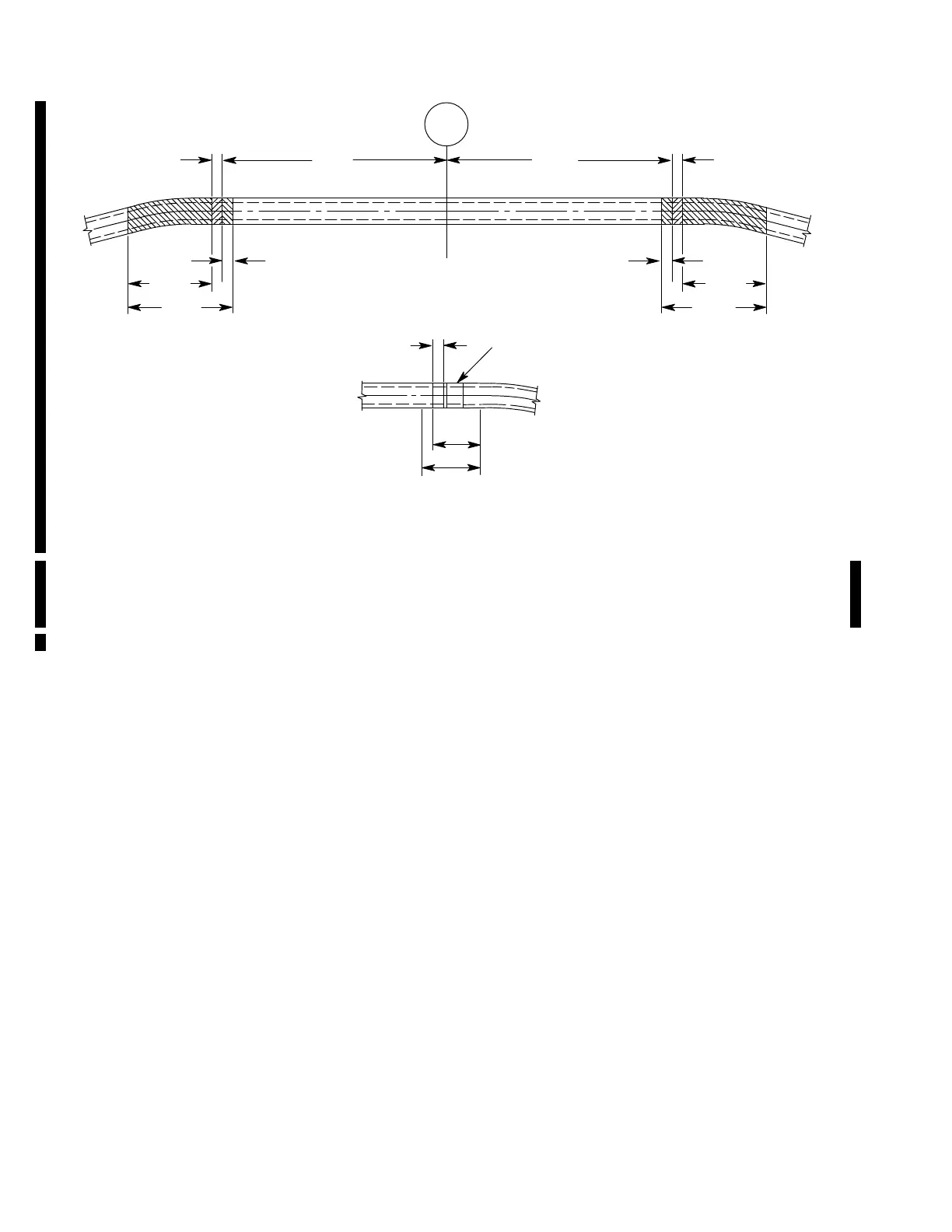

Figure 804. Repair of the Aft Crosstube
