CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 806
Revision 35
32-00-00
DIM SS
DIM FC
DIM FC
DIM SS
DIM FI
DIM FI
DIM FO
DIM FO
AREA F
AREA F
BL
0.00
9g32_03
4
REPAIRABLE AREA (TYPICAL)
OUTBOARD
INBOARD
DIM SS
DIM RO
DIM RA
MATING SURFACE OF
SADDLE ASSEMBLY
DIMENSION FC = 7.08 INCH (179.8 MM)
DIMENSION FI = 1.00 INCH (25.4 MM)
DIMENSION FO = 6.00 INCH (152.4 MM)
DIMENSION RA = 4.50 INCH (114.3 MM)
DIMENSION RO = 3.50 INCH (88.9 MM)
DIMENSION SS = 1.00 INCH (25.4 MM)

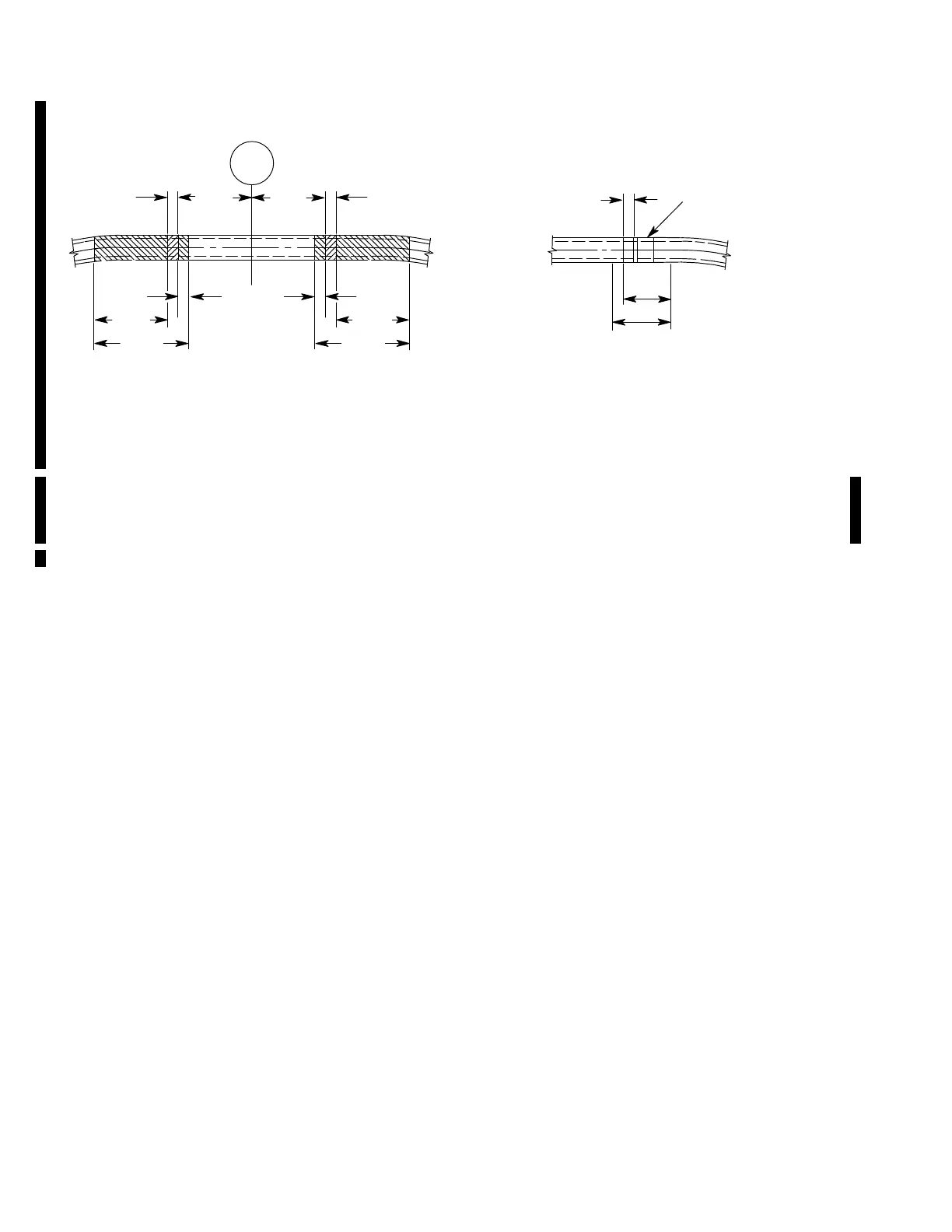

Figure 805. Repair of the Forward Crosstube
