MD Helicopters MD Explorer - Page 976

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 808
Revision 36
32-00-00
9G32−035
1. AFT CROSSTUBE (REF. IPL 32−00−00, FIG. 2)
2. NUT
3. FLAT WASHER
4. BOLT
5. COUNTERSUNK WASHER
6. FORWARD CROSSTUBE
7. NUT
8. FLAT WASHER
9. BOLT
10. COUNTERSUNK WASHER

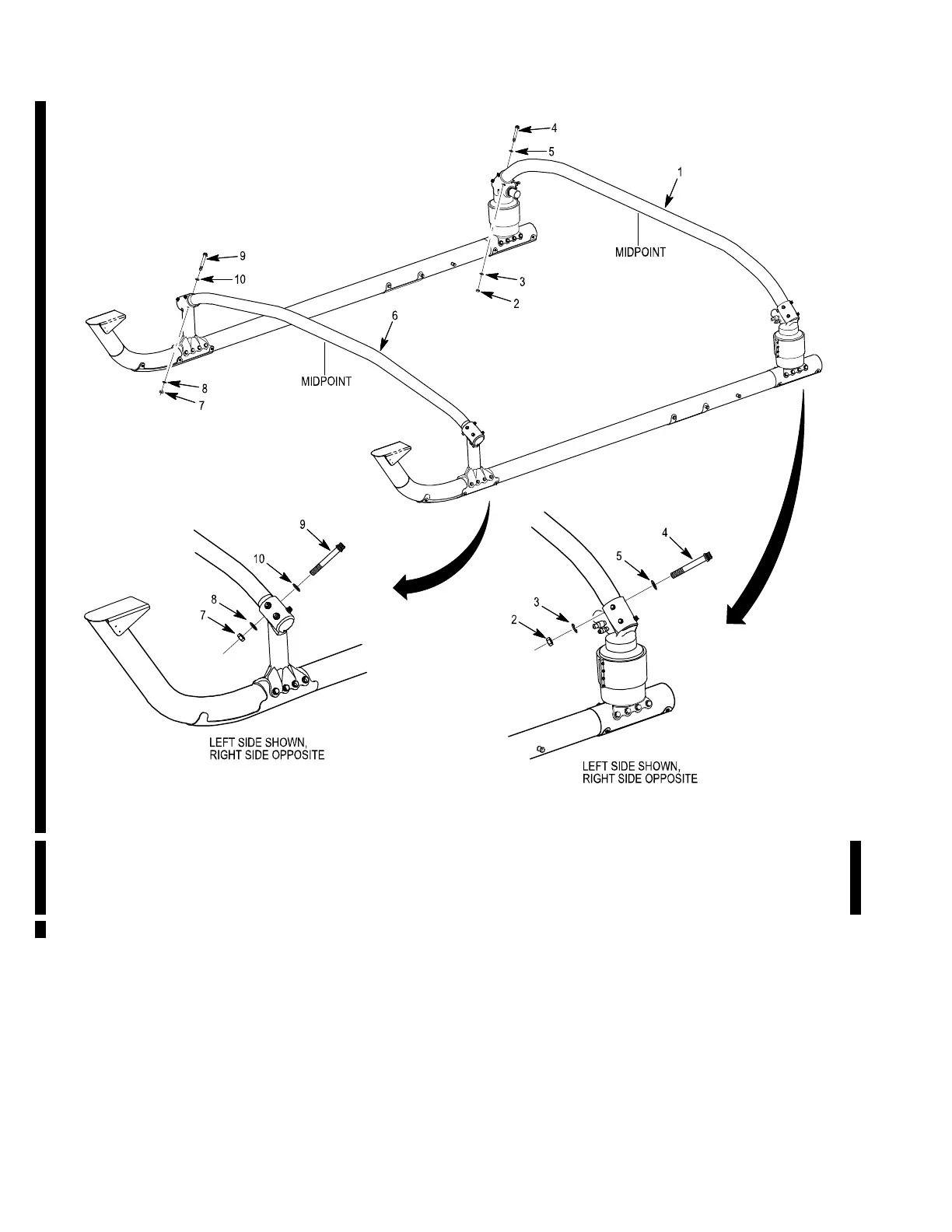

Figure 806. Insertion Points for the Aft and Forward Crosstubes
