4 General concept
The meter is based on below concept:

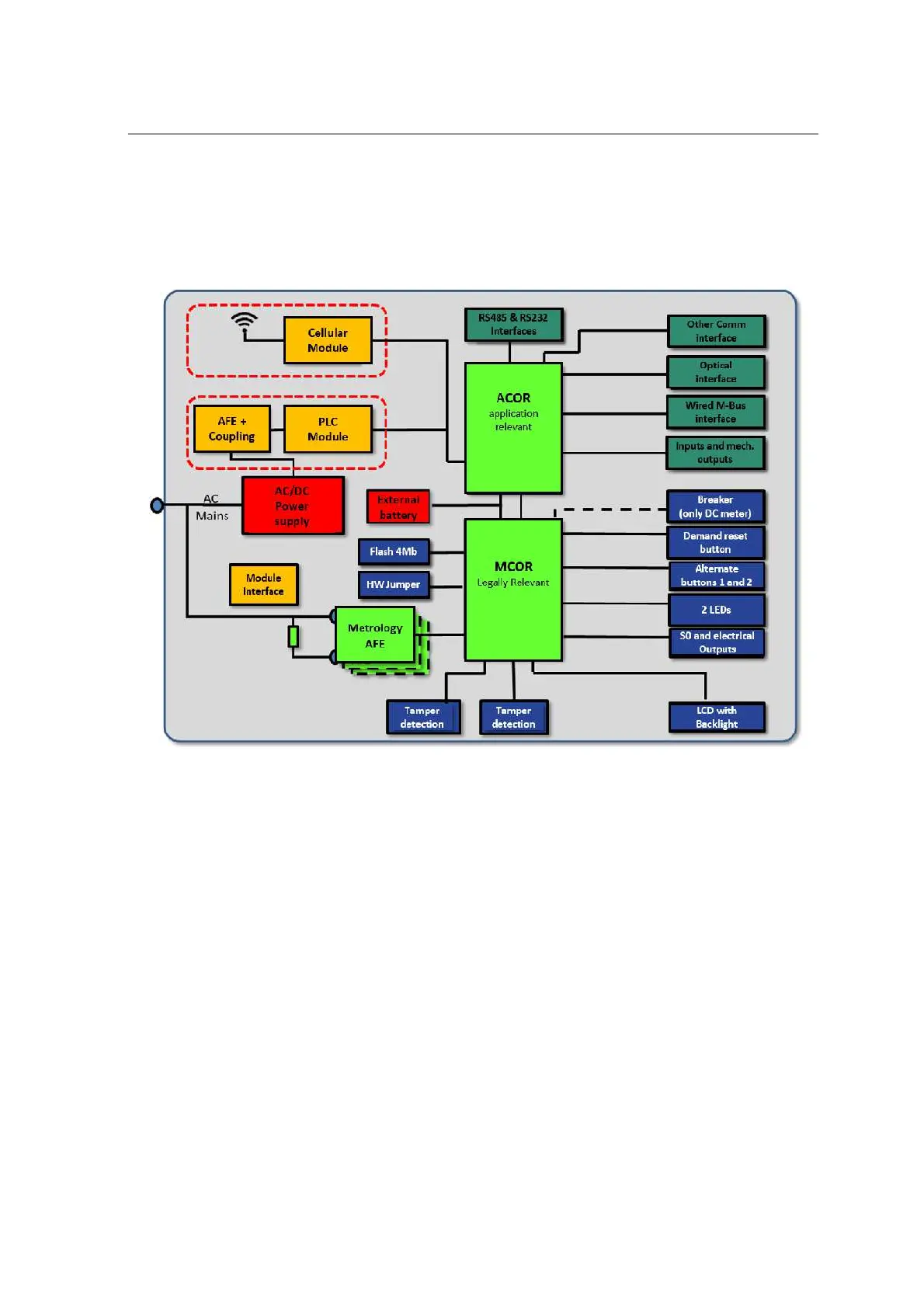

Figure 1: General concept of the meter
The meter firmware (FW) is split in two parts
- metrological relevant FW
- application relevant FW (remote or local download supported)
