MCS301 - 3ph meter Page 21 of 142
MCS301 meter - product Manual 1.25 MetCom Solutions GmbH
5.3.2 Main cover
Meter cover is made of non-transparent high quality self-extinguishing UV stabilized polycarbonate
that can be recycled. The MCS301 meter is equipped with a meter main cover opening detector.

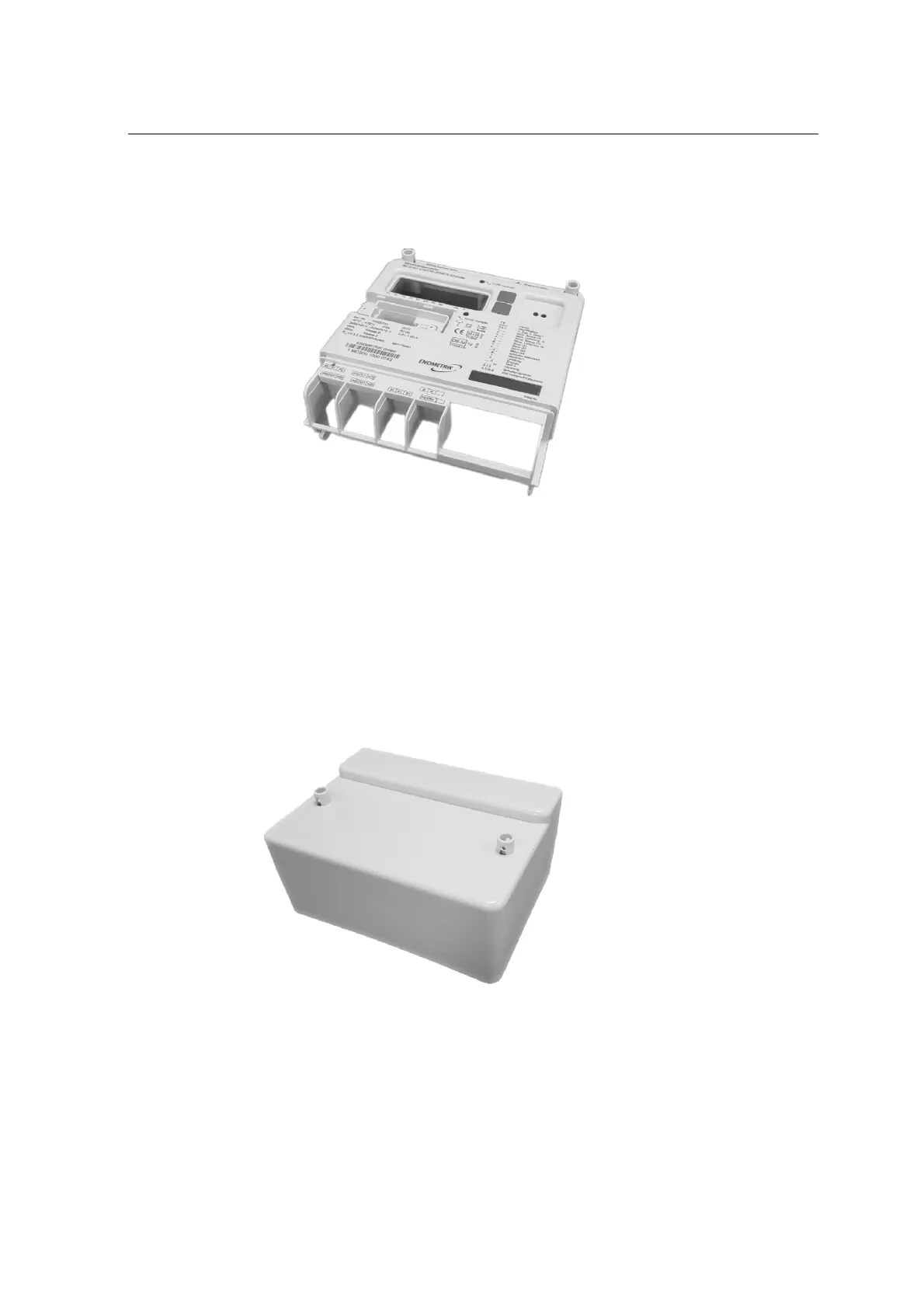

Figure 6: main cover of the meter
5.3.3 Terminal cover
The meter provides different terminal covers:
• Standard terminal cover
The standard terminal cover covers the meter terminal block. It’s made of
o Non transparent, self-extinguished UV stabilized polycarbonate or
o transparent, self-extinguished UV stabilized polycarbonate
Figure 7: Standard terminal cover
