MCS301 - 3ph meter Page 25 of 142
MCS301 meter - product Manual 1.25 MetCom Solutions GmbH

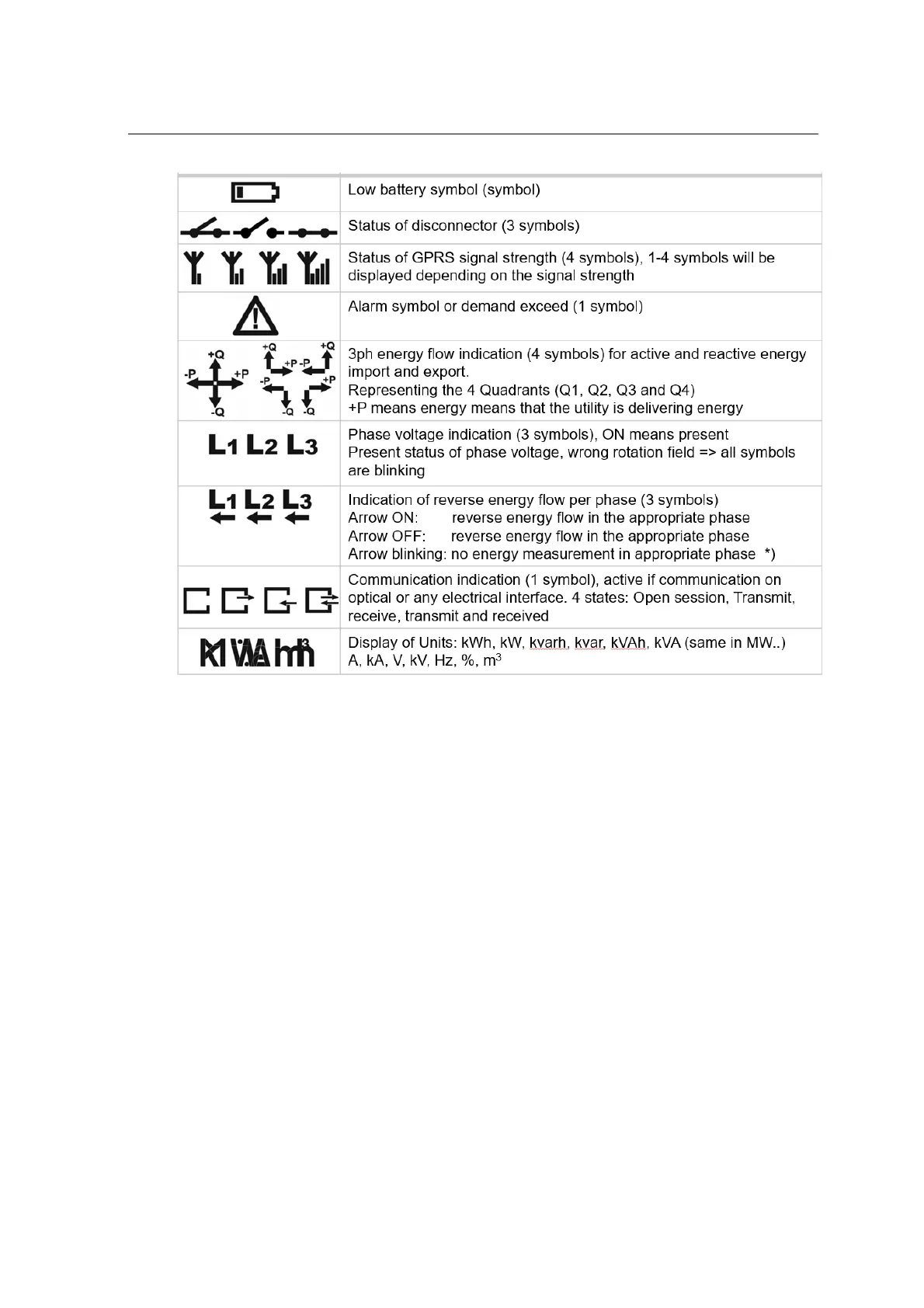

Table 1: list of display items
*) available with MCOR FW 1-0:01.01.25
GPRS signal strength indication (COM200)
Up to 4 signal strength symbols are used on the LCD to check a good reception:
• >= -95dBm no connection
• -86 dBm … -95 dBm => 1 bar on the LCD
• -76 dBm … -85 dBm => 2 bar on the LCD
• -66 dBm … -75 dBm => 3 bar on the LCD
• >= -65 dBm => 4 bar on the LCD
6.1.1 Back lightened display
The display can optionally be back-lightened to be readable under dark reading conditions.
The back lightened display will be activated for a configurable time (5 ... 255s) by pressing
the alternate or the demand reset button.
This feature will be available even if the meter is not connected to the main power.
