MCS301 - 3ph meter Page 31 of 142
MCS301 meter - product Manual 1.25 MetCom Solutions GmbH
6.5.3 Reset Mode (R-button menu)
The first value displayed from the menu list is the R-button menu entitled "tESt". Every time
the alternate button is pressed briefly (<2s) again, any other menu options available will be
displayed, e.g. the connection to the AMM system, called “CELL_connect” or the M-Bus
installation mode, called "Slave_InStALL ". To select a menu option, the alternate button
must be held down for longer than 2s. The final value in this display mode is the end-of-list
identifier, which is designated in the display's value range by the word "End".
If the time limit after the last touch on the button has been reached (this can be
parameterized in a range from 1min to 2h) or the alternate button has been kept depressed
for not less than 5 s, the meter will automatically switch over to the operating display.
6.5.3.1 High resolution mode for test purposes (Menu option „tESt“)
In the "Test" operating mode, the display will show the same data as in the scroll mode, but
the energy register are displayed with a higher resolution (up to 4 decimals). The “Test”
mode is activated by pressing the alternate button during the text „tESt“ is displayed on the
LCD. After successful activation on the display the text “Active tESt” is shown for about 2s.
Test mode is quit via the following events:
- Command via comms interface (optical or electrical)
- after activation of a configurable time period (1 … 60min)
- [A]-button pressed >5s
6.5.3.2 Activation of Push Mode (Menu option „Cell connect“)
After activation of the Push Mode the meter automatically pushes a predefined set of data
through the communication module to the HES. On the display the message “done” appears
if the push was activated. More details are described in chapter 27.2.
6.5.3.3 Activation of M-Bus installation (Menu option „Slave_InSTALL“)
After activation of the M-Bus installation Mode, the meter automaticallytries to connect to the
next M-Bus slave meter. On the display the message “done” appears if the push was was
activated. More details are described in chapter 26.7.
6.6 Optical display sensor
In case the meter is installed in a box without having access to the push button of the meter,
the display can be activated by an optical sensor, which has the same functionality as the
push the upper blue push button.
The optical sensor reacts on a light which is going to the receive LED of the optical interface.

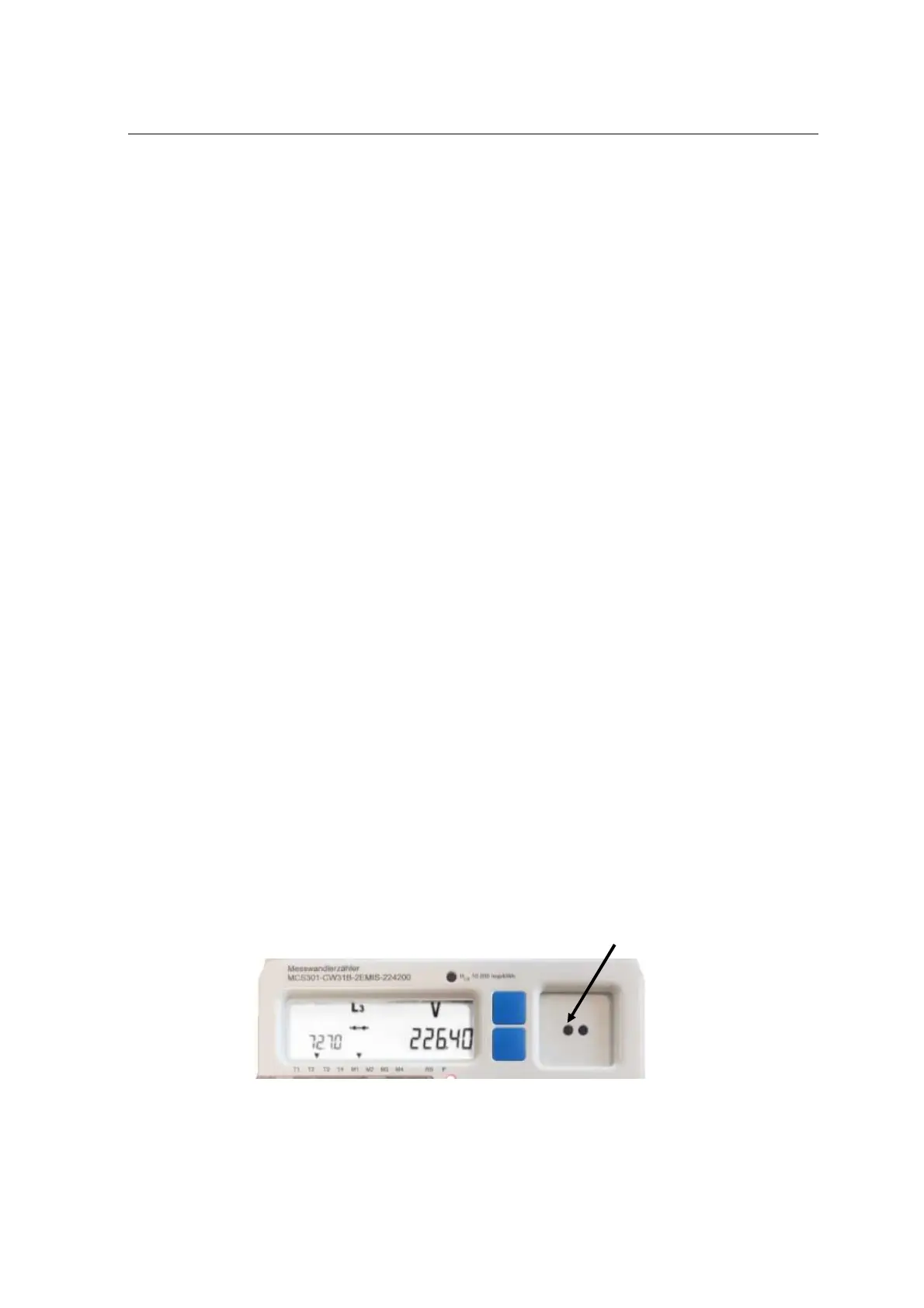

Figure 14: optical interface with optical sensor (ACOR FW 02.02.11)
