MCS301 - 3ph meter Page 24 of 142
MCS301 meter - product Manual 1.25 MetCom Solutions GmbH
6 Display Control
6.1 Display
The LCD of the meter should have the following format:
• LCD size: 80 x 24,5 mm
• Digit size: 8 x 4,0 mm
• Digit size (OBIS code): 5,5 x 2,8 mm
The digits for the LC display of the MCS301 you will find in Fig 15:

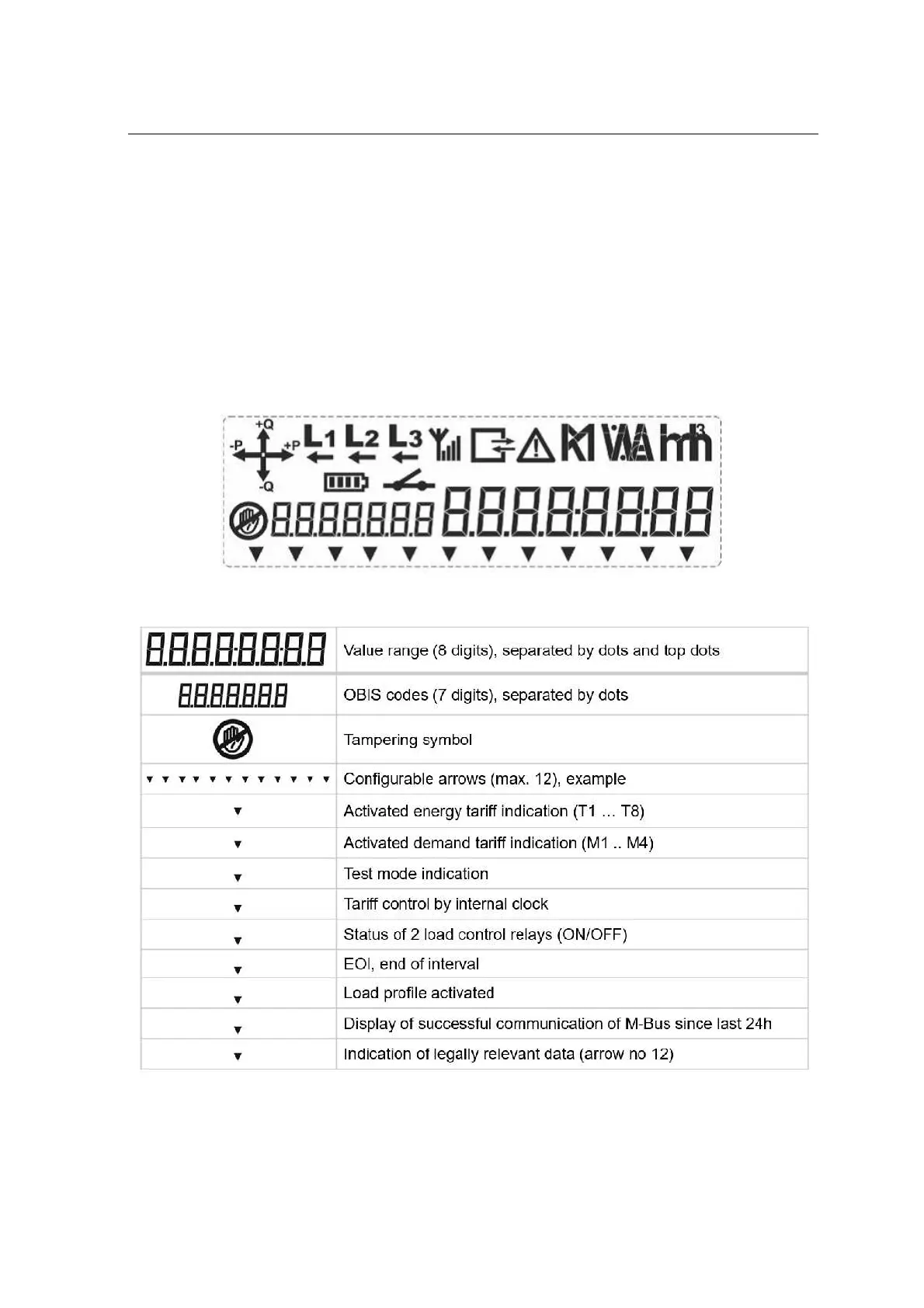

Figure 12: display of the meter
