MIMAKI CFL-605RT - Adjusting the Rotation Angle (θ)

6-9
1
1
1
1
Troubleshooting
6
Adjusting the Tools

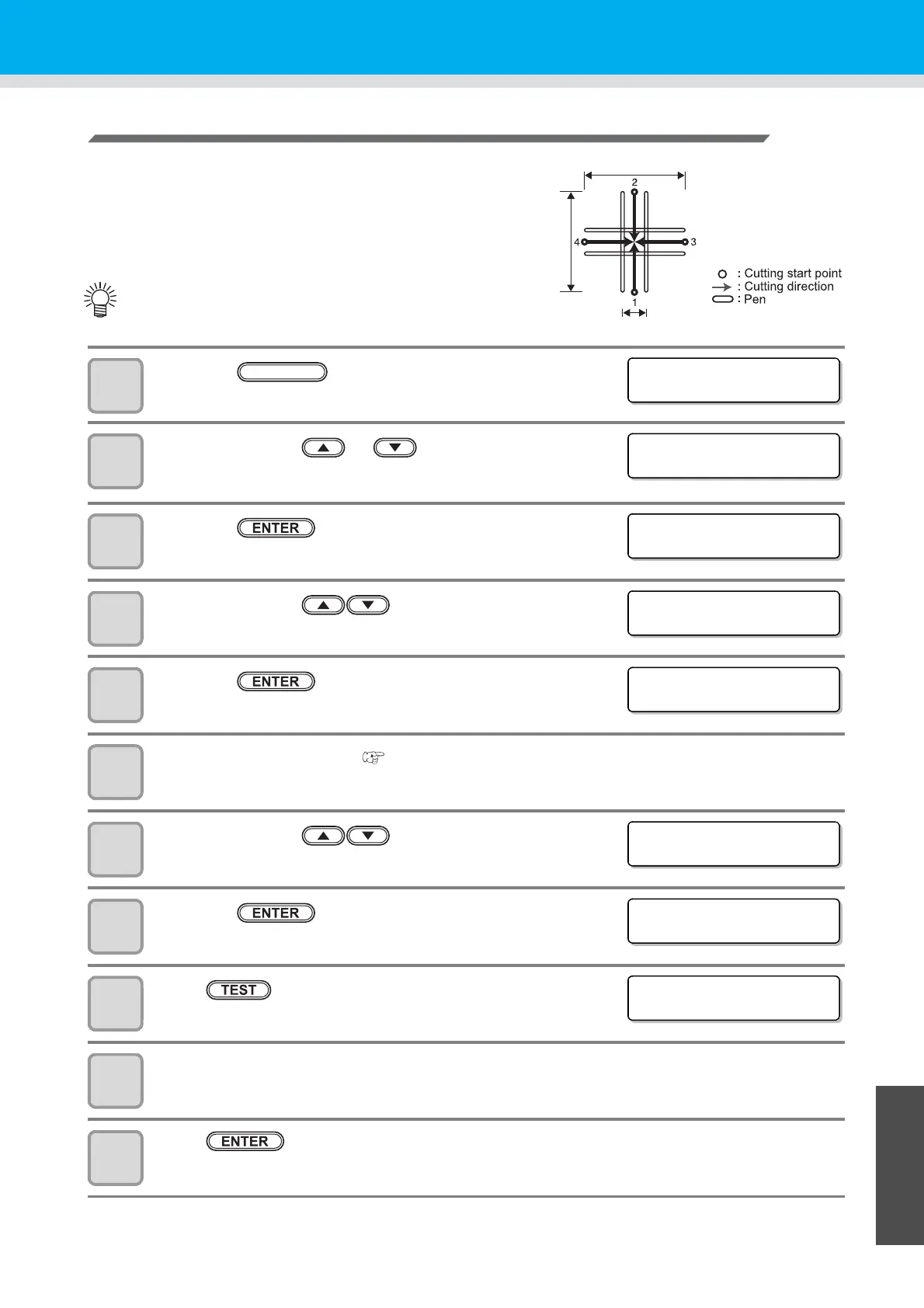

Adjusting the  Angle
Adjust the angle of rotation by comparing a test pattern drawn
by the pen with a test pattern drawn by the cutter or roller.
1
Press the key in the local mode.
2
Press the jog key or to select [TOOL
ADJUST] .
3
Press the key.
4
Press the jog key to select tool.
• Set value: REC.CUTTER1~2, CUTTER, ROLLER1~3
5
Press the key.
6
Attach the selected tool ( P.2-22).
7
Press the jog key to select [ ADJUST].
8
Press the key.
9
Press key.
10
Press the jog keys to move the head to the drawing position.
11
Press to start drawing the test pattern.
• Values in parentheses ( ) in the diagram show the sizes
of Roller.
• First, mount a pen in Unit A.
30 (200)mm
30 (200)mm
Normal
test pattern
2 (2)mm
<FUNCT ION>


SET UP [ ENT ]
FUNCTION
<FUNCT ION>


TOOL ADJUST [ ENT ]
<TOOL SELTECT>
TOOL : B : REC . CUTTER1
<TOOL SELTECT>
TOOL : B : REC . CUTTER1
<FUNCT ION>
MARK DETECT [ ENT ]
<REC . CUTTER1 ADJ >


 ADJUST [ ENT ]
<  ADJUST>
 :0.00º
<TEST PATTERN>
DRAW: [ ENT ] POS : [ JOG ]
