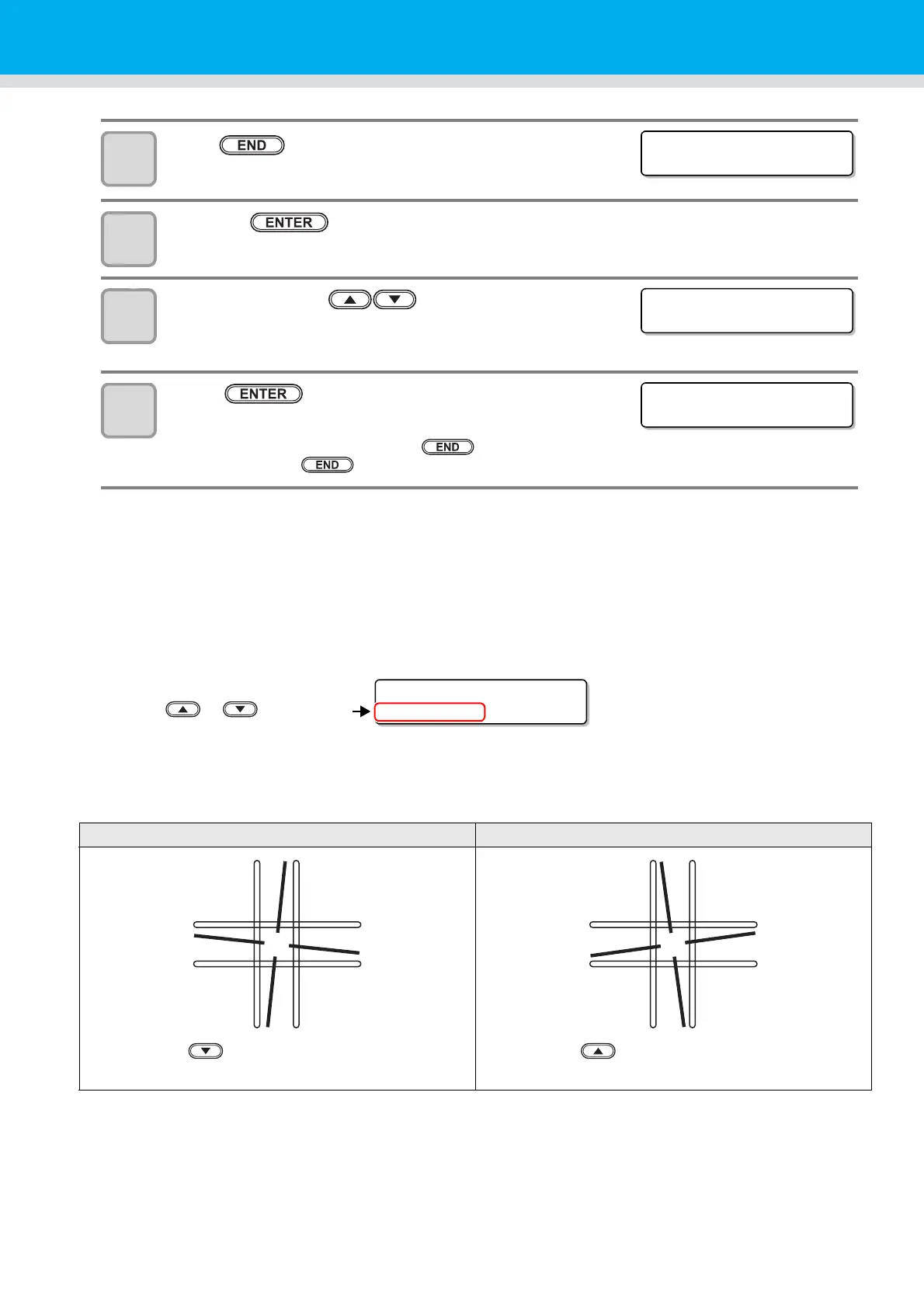

MIMAKI CFL-605RT - θ Angle Adjustment Details

6-10
12
Press key to return to the selection of the
adjustment value.
13
Press the key.
14
Adjust by pressing .
Set values:- 45.00º ~ + 45.00º
• For details, see P.6-10 “Adjusting the q Angle”.
15
Press key and determine the adjustment
value.
• When cancel the registration, press .
• When quit, press in the display of step 12.
Adjusting the  Angle
The  angle can be adjusted on the screen below.
(1) Check the displacement between the patterns drawn with the pen and cutter (roller).
(2) Make the adjustment.
Rotated clockwise Rotated counterclockwise
<CENTER ADJUST>
CENTER A : 1 . 0 0mm
<  ADJUST>
 :0.00º
<  ADJUST>
 :1.00º
<CENTER ADJUST>
CENTER A : 0 . 0 0mm
<  ADJUST>
 :0.00º
Press or to adjust.
Press to decrease the CUTTER  value.
Press to increase the CUTTER  value.
