MIMAKI CFL-605RT - Offset Adjustment Procedure

6-8
13
Press the jog key to select X or Y.
14
Press the key.
15
Press to adjust.
CUTTER X(ROLLER X): -20.0 ~ +20.0
CUTTER Y(ROLLER Y): -20.0 ~ +20.0
• For details, see P.6-8 “Adjusting the Offsets”.
16
Press key to determine the adjustment
value.
• When cancel the registration, press .
• When adjust the other pattern, press and display the screen to adjust and repeat steps 12
or later.
• When quit, press in the display of step 12.

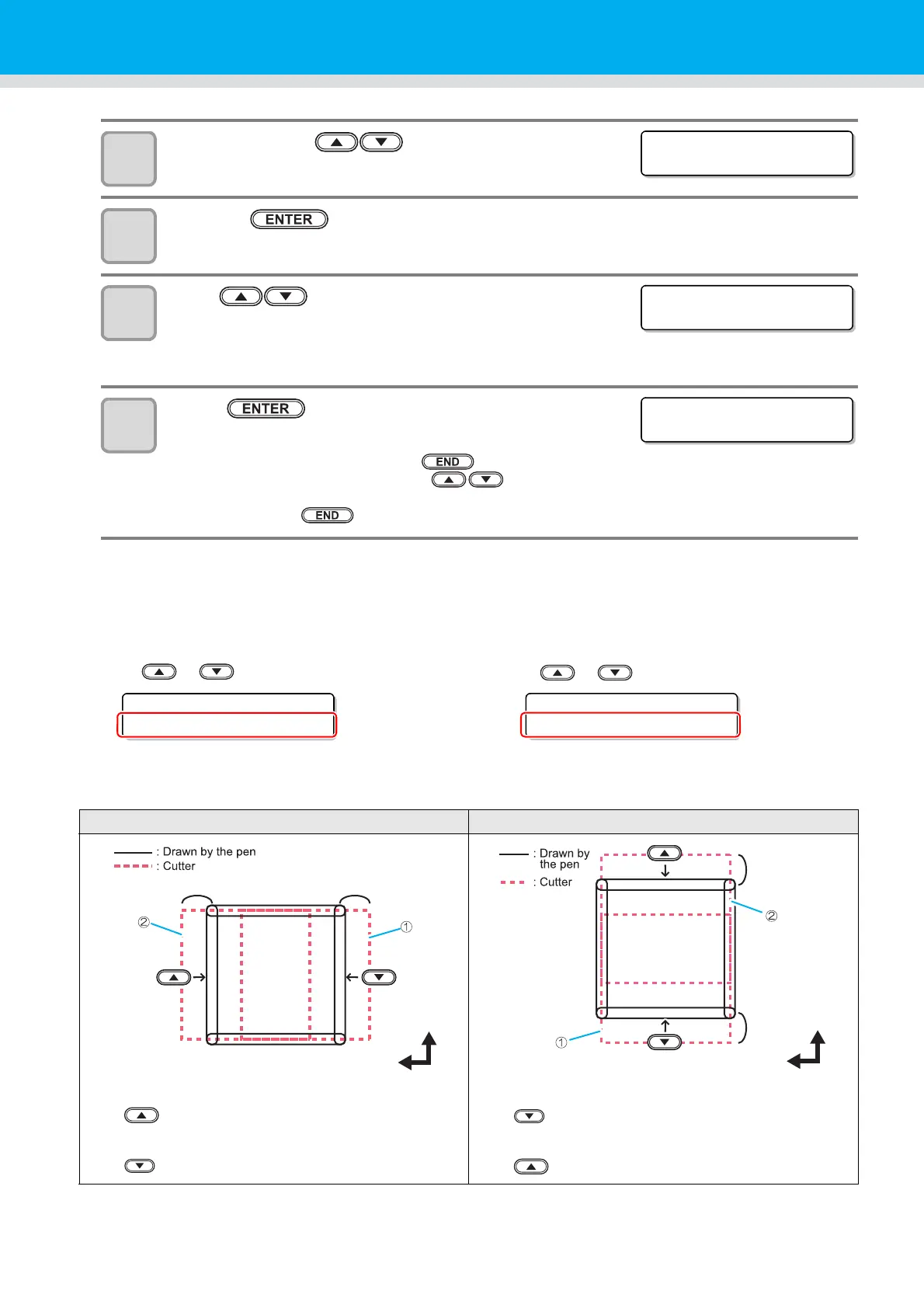

Adjusting the Offsets
The offsets can be adjusted on the screen below.
(1) Measure the displacement between the patterns drawn with the pen and cutter (roller).
(2) Make the adjustment.
Displaced horizontally from the operation panel Displaced vertically from the operation panel
<OFFSET ADJUST>


OFFSET Y : 0 . 0 0mm
<OFFSET ADJUST>
OFFSET Y : 1 . 0 0mm
<OFFSET ADJUST>


OFFSET X : 0 . 0 0mm
<OFFSET ADJUST>
OFFSET X : 0 . 0 0mm
Adjusting Pattern X
Distance from pen to cutter (roller) with respect to the X axis.
Press or to adjust. (0.05 mm pitch)
<OFFSET ADJUST>
OFFSET Y : 0 . 0 0mm
Adjusting Pattern Y
Adjustment to check whether the tool is tilted.
Press
or to adjust. (0.05 mm pitch)
Y-axis
X-axis
XmmX’mm
When a drawing by the cutter is displaced to the right
(dotted line 1)
Press to set the Set value = (Current indicated value) + (Y mm).
When a drawing by the cutter is displaced to the left
(dotted line 2)
Press to set the Set value = (Current indicated value) - (Y' mm).
Ymm
Y’mm
Y-axis
X-axis
When a drawing by the cutter is displaced downward
(dotted line 1)
Press to set the Set value = (Current indicated value) + (X mm).
When a drawing by the cutter is displaced upward
(dotted line 2)
Press to set the Set value = (Current indicated value) - (X' mm).
