Mindray M7T User Manual

13-26 Probes and Biopsy
13.2.4 Needle-guided Bracket Inspection and
Installation
Inspection of the Needle-guided Bracket
Be sure to perform inspections before and after use of the needle-guided bracket. If an
abnormality is found on the needle-guided bracket, immediately stop using it and contact
MINDRAY Customer Service Department or sales representative.
1. Sterilize the needle-guided bracket before and after use.
2. Confirm that the needle-guided bracket is free of damage, deformation, stripping, and
malfunction, loose or missing parts.
3. Confirm that the needle-guided bracket is securely mounted in the correct position.

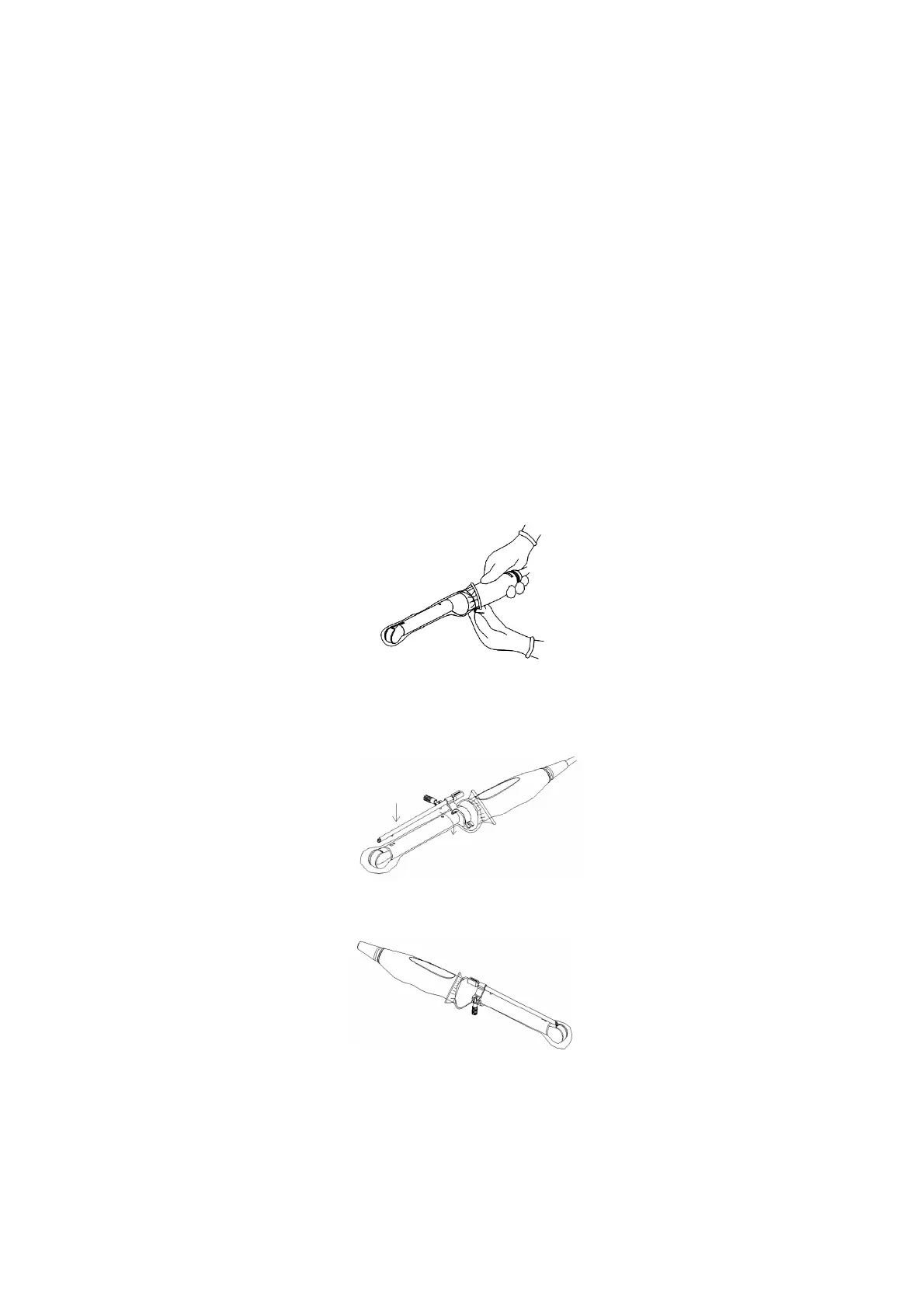

Installing the Needle-guided Bracket
 NGB-004
1. Put on the sterile probe sheath.
2. Open the retaining clamp, align the needle-guided bracket with the probe to locate the
locating bulge on the needle guide to the locating grooves on the probe, and then turn
the retaining clamp to match it with the probe (See the figure below).
3. When the retaining clamp is turned to the right position, the locking nut will lock the
retaining clamp and the needle-guided bracket is then mounted to the right position.
 NGB-005
(1) Inosculate the locating groove on the clamp with the two raised edges on the
probe head and aligning the locating pit of the clamp to the convex point on the
probe head.
(2) Turn the grip knob at the tail of the needle-guided bracket tightly.
