Probes and Biopsy 13-35

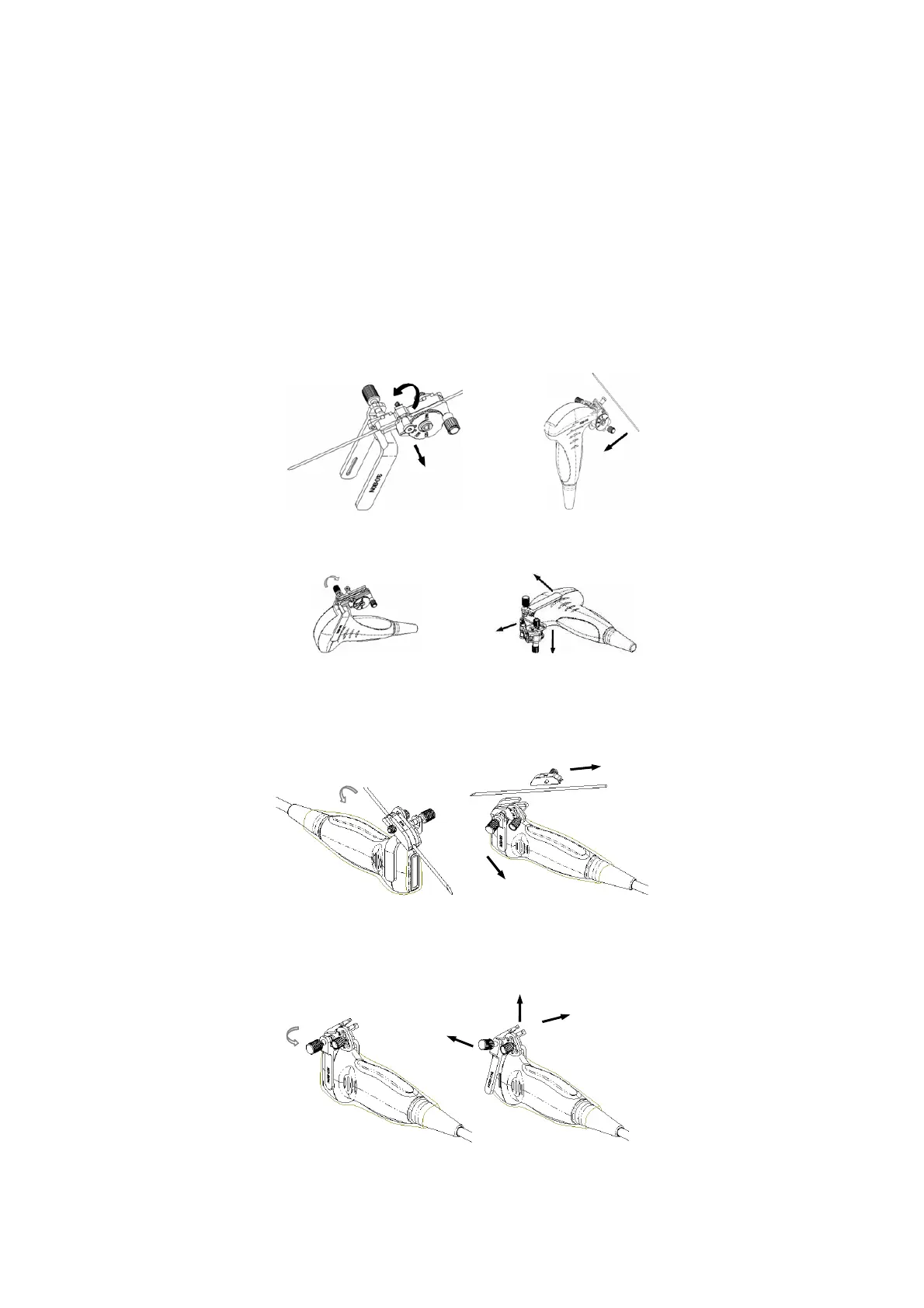

 NGB-010
(1) Remove the guiding block slightly along the direction of the needle’s tail, and
separate the residual part of the needle-guide bracket and the probe from the
needle.
(2) Remove the support of needle-guided bracket from the probe.
 NGB-011
Hold the probe and the needle-guided bracket, and then open the grip knob of the
needle-guided bracket.
 NGB-015
(1) Pull the lock pin and open up the V-shaped cover to expose the needle.
(2) Separate the bracket and the transducer from the needle.
(3) Screw the pinch nut to release the needle-guided bracket.
(4) Separate the bracket and the transducer.
 NGB-016
(1) Screw out the nut on the guiding block to release the biopsy needle.
(2) Remove the guiding block in the direction of the needle tail, and then remove the
needle.
(3) Screw the pinch nut of the bracket to release the needle-guided bracket.
(4) Separate the probe and the needle-guided bracket.
