A-2 Wireless LAN
A.1 To Use the W-LAN Function
The system can be configured with wireless net adapter, so as to assist information
communication.
1. Connect the wireless LAN adapter using the USB port.
2. Local TCP/IP setting in preset:
a) Press <Setup> to enter the Setup menu.

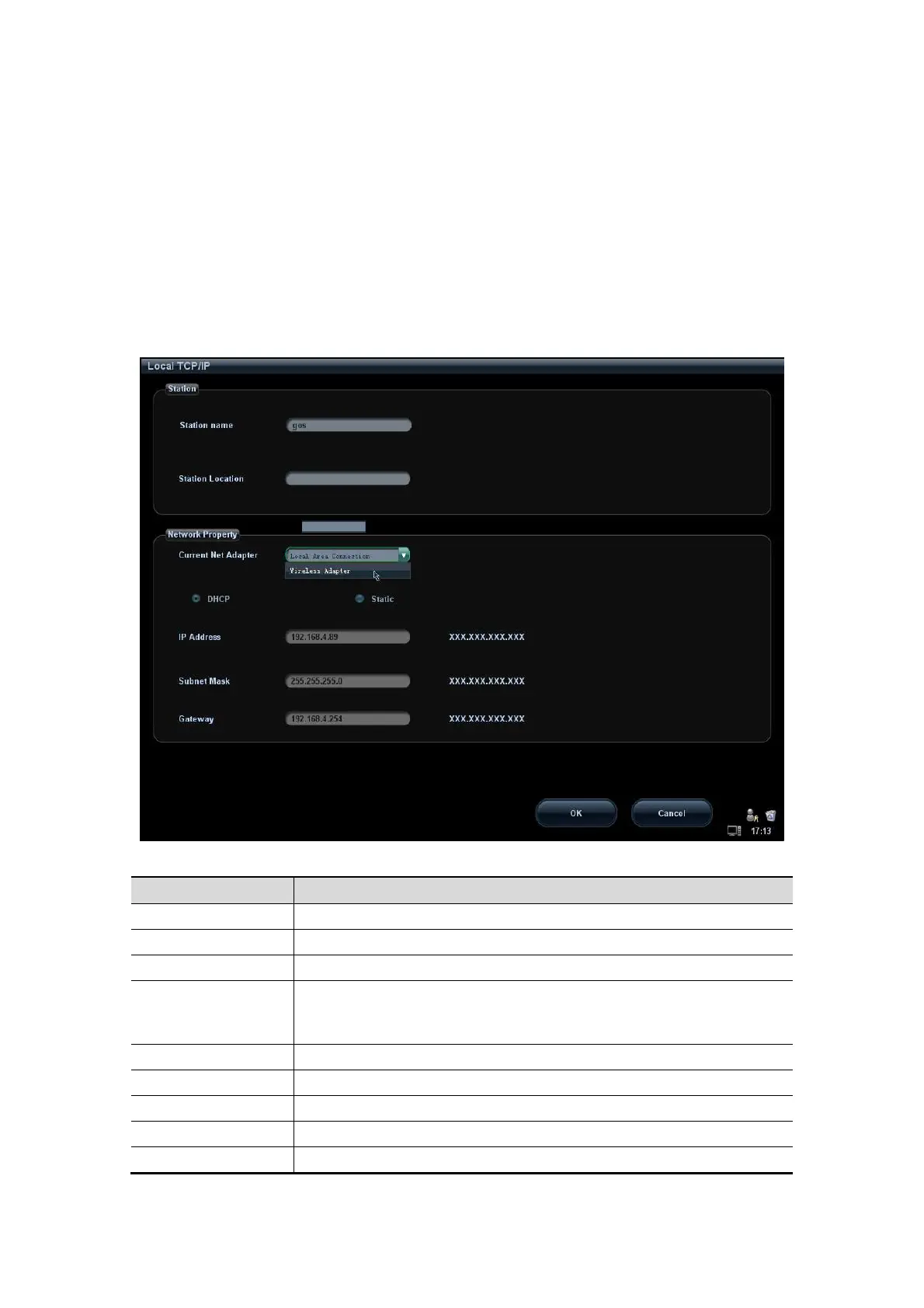

b) Move the cursor onto [Network Preset], select [Local TCP/IP] to open the
screen, as shown in the figure below:
c) Local TCP/ IP preset items are described as follows:
Station Name Name of the ultrasound system.
Station Location Location or department where the system is placed.
Current Net Adapter
To select net adapter type.
DHCP/ Static
If “DHCP” is selected, IP address will be automatically obtained
from DNS server; if “Static” is selected (using static IP address),
you need to enter the IP address.
IP Address IP address of the system.
Subnet Mask Used to set different network segment.
Gateway Used to set the gateway IP.
OK Click to confirm parameter setting.
Cancel Click to cancel parameter preset.
