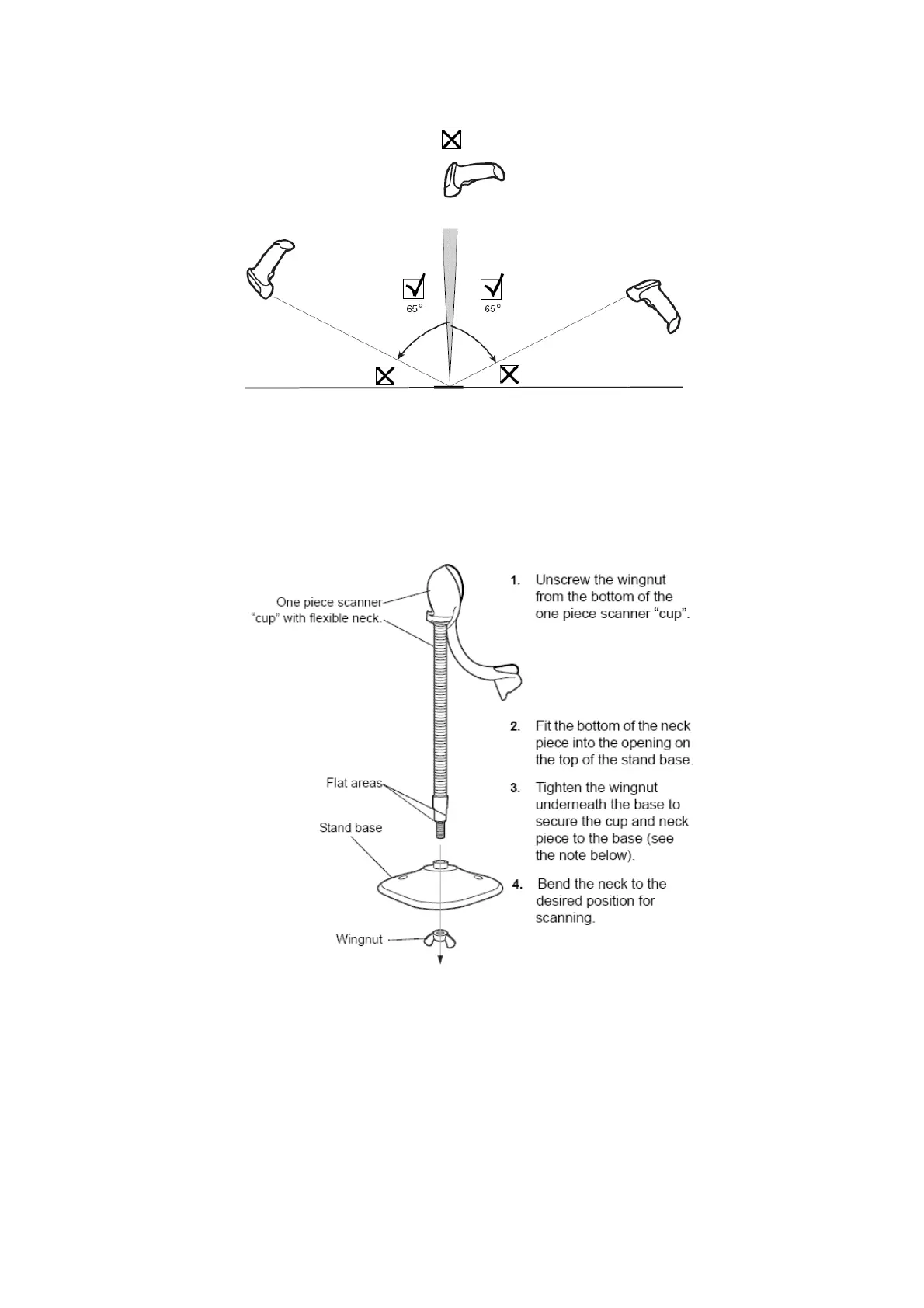

C-6 Barcode Reader
C.1.5
Scanning in Hands-
Free Mode
C.1.5.1
Assembling the Intelli
st
and
NOTE Before tighteni
ng the wingnut under t
he base, ensure that the f
lat areas on the
flexible neck fit secure
ly in the groov
es in the base.
C.1.5.2
Mounting the St
a
nd (optional)
Y
ou can attach th
e base of the reader’s stand to
a flat surface us
ing two screws or
double-sided t
ape (not pro
vided).
345
347
